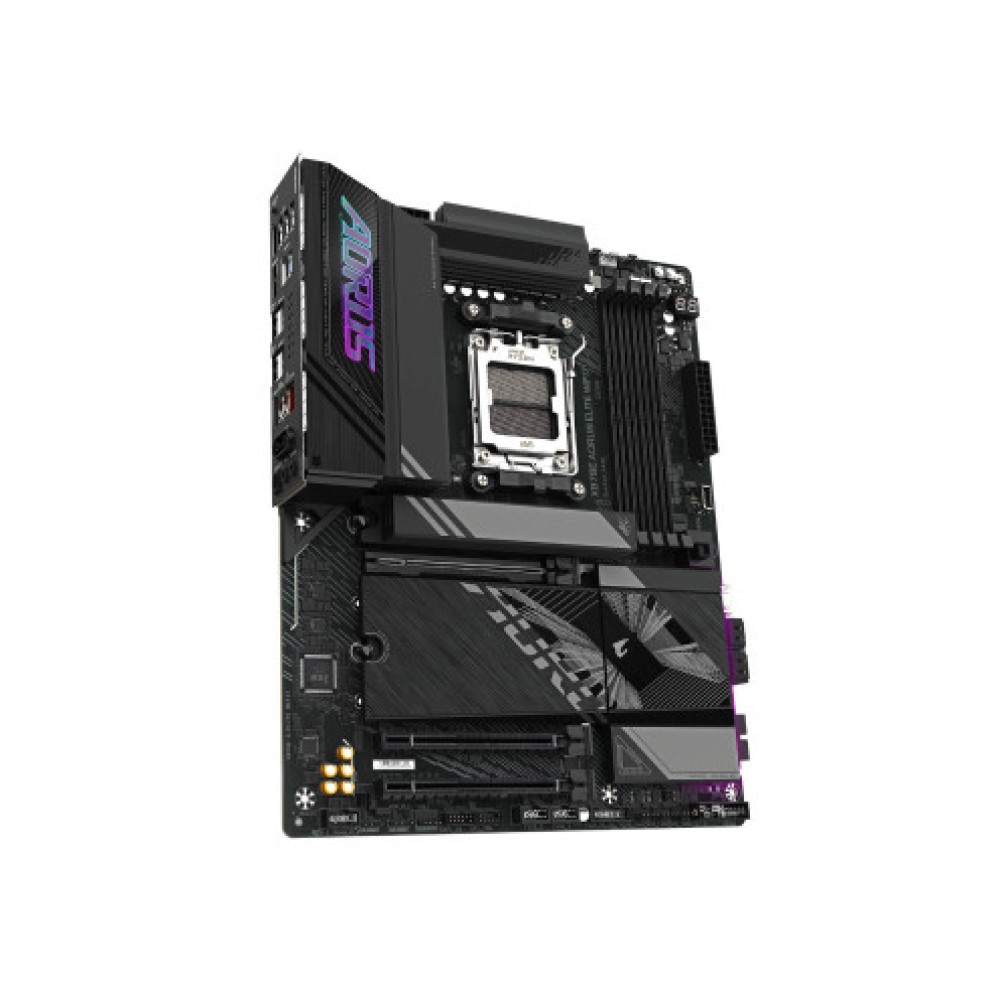

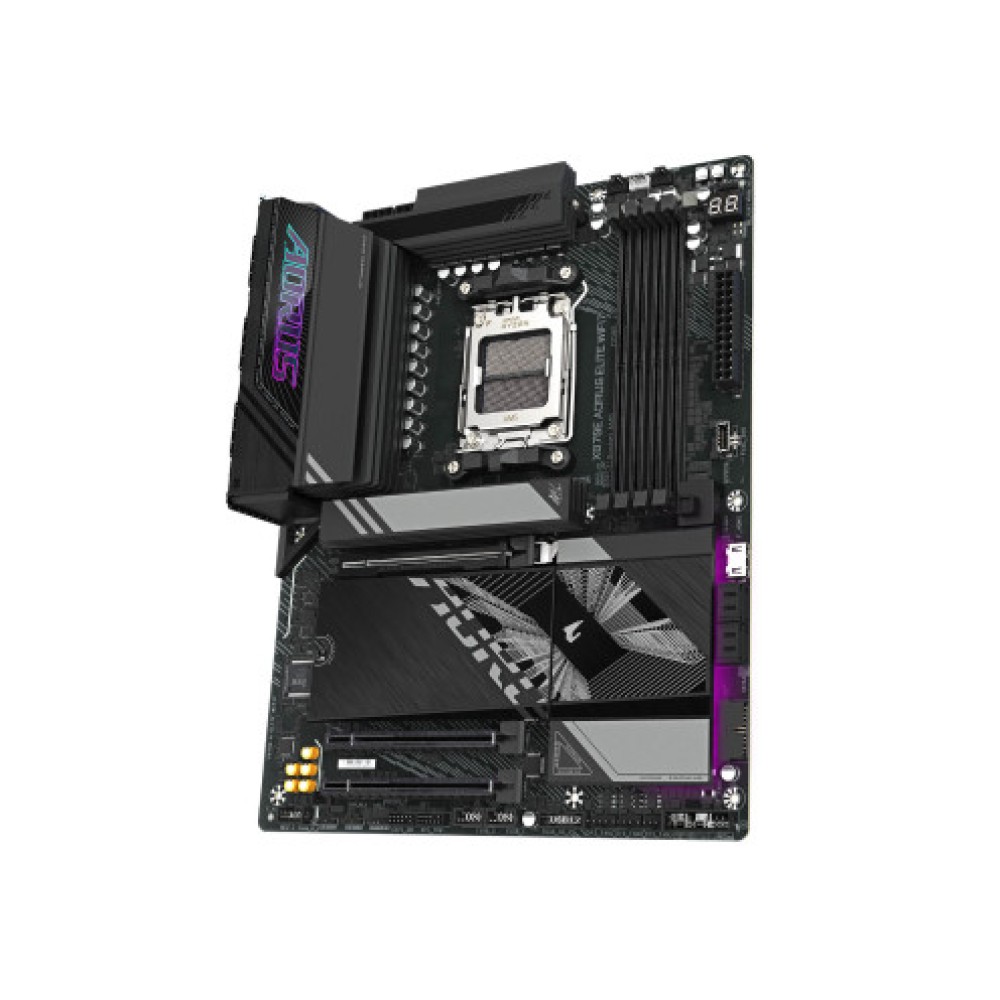

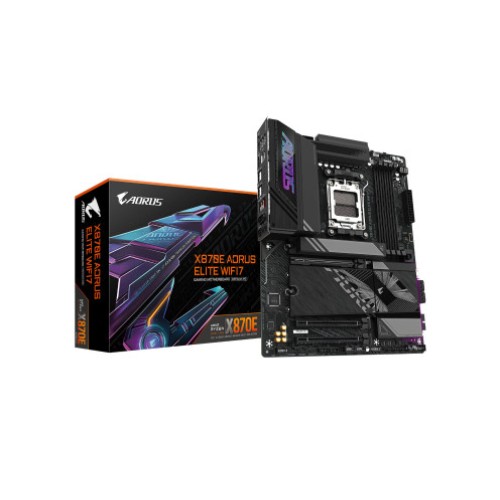

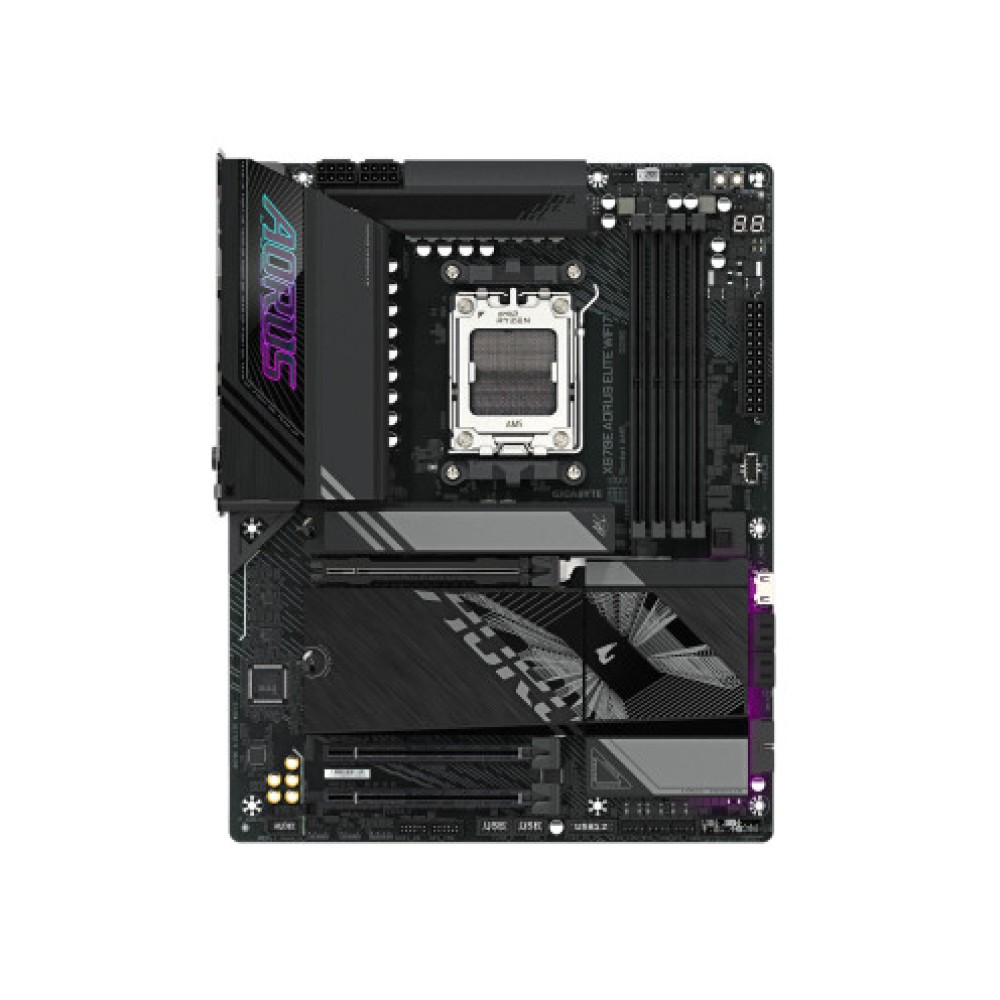

GIGABYTE X870E AORUS ELITE WIFI7 Motherboard
₪1478.00
GIGABYTE X870E AORUS ELITE WIFI7 Motherboard
Specification
| ModelGIGABYTE X870E AORUS ELITE WIFI7 | Warranty3 Years | DDR5 Slots4 |
| Memory TypeDDR5 | PCI-E x16 (x4) Slot1 | PCI-E x16 Slot1 |
| PCI-E x4 Slot1 | USB PortsUSB 2.0 \ USB 3.2 \ USB Type-C | USB Type-C Port3 |
Description
The GIGABYTE X870E AORUS ELITE WIFI7 motherboard offers high performance and impressive expandability, based on the AMD X870E chipset and AM5 socket. The board comes in ATX form factor and includes HDMI and USB Type-C graphical connections. In terms of communication, it is equipped with a 2.5 Gigabit LAN connection, Wi-Fi 7 (802.11be), and Bluetooth 5.4. The integrated audio card offers 2 + S/PDIF ports, and the storage interface includes 4 SATA3 connections and 4 M.2 PCIe connections with support for RAID 0, 1, 5, 10. The board supports DDR5 memory with 4 slots and provides a variety of USB connections, including 10 USB 3.2 ports and 8 USB 2.0 ports. With expansion slots such as TPM, PCIe 4.0, and PCIe 5.0, the board offers great flexibility for advanced users. The board comes with a 3-year warranty.
Specifications GIGABYTE X870E AORUS ELITE WIFI7 Motherboard
General
| Model | GIGABYTE X870E AORUS ELITE WIFI7 |
|---|---|
| Warranty | 3 Years |
Additional
| DDR5 Slots | 4 |
|---|---|
| Memory Type | DDR5 |
| PCI-E x16 (x4) Slot | 1 |
| PCI-E x16 Slot | 1 |
| PCI-E x4 Slot | 1 |
| USB Ports | USB 2.0 \ USB 3.2 \ USB Type-C |
| USB Type-C Port | 3 |
| Wireless Network Card | Yes |
Chipset
| Chipset | AMD X870E |
|---|
Connections
| USB 2.0 | 8 |
|---|---|
| USB 3.2 | 10 |
Expansion
| Expansion Slots | Trusted Platform Module (TPM) \ PCIe 4.0 x16, mode x4 \ PCIe 4.0 x16, mode x8 \ PCIe 5.0 x16 slot |
|---|
Graphics
| Graphics Interface | HDMI \ USB Type-C |
|---|
Network
| Communication Interfaces | LAN 2.5 Gigabit \ Wi-Fi 7 (802.11be) \ Bluetooth 5.4 |
|---|
Structure
| Board Configuration | ATX |
|---|
Audio
| Integrated Sound Card | 2 ports + S/PDIF |
|---|
Processor
| Processor Socket | AM5 |
|---|
Storage
| M.2 PCIe Connectors | 4 |
|---|---|
| RAID | 0,1,5,10 |
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 \ M.2 PCIe |
