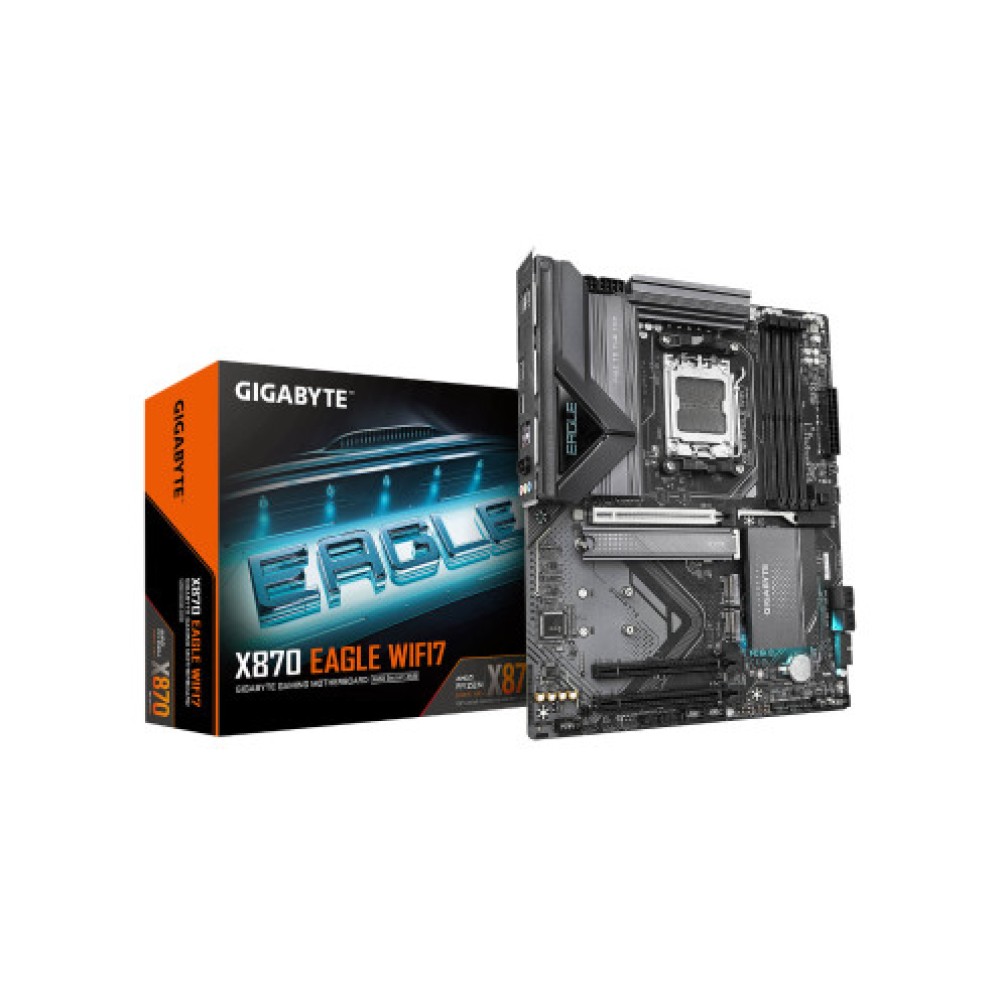

GIGABYTE X870 EAGLE WIFI7 Motherboard
₪1178.00
GIGABYTE X870 EAGLE WIFI7 Motherboard
Specification
| ModelGIGABYTE X870 EAGLE WIFI7 | Warranty3 Years | DDR5 Slots4 |
| Memory TypeDDR5 | PCI-E x16 (x4) Slot2 | PCI-E x16 Slot1 |
| USB PortsUSB 2.0 \ USB 3.2 \ USB Type-C | USB Type-C Port3 | Wireless Network CardYes |
Description
The GIGABYTE X870 EAGLE WIFI7 motherboard offers high performance and impressive expandability, featuring the AMD X870 chipset and an AM5 CPU socket. The board comes in an ATX form factor and provides graphical connectivity via HDMI and USB Type-C. Communication connections include 2.5 Gigabit LAN, Wi-Fi 7 (802.11be), and Bluetooth 5.4. The integrated sound card offers 3 ports, and the storage interface includes 4 SATA3 connections and 3 M.2 PCIe connections, with support for RAID 0, 1, and 10. The board includes expansion slots such as TPM, PCIe 4.0 x16, and PCIe 5.0 x16. With 6 USB 3.2 connections and 8 USB 2.0 connections, the board supports DDR5 memory with 4 slots. Backed by advanced technology, the board is equipped with a wireless network card and provides additional USB Type-C connections. The product comes with a 3-year warranty, ensuring peace of mind over time.
Specifications GIGABYTE X870 EAGLE WIFI7 Motherboard
General
| Model | GIGABYTE X870 EAGLE WIFI7 |
|---|---|
| Warranty | 3 Years |
Additional
| DDR5 Slots | 4 |
|---|---|
| Memory Type | DDR5 |
| PCI-E x16 (x4) Slot | 2 |
| PCI-E x16 Slot | 1 |
| USB Ports | USB 2.0 \ USB 3.2 \ USB Type-C |
| USB Type-C Port | 3 |
| Wireless Network Card | Yes |
Chipset
| Chipset | AMD X870 |
|---|
Connections
| USB 2.0 | 8 |
|---|---|
| USB 3.2 | 6 |
Expansion
| Expansion Slots | Trusted Platform Module (TPM) \ PCIe 4.0 x16, mode x4 \ PCIe 5.0 x16 slot |
|---|
Graphics
| Graphics Interface | HDMI \ USB Type-C |
|---|
Network
| Communication Interfaces | LAN 2.5 Gigabit \ Wi-Fi 7 (802.11be) \ Bluetooth 5.4 |
|---|
Structure
| Board Configuration | ATX |
|---|
Audio
| Integrated Sound Card | 3 ports |
|---|
Processor
| Processor Socket | AM5 |
|---|
Storage
| M.2 PCIe Connectors | 3 |
|---|---|
| RAID | 2000,1,10 |
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 \ M.2 PCIe |
