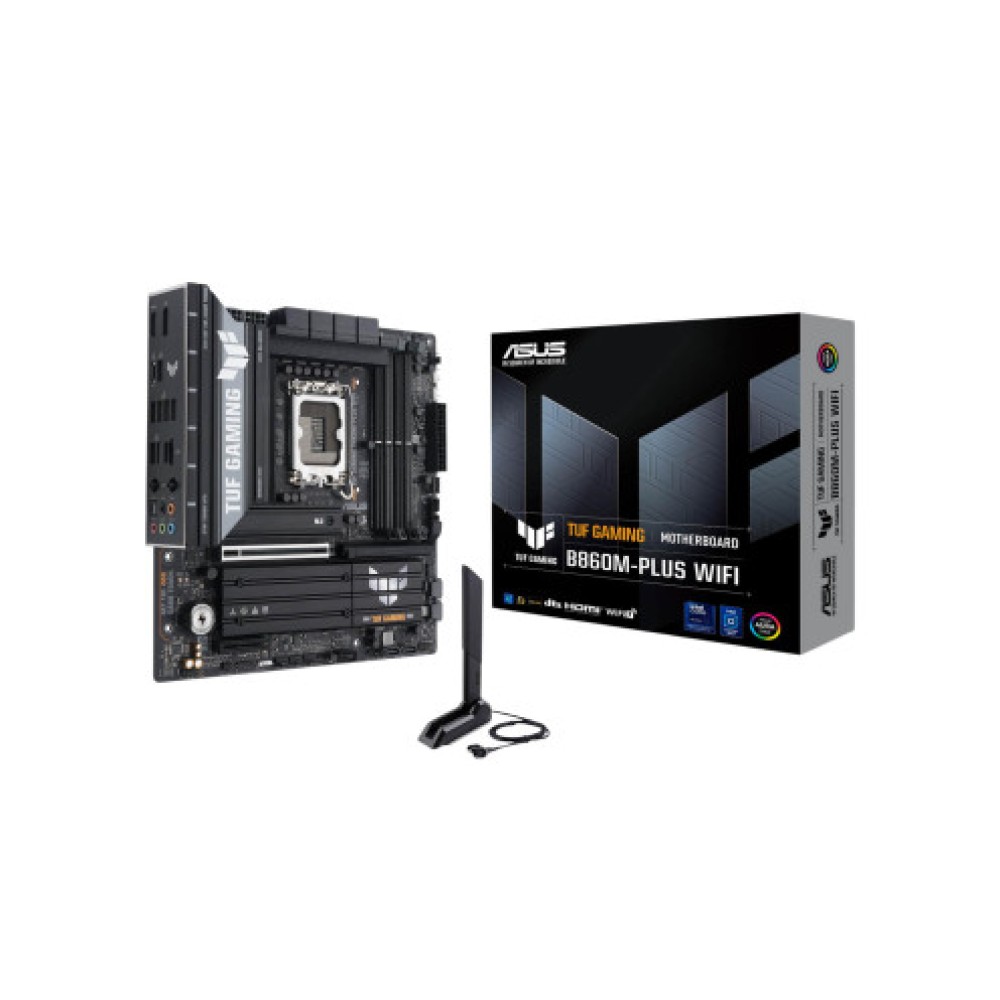

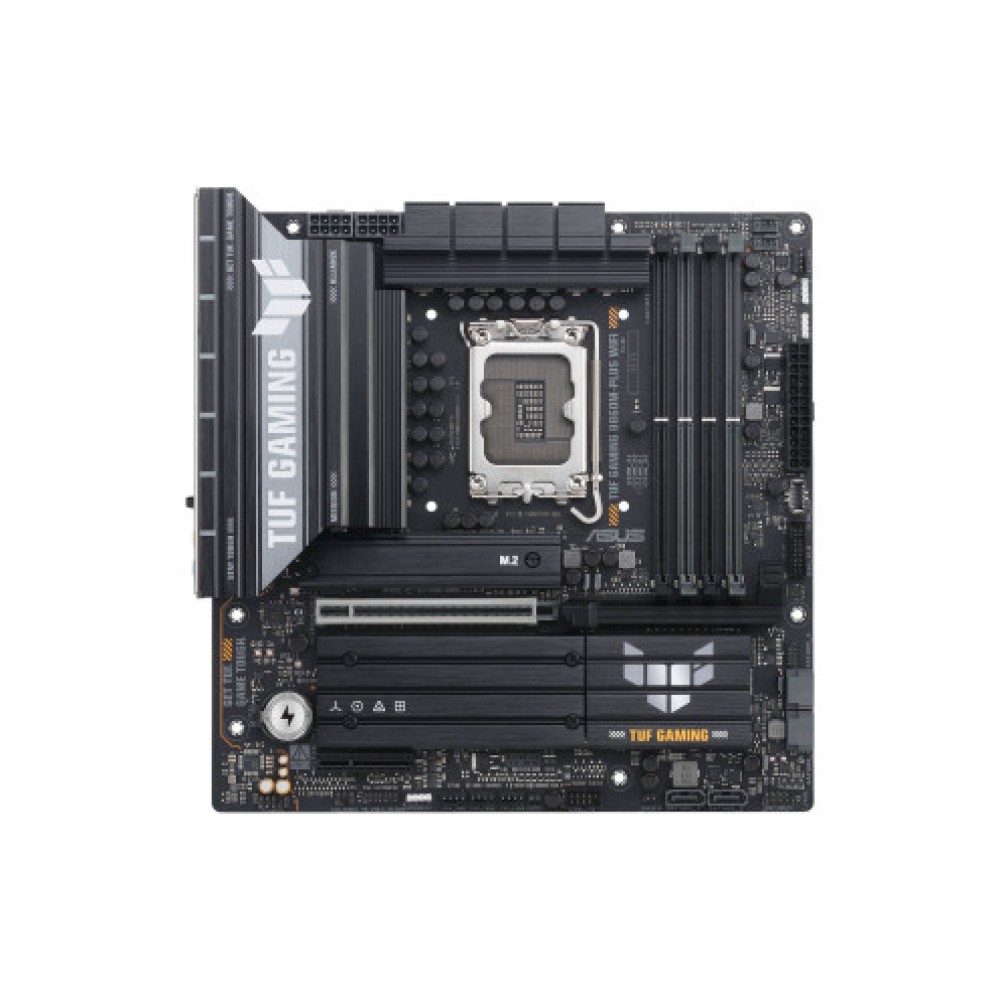

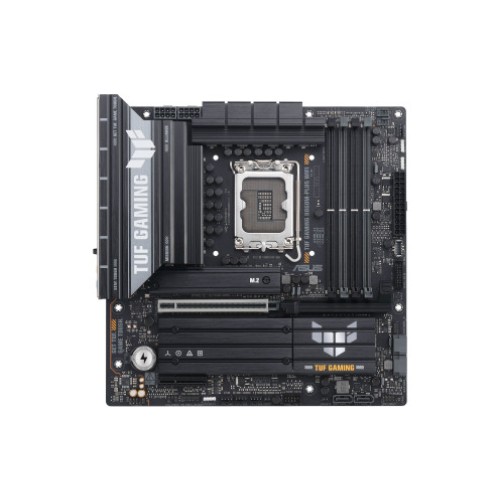

ASUS TUF GAMING B860M-PLUS WIFI Motherboard
₪1116.00
ASUS TUF GAMING B860M-PLUS WIFI Motherboard
Specification
| ModelASUS TUF GAMING B860M-PLUS WIFI | Warranty3 Years | DDR5 Slots4 |
| Memory TypeDDR5 | PCI-E x16 Slot1 | PCI-E x4 Slot1 |
| Thunderbolt1 | USB PortsUSB 2.0 / USB 3.2 / USB Type-C | USB Type-C Port2 |
Description
The ASUS TUF GAMING B860M-PLUS WIFI motherboard offers high performance and impressive stability for advanced gaming systems. With an Intel B860 chipset and a 1851 CPU socket, the board supports DDR5 memory with 4 slots. The Micro ATX form factor allows for convenient installation in a variety of cases. Graphics connectivity includes HDMI, DisplayPort, and USB Type-C, while the communication interfaces feature 2.5 Gigabit LAN, Wi-Fi 7 (802.11be), and Bluetooth 5.4. The board is equipped with an integrated sound card with 5 ports and S/PDIF, and offers diverse storage interfaces with 4 SATA3 connections and 3 M.2 PCIe connections. It supports RAID 0, 1, 5, and 10 technologies. Expansion slots include PCIe 4.0 x4 and PCIe 5.0 x16, with 7 USB 3.2 ports and 2 USB 2.0 ports. The board comes with a 3-year warranty, ensuring peace of mind over time.
Specifications ASUS TUF GAMING B860M-PLUS WIFI Motherboard
General
| Model | ASUS TUF GAMING B860M-PLUS WIFI |
|---|---|
| Warranty | 3 Years |
Additional
| DDR5 Slots | 4 |
|---|---|
| Memory Type | DDR5 |
| PCI-E x16 Slot | 1 |
| PCI-E x4 Slot | 1 |
| Thunderbolt | 1 |
| USB Ports | USB 2.0 / USB 3.2 / USB Type-C |
| USB Type-C Port | 2 |
| Wireless Network Card | Yes |
Chipset
| Chipset | Intel B860 |
|---|
Connections
| USB 2.0 | 2 |
|---|---|
| USB 3.2 | 7 |
Expansion
| Expansion Slots | PCIe 4.0 x4 / PCIe 5.0 x16 slot |
|---|
Graphics

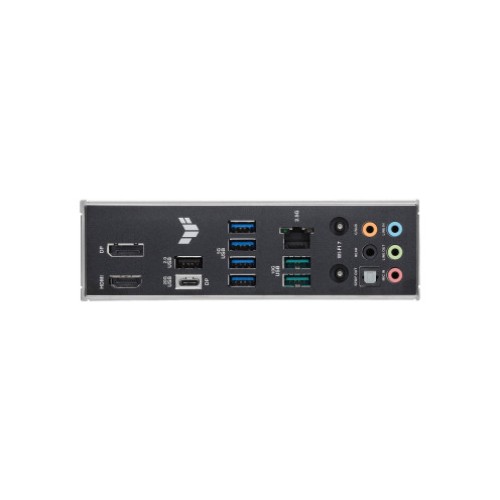

| Graphics Interface | HDMI / DisplayPort / USB Type-C |
|---|
Network
| Communication Interfaces | LAN 2.5 Gigabit / Wi-Fi 7 (802.11be) / Bluetooth 5.4 |
|---|
Structure
| Board Configuration | Micro ATX |
|---|
Audio
| Integrated Sound Card | 5 ports + S/PDIF |
|---|
Processor
| Processor Socket | 1851 |
|---|
Storage
| M.2 PCIe Connectors | 3 |
|---|---|
| RAID | 0,1,5,10 |
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 / M.2 PCIe |
