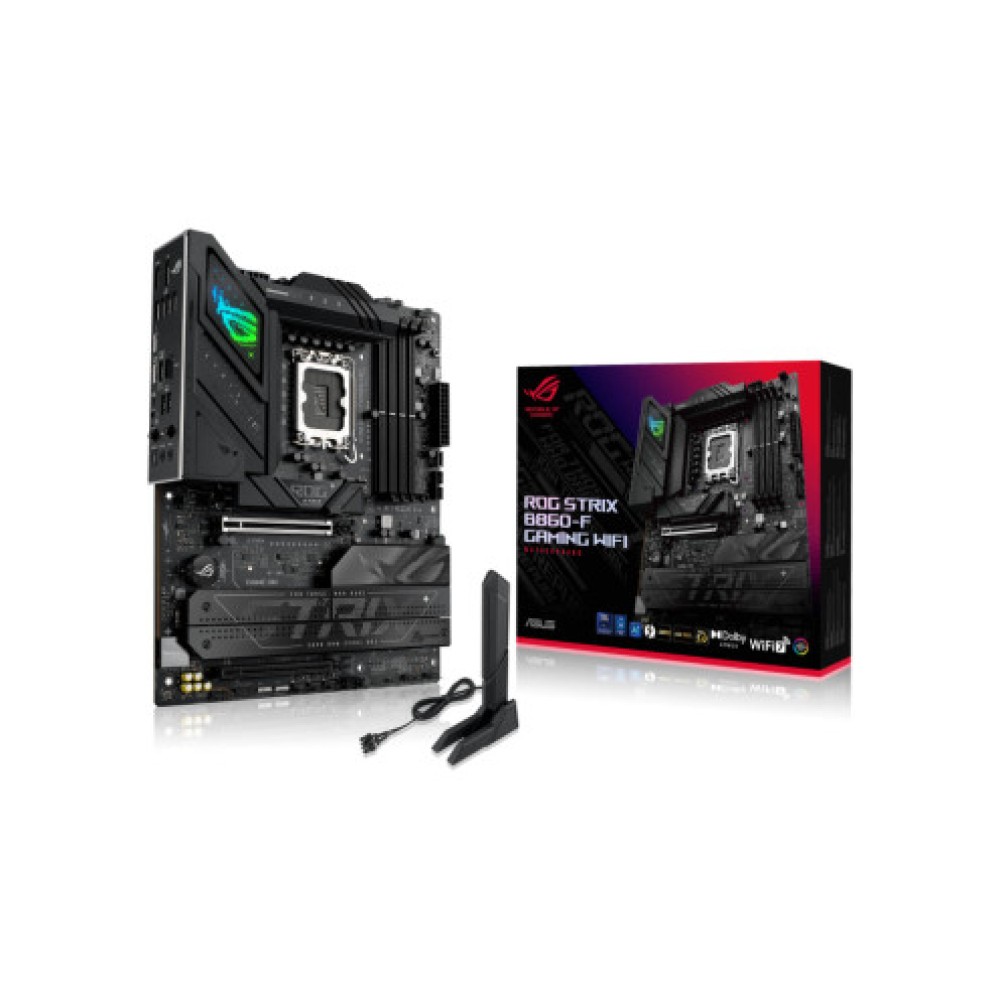

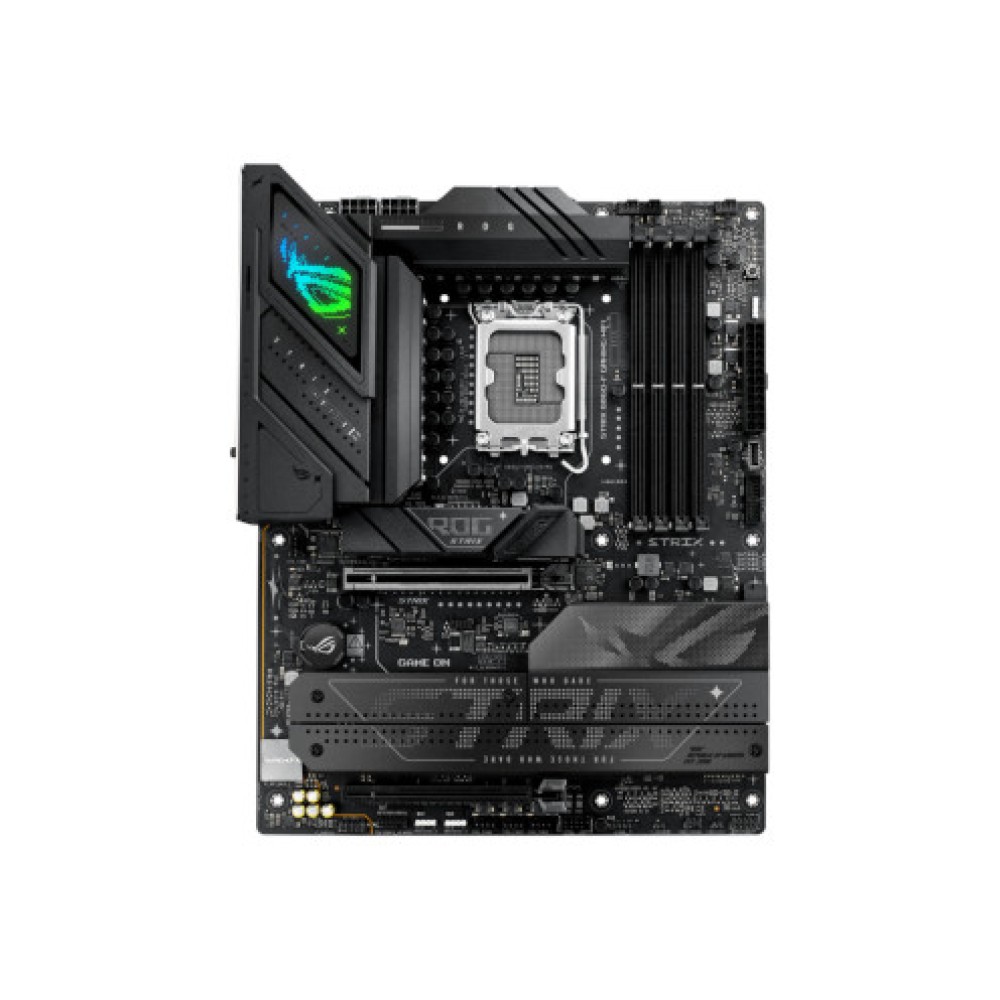

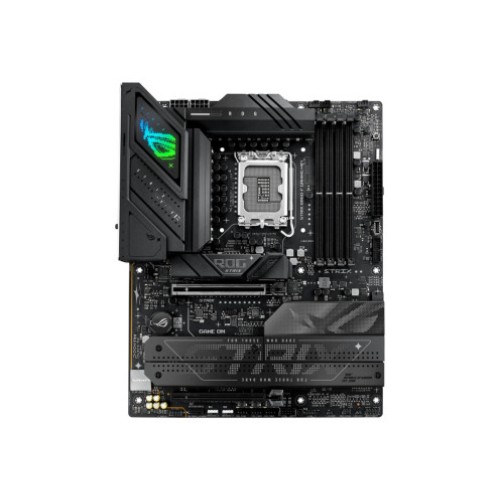

ASUS ROG STRIX B860-F GAMING WIFI Motherboard
₪1478.00
ASUS ROG STRIX B860-F GAMING WIFI Motherboard
Specification
| ModelASUS ROG STRIX B860-F GAMING WIFI | Warranty3 Years | DDR5 Slots4 |
| Memory TypeDDR5 | PCI-E x16 (x4) Slot1 | PCI-E x16 Slot1 |
| Thunderbolt1 | USB PortsUSB 2.0 / USB 3.2 / USB Type-C | USB Type-C Port2+1 |
Description
The ASUS ROG STRIX B860-F GAMING WIFI motherboard offers high performance and a wide range of advanced technological connections. With an Intel B860 chipset and a 1851 CPU socket, the board supports DDR5 memory with 4 slots. It is equipped with HDMI, DisplayPort, and Thunderbolt graphics connections, and provides advanced communication connections including 2.5 Gigabit LAN, Wi-Fi 7 (802.11be), and Bluetooth 5.4. The board features an integrated sound card with 2 ports and S/PDIF, and a storage interface offering 4 SATA3 connections and 4 M.2 PCIe connections, with support for RAID 0, 1, 5, and 10. Additionally, the board offers 8 USB 3.2 connections, 2 USB 2.0 connections, and 3 USB Type-C connections. With PCIe 4.0 and 5.0 expansion slots, the board ensures maximum flexibility in selecting hardware components. The board comes with a 3-year warranty.
Specifications ASUS ROG STRIX B860-F GAMING WIFI Motherboard
General
| Model | ASUS ROG STRIX B860-F GAMING WIFI |
|---|---|
| Warranty | 3 Years |
Additional
| DDR5 Slots | 4 |
|---|---|
| Memory Type | DDR5 |
| PCI-E x16 (x4) Slot | 1 |
| PCI-E x16 Slot | 1 |
| Thunderbolt | 1 |
| USB Ports | USB 2.0 / USB 3.2 / USB Type-C |
| USB Type-C Port | 2+1 |
| Wireless Network Card | Yes |
Chipset
| Chipset | Intel B860 |
|---|
Connections
| USB 2.0 | 2 |
|---|---|
| USB 3.2 | 8 |
Expansion
| Expansion Slots | PCIe 4.0 x16 (mode x4) / PCIe 5.0 x16 slot |
|---|
Graphics

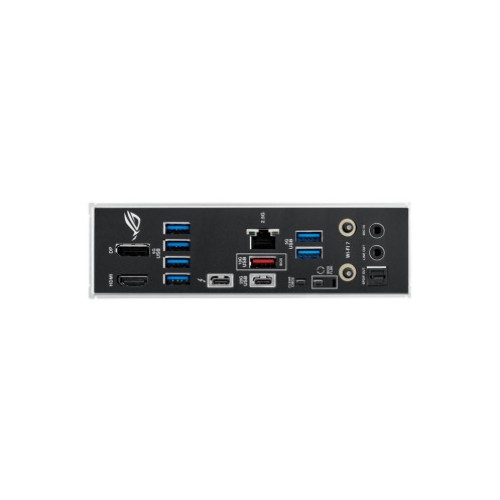

| Graphics Interface | HDMI / DisplayPort / Thunderbolt |
|---|
Network
| Communication Interfaces | LAN 2.5 Gigabit / Wi-Fi 7 (802.11be) / Bluetooth 5.4 |
|---|
Structure
| Board Configuration | ATX |
|---|
Audio
| Integrated Sound Card | 2 Ports + S/PDIF |
|---|
Processor
| Processor Socket | 1851 |
|---|
Storage
| M.2 PCIe Connectors | 4 |
|---|---|
| RAID | 0,1,5,10 |
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 / M.2 PCIe |
