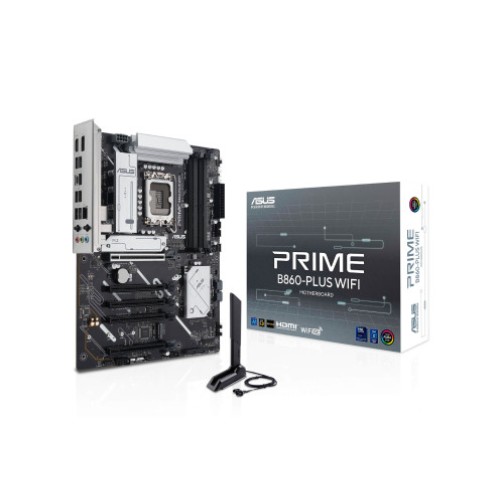

ASUS PRIME B860-PLUS WIFI Motherboard
₪851.00
ASUS PRIME B860-PLUS WIFI Motherboard
Specification
| ModelASUS PRIME B860-PLUS WIFI | Warranty3 Years | DDR5 Slots4 |
| Memory TypeDDR5 | PCI-E x1 Slot1 | PCI-E x16 (x4) Slot3 |
| PCI-E x16 Slot1 | Thunderbolt1 | USB PortsUSB 2.0 / USB 3.2 / USB Type-C |
Description
The ASUS PRIME B860-PLUS WIFI motherboard offers high performance and advanced solutions for both professional and hobbyist users. With an Intel B860 chipset and a 1851 CPU socket, the board supports DDR5 memory with four expansion slots. Communication interfaces include Wi-Fi 6/6E, 2.5 Gigabit LAN, and Bluetooth 5.3, ensuring fast and stable connectivity. The board is equipped with HDMI and DisplayPort graphics connections, and provides a diverse storage interface with 4 SATA3 connections and 2 M.2 PCIe connections. The RAID feature supports modes 0, 1, 5, and 10. Additionally, the board includes advanced expansion slots like PCIe 5.0 x16 and PCIe 4.0 x16, along with a variety of USB connections, including USB 3.2 and USB Type-C. With a built-in 3-port audio card, the ASUS PRIME B860-PLUS WIFI is an ideal solution for advanced systems. The board comes with a 3-year warranty.
Specifications ASUS PRIME B860-PLUS WIFI Motherboard
General
| Model | ASUS PRIME B860-PLUS WIFI |
|---|---|
| Warranty | 3 Years |
Additional
| DDR5 Slots | 4 |
|---|---|
| Memory Type | DDR5 |
| PCI-E x1 Slot | 1 |
| PCI-E x16 (x4) Slot | 3 |
| PCI-E x16 Slot | 1 |
| Thunderbolt | 1 |
| USB Ports | USB 2.0 / USB 3.2 / USB Type-C |
| USB Type-C Port | 2 |
| Wireless Network Card | Yes |
Chipset
| Chipset | Intel B860 |
|---|
Connections
| USB 2.0 | 5 |
|---|---|
| USB 3.2 | 4 |
Expansion
| Expansion Slots | Trusted Platform Module (TPM) / PCIe 4.0 x16 (mode x4) / PCIe 5.0 x16 slot / PCIe 4.0 x16 (mode x1) |
|---|
Graphics
| Graphics Interface | HDMI / DisplayPort |
|---|
Network
| Communication Interfaces | Wi-Fi 6/6E (802.11ax) / LAN 2.5 Gigabit / Bluetooth 5.3 |
|---|
Structure
| Board Configuration | ATX |
|---|
Audio
| Integrated Sound Card | 3 ports |
|---|
Processor
| Processor Socket | 1851 |
|---|
Storage
| M.2 PCIe Connectors | 2 |
|---|---|
| RAID | 0,1,5,10 |
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 / M.2 PCIe |
