MSI J1900I Motherboard
₪150.00
MSI J1900I Motherboard
Specification
| Equipment TypeMotherboard for Desktop Computer | PurposeDesktop Computer | ManufacturerMSI |
| ModelJ1900I | Rear Audio Outputs3 Audio Connectors | Motherboard SizeMini-ITX (17.0 cm x 17.0 cm) |
| PCI-E Slot1 PCI Express 2.0 x1 Slot | CrossFire SupportDoes Not Support CrossFire | Dual Graphics SupportSupports Dual Graphics |
Description
The MSI J1900I motherboard in Mini-ITX format (17.0 cm x 17.0 cm) supports the Intel® Celeron J1900 processor, with 8GB DDR3 internal memory and a frequency of 1066/1333 MHz in dual-channel architecture. It includes 2 SATA 3Gb/s ports for storage and one PCI Express 2.0 x1 slot for expansion. Network controller of 10/100/1000 Mbps with Realtek RTL8111G network adapter. USB ports on the rear panel: 1 USB 3.0 port and 2 USB 2.0 ports. Audio ports on the rear panel: 3 jacks. Video outputs: VGA, DVI-D, HDMI™. Supports Dual Graphics (does not support CrossFire). Includes an internal TPM connector, CPU and system fan connectors, internal USB ports, and a front audio connector. Motherboard dimensions: 17.0 cm x 17.0 cm.
Specifications MSI J1900I Motherboard
General
| Equipment Type | Motherboard for Desktop Computer |
|---|---|
| Purpose | Desktop Computer |
| Manufacturer | MSI |
| Model | J1900I |
Audio Outputs
| Rear Audio Outputs | 3 Audio Connectors |
|---|
Dimensions
| Motherboard Size | Mini-ITX (17.0 cm x 17.0 cm) |
|---|
Expansion Slots
| PCI-E Slot | 1 PCI Express 2.0 x1 Slot |
|---|
Graphics Support
| CrossFire Support | Does Not Support CrossFire |
|---|---|
| Dual Graphics Support | Supports Dual Graphics |
Installation
| Mounting Holes | 4 Mounting Holes |
|---|
Internal Connections
| Chassis Intrusion Sensor Connector | 1 Chassis Intrusion Sensor Connector |
|---|---|
| Clear CMOS Jumper | 1 Clear CMOS Jumper |
| CPU Fan Connector | 1 4-pin CPU Fan Connector |
| Fan Connectors | 1 Internal USB 2.0 Port |
| Front Audio Connector | 1 Front Audio Connector |
| Front Panel Connector | 1 Front Panel Connector |
| Internal TPM Connector | 1 Internal TPM Connector |
| SATA Connectors | 2 SATA 3Gb/s Ports |
| Serial Port Connector | 1 Serial Port Connector |
| System Fan Connector | 1 4-pin System Fan Connector |
| TPM Connector | 1 Internal TPM Connector |
Motherboard Form Factor
| Motherboard Form Factor | Mini-ITX (17.0 cm × 17.0 cm) |
|---|
Network
| Network Adapter | 10/100/1000 Mbps |
|---|---|
| Network Adapter Model | Realtek RTL8111G |

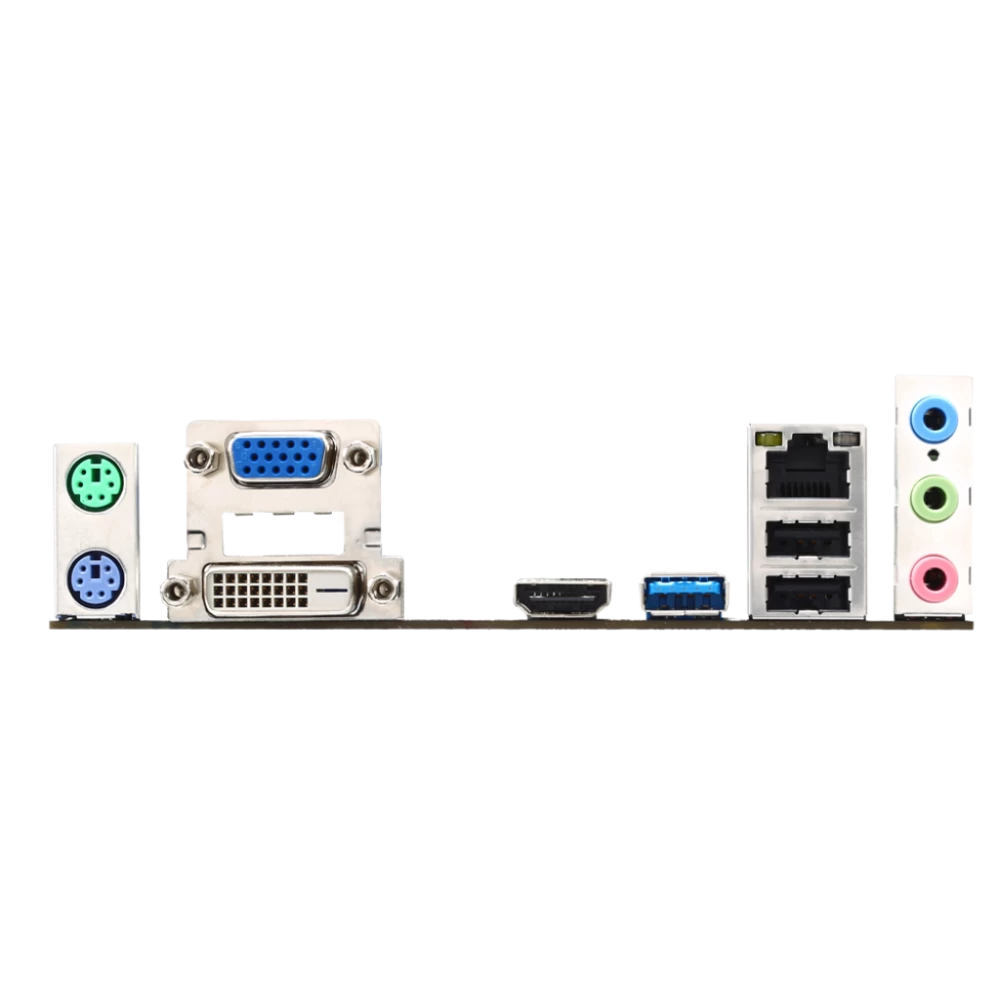

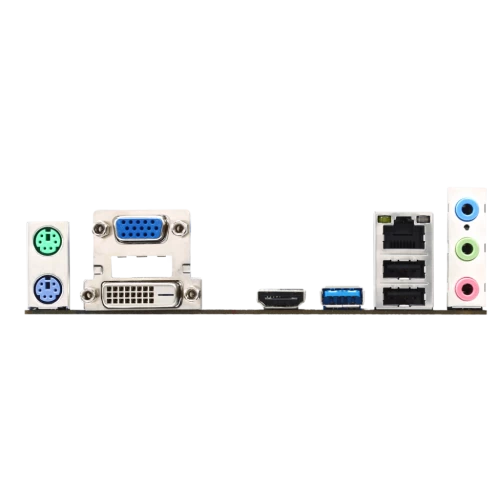

Rear Ports
| Audio Connectors | 3 Audio Connectors |
|---|---|
| DVI-D Port | 1 DVI-D Port |
| HDMI™ Port | 1 HDMI™ Port |
| LAN (RJ45) | 1 LAN Port (RJ45) |
| PS/2 for Keyboard | 1 PS/2 Port for Keyboard |
| PS/2 for Mouse | 1 PS/2 Port for Mouse |
| USB 2.0 | 2 USB 2.0 Ports |
| USB 3.0 | 1 USB 3.0 Port |
| VGA Port | 1 VGA Port |
USB Ports
| Internal USB 2.0 | 2 Internal USB 2.0 Ports |
|---|---|
| Rear USB 2.0 | 2 Rear USB 2.0 Ports |
| Rear USB 3.0 | 1 Rear USB 3.0 Port |
Video Outputs
| DVI-D Port | 1 DVI-D Port, Maximum Resolution 2560×1600 @ 60Hz |
|---|---|
| HDMI™ Port | 1 HDMI™ Port, Maximum Resolution 1920×1200 @ 60Hz |
| VGA Port | 1 VGA Port, Maximum Resolution 2560×1600 @ 60Hz |
Graphics Processor
| Shared Graphics Memory | 2048MB |
|---|
Internal Memory
| Memory Architecture | Dual Channel |
|---|---|
| Memory Frequency | 1066/1333 MHz |
| Internal Memory Capacity | 8GB |
| Memory Type | DDR3 |
Processor
| Processor | Intel® Celeron J1900 |
|---|
Storage
| SATA Outputs | 2 SATA 3Gb/s Ports |
|---|
