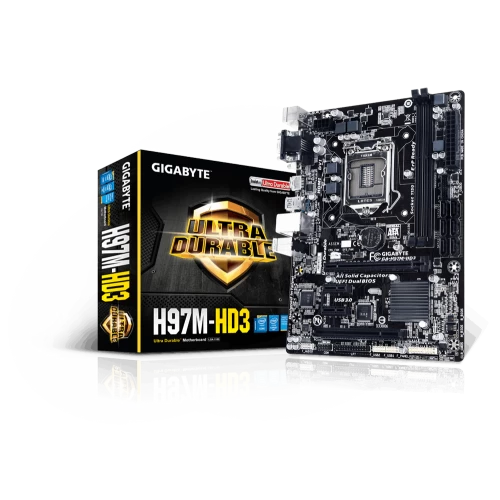

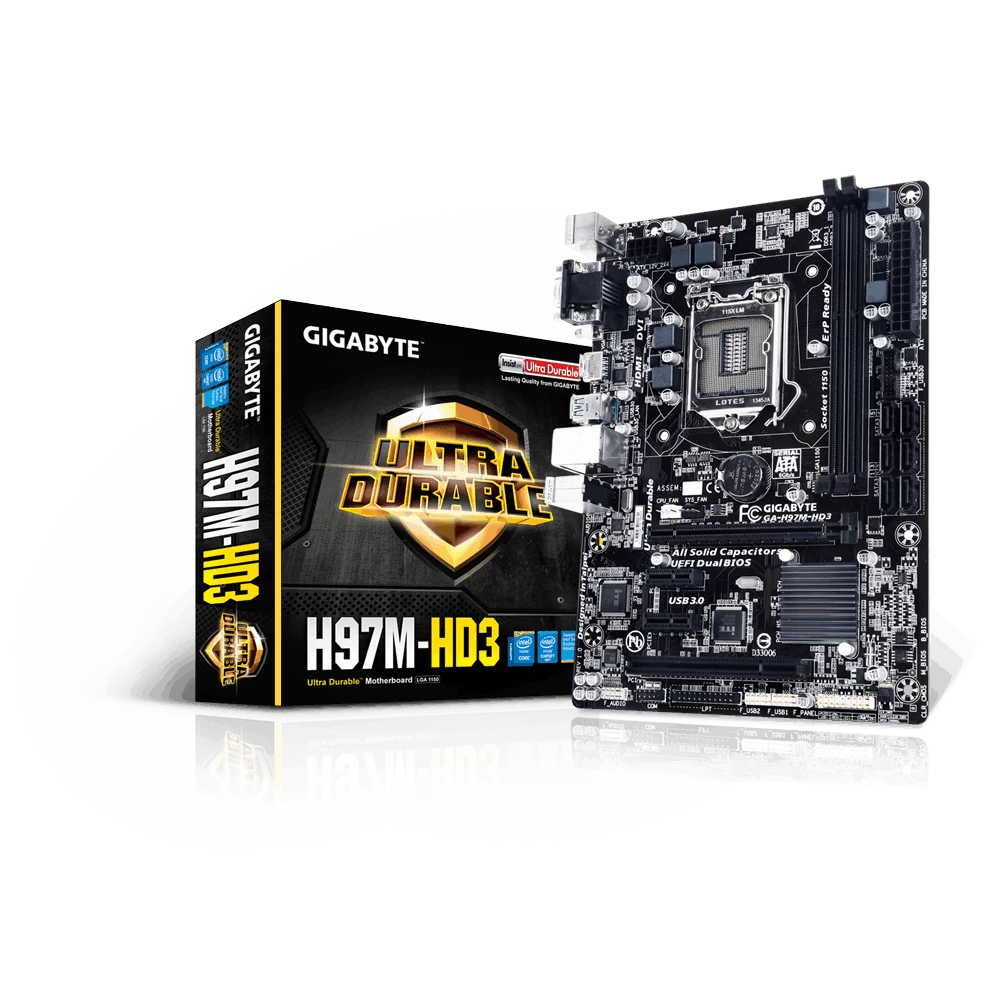

Gigabyte LGA1150 GA-H97M-HD3 motherboard
₪450.00
Gigabyte LGA1150 GA-H97M-HD3 motherboard
Specification
| PurposeDesktop Computer | ManufacturerGIGABYTE | ModelGA-H97M-HD3 |
| Product TypeMotherboard for Desktop Computer | AudioHDA 8-channel Realtek ALC887 | Rear Panel Audio OutputsLine-in, Line-out, Mic-in |
| Maximum PCIe VersionPCI-E 3.0 | PCI Express 16x Slots1x PCI-E 3.0 x16 | PCI Express 1x Slots2x PCI-E 2.0 x1 |
Description

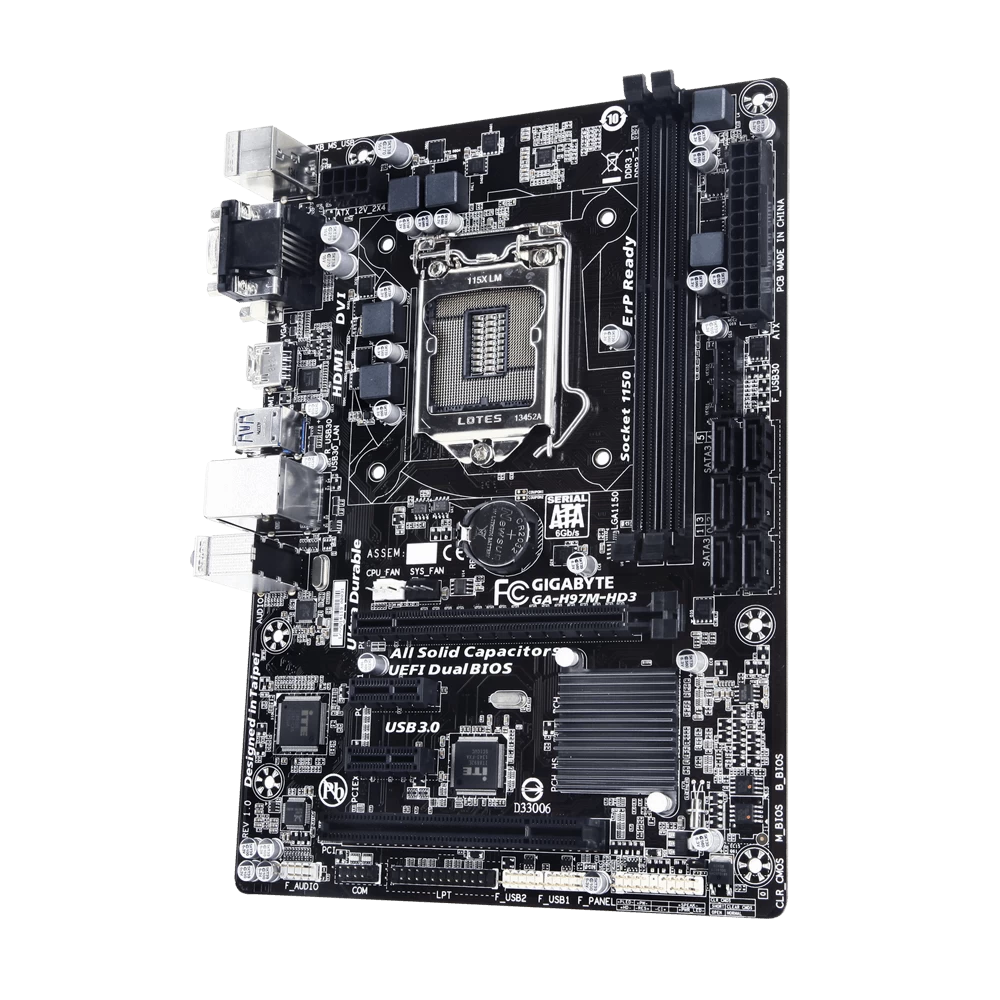

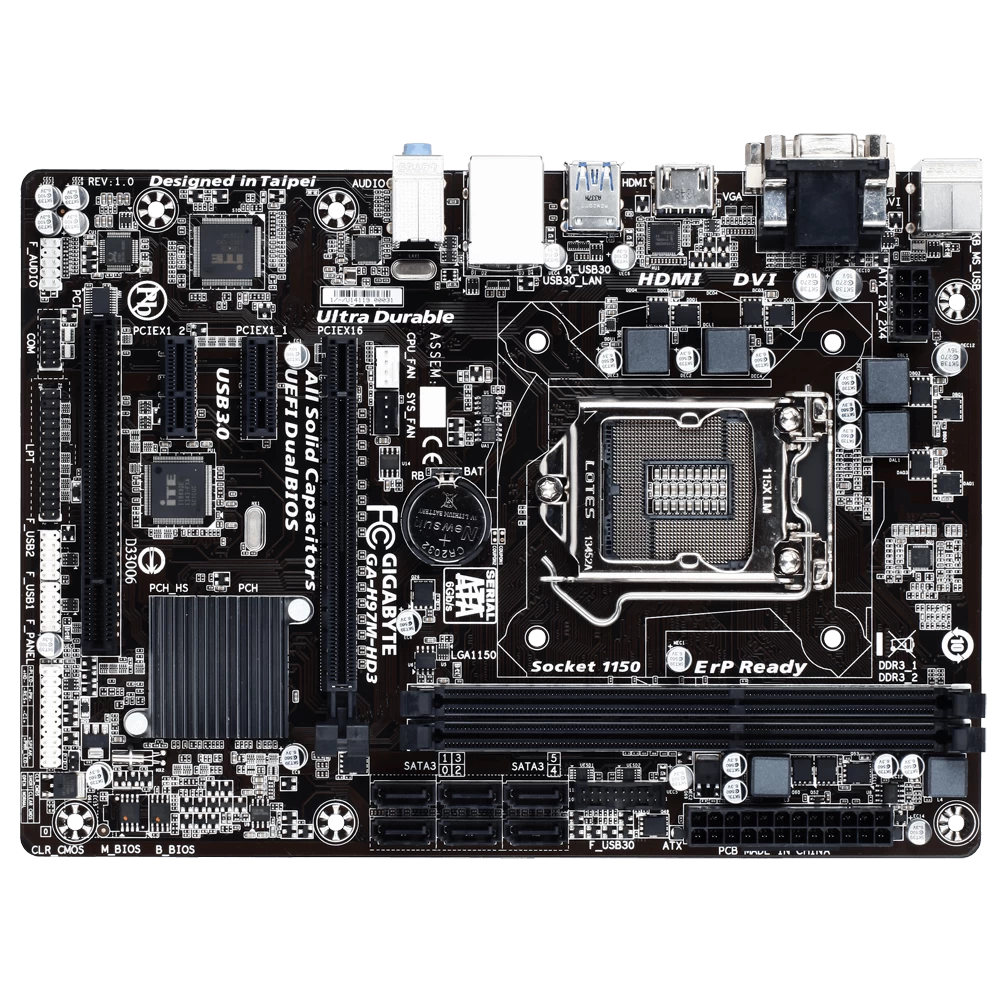

The GIGABYTE motherboard, model GA-H97M-HD3, with an Intel H97 chipset for the LGA1150 socket, supports Intel Core i7/i5/i3 4th generation processors (Haswell, Devil's Canyon) with Hyper-Threading support and a base bus frequency of 5000 MHz. It features 2 DDR3/LV DDR3 memory slots with dual-channel and XMP support. The board offers 6 SATA 6 Gb/s ports with support for RAID 0, 1, 5, 10, and NVMe Boot. It includes integrated processor graphics with HDMI, DVI-D, and D-Sub outputs, supports up to 3 displays, and a maximum resolution of 4096×2160 @ 24 Hz (HDMI). Additionally, it comes with a network controller and an 8-channel Realtek ALC887 audio codec, USB 3.0 and 2.0 ports, one PCI-E 3.0 x16 slot, two PCI-E 2.0 x1 slots, and one PCI slot. The board features DualBIOS with EFI AMI BIOS, Smart Fan Control for fan regulation, and support for a 24+8 pin power supply.
Specifications Gigabyte LGA1150 GA-H97M-HD3 motherboard
General
| Purpose | Desktop Computer |
|---|---|
| Manufacturer | GIGABYTE |
| Model | GA-H97M-HD3 |
| Product Type | Motherboard for Desktop Computer |
Built-in Sound Card
| Audio | HDA 8-channel Realtek ALC887 |
|---|---|
| Rear Panel Audio Outputs | Line-in, Line-out, Mic-in |
Expansion Slots
| Maximum PCIe Version | PCI-E 3.0 |
|---|---|
| PCI Express 16x Slots | 1x PCI-E 3.0 x16 |
| PCI Express 1x Slots | 2x PCI-E 2.0 x1 |
| PCI Slots | 1 slot |
Logistics
| Packaging Dimensions | 26.52 x 26.5 x 5.61 cm |
|---|
Power
| Power Unit Requirements | Supported only with 24+8-pin power supplies |
|---|
Storage
| Dual Channel Memory Support | Yes |
|---|---|
| Extreme Memory Profile (XMP) Support | Yes |
| Maximum Supported Memory Devices | Depends on the processor |
| Memory type | LV DDR3, DDR3 |
| Number of Memory Slots | 2 |
Additional Features
| BIOS | EFI AMI BIOS, 2x 64 Mbit with DualBIOS support |
|---|---|
| Noise Reduction Technologies | CPU/System Smart Fan Control |
Communication
| Internal USB Ports | 2x USB 3.0 (USB 3.1 Gen1), 4x USB 2.0 |
|---|---|
| Keyboard/Mouse | PS/2 (keyboard and mouse) + USB |
| Rear USB Ports | 4x USB 3.0 (USB 3.1 Gen1), 2x USB 2.0 |
| USB Controller | USB 3.0 controller, integrated in chipset |
Display
| Maximum Number of Connected Screens | 3 |
|---|---|
| Maximum Screen Resolution D-Sub | 1920 x 1200 @ 60 Hz |
| Maximum Screen Resolution DVI-D | 1920 x 1200 @ 60 Hz |
| Maximum Screen Resolution HDMI | 4096 x 2160 @ 24 Hz |
| Maximum Video Memory Size | 1 GB |
| Onboard Video | Uses integrated graphics in the processor |

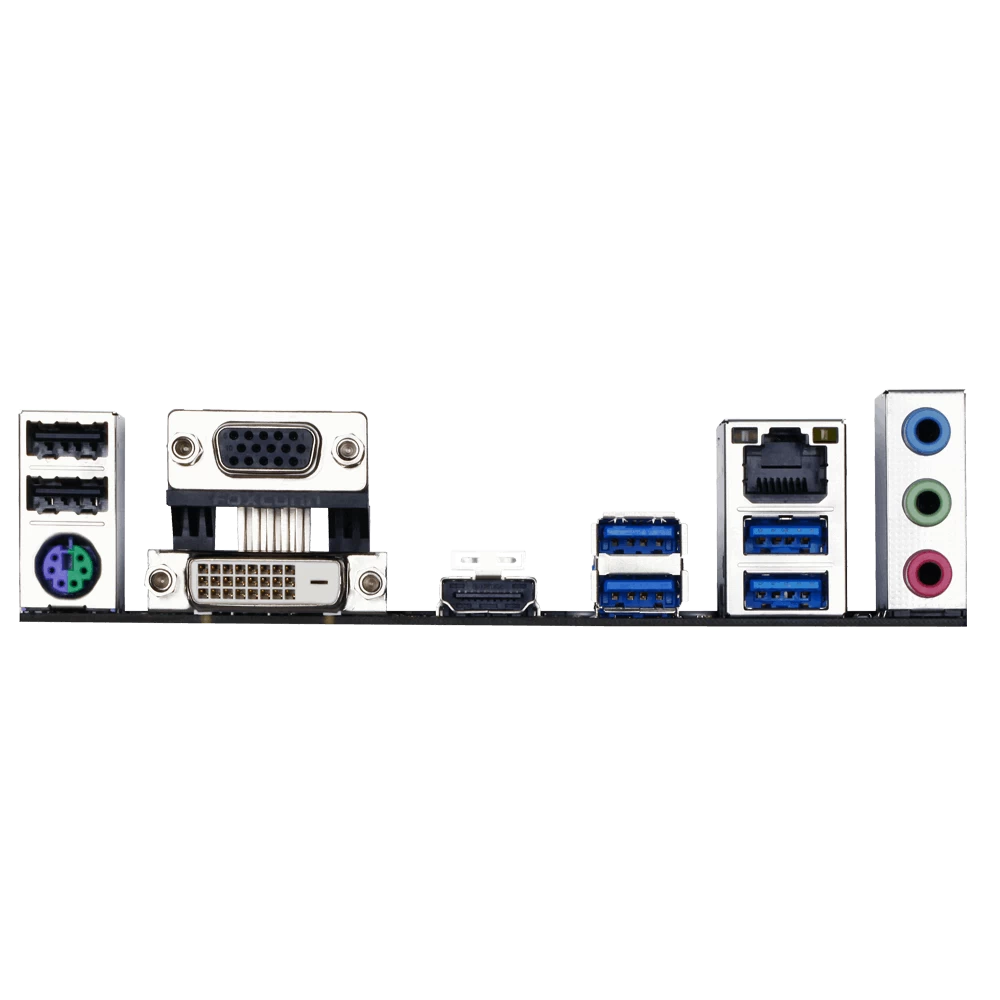

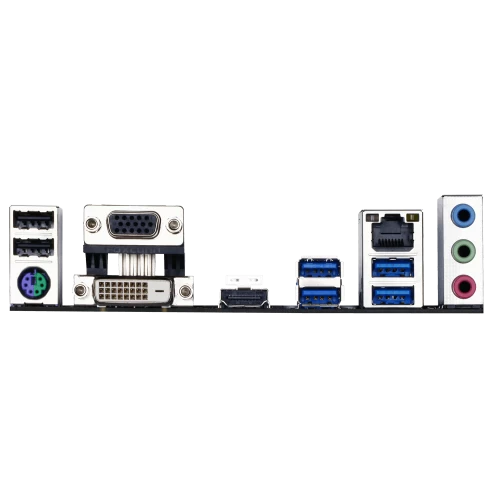

| Rear Panel Video Outputs | D-Sub, DVI-D, HDMI |
Processor
| Bus Frequency | 5000 MHz |
|---|---|
| Chipset | Intel H97 |
| Hyper Threading Support | Yes |
| Maximum Number of Processors | 1 |
| Processor Slot | Socket LGA1150 |
| Processor Support | Intel Core i7-4xxx, Core i5-4xxx, Core i3-4xxx, Pentium G3xxx series |
| Supported Cores | Haswell, Devil's Canyon |
Storage
| Intel Smart Response | Supported |
|---|---|
| NVMe Boot Support | Yes |
| RAID Controller | Integrated in chipset, supports RAID levels 0, 1, 5, 10 |
| SATA 6Gb/s | 6 channels |
