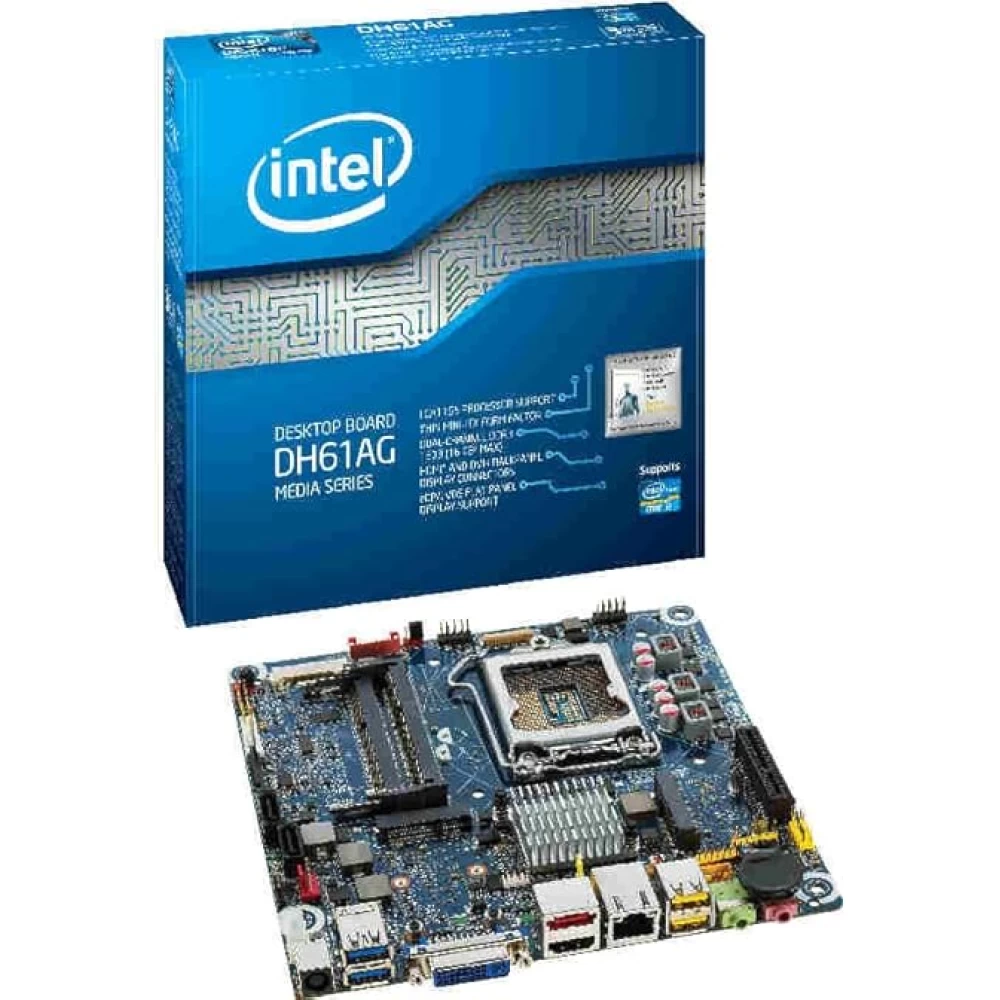

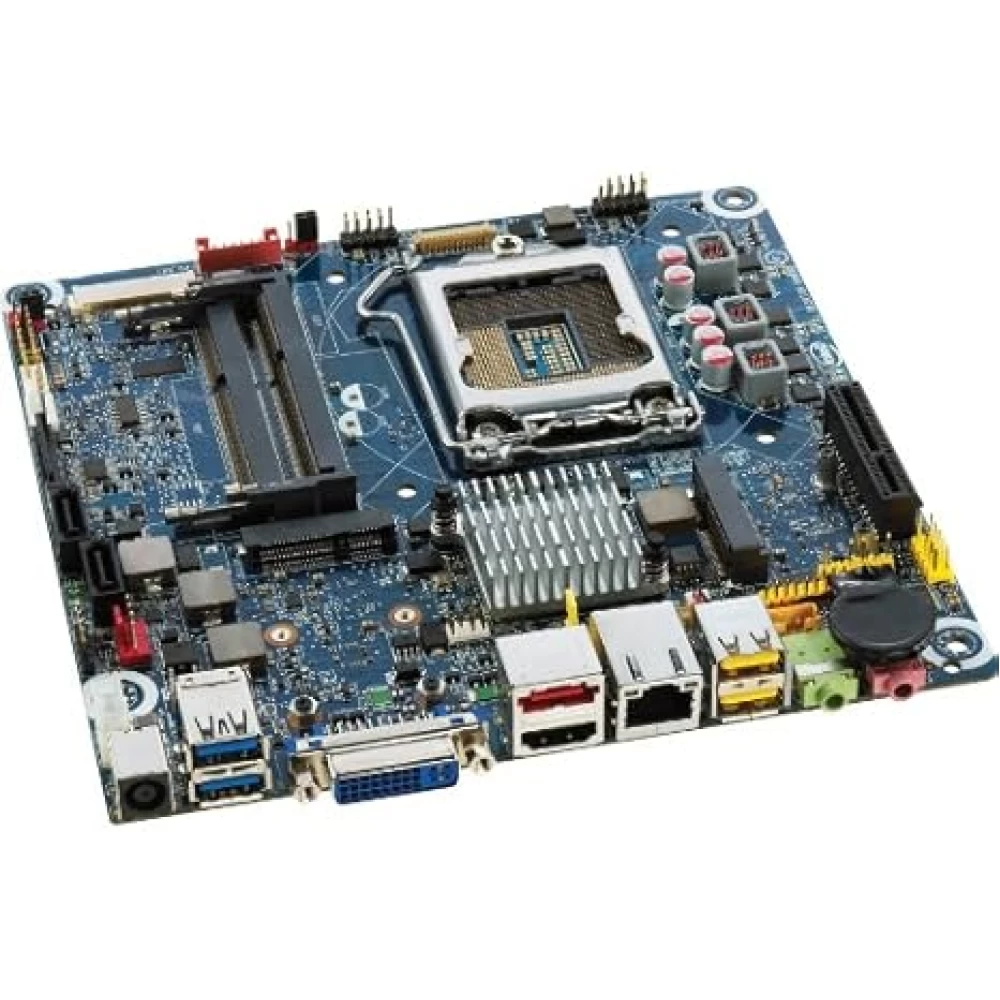

Intel LGA1155 DH61AG_USE Thin Mini ITX Motherboard – Second Hand
₪150.00
Intel LGA1155 DH61AG_USE Thin Mini ITX Motherboard – Second Hand
Specification
| Manufacturer SKUBOXDH61AG | ColorBlack / Blue | ManufacturerIntel |
| ModelDH61AG_USE | Chipset ModelIntel H61 Express | Audio I/O Connectors10 channels (8 rear + 2 front) |
| Infrared PortYes | Network Port1× RJ45 LAN | Optical Audio Out1× S/PDIF |
Description
The Intel DH61AG_USE motherboard in Thin Mini-ITX format (17.2 × 17.2 cm) is based on the Intel H61 Express chipset and supports Intel Core i7/i5/i3 (2nd generation) processors with TDP up to 65W in the LGA1155 socket. It features 2 SODIMM DDR3 slots supporting 1066/1333/1600MHz memory with a maximum capacity of 16GB. Integrated graphics depend on the processor, with video outputs including DVI-I, HDMI, eDP/LVDS, dual-monitor support, and Intel Clear Video technology. Storage options include 2 SATA2 (3.0 Gb/s) ports and 1 eSATA2 port. The built-in network controller is Intel 82579V Gigabit Ethernet (10/100/1000 Mbps), with no wireless connectivity. Rear panel connections include 2 USB 3.0 ports, 2 USB 2.0 ports, 1 RJ45 LAN port, 1 optical S/PDIF audio output, and 8 audio outputs. Internal connectors include 5 USB 2.0 ports, an infrared connector, and 2 front-panel audio outputs. Expansion slots consist of 1 PCIe x4 slot, 1 half-size Mini-PCIe slot, and 1 full-size Mini-PCIe slot. The board does not support ECC or RAID and is RoHS compliant.
Specifications Intel LGA1155 DH61AG_USE Thin Mini ITX Motherboard – Second Hand
General
| Manufacturer SKU | BOXDH61AG |
|---|---|
| Color | Black / Blue |
| Manufacturer | Intel |
| Model | DH61AG_USE |
Chipset
| Chipset Model | Intel H61 Express |
|---|
Connections
| Audio I/O Connectors | 10 channels (8 rear + 2 front) |
|---|---|
| Infrared Port | Yes |
| Network Port | 1× RJ45 LAN |
| Optical Audio Out | 1× S/PDIF |
| USB 2.0 | 10 (2 rear, 5 internal, 1 via HMC, 2 via FMC) |
| USB 3.0 | 2 rear |
Expansion Slots
| Mini-PCIe (Full) | 1 |
|---|---|
| Mini-PCIe (Half) | 1 |
| PCIe x4 | 1 |
Additional Features
| Board Form Factor | Thin Mini-ITX (6.7 × 6.7 in / 17.2 × 17.2 cm) |
|---|---|
| ECC Support | No |
| RAID Support | No |
| RoHS Compliance | Yes |
Communication
| Wireless Communication | No |
|---|---|
| Network Card | Intel 82579V Gigabit Ethernet (10/100/1000 Mbps) |
Display
| Dual Display Support | Yes |
|---|---|
| Graphic Outputs | DVI-I, HDMI, eDP/LVDS |
| Integrated Graphics | Depends on the processor |
| Intel Clear Video Technology | Yes |
Internal Memory
| Memory Slots | 2× SODIMM |
|---|---|
| Supported Memory Speed | DDR3-1066, DDR3-1333, DDR3-1600 |
| Maximum Memory Capacity | 16GB |
| Memory Type | DDR3 |
Processor
| Processor Support | Intel Core i7/i5/i3 from 2nd Generation (TDP up to 65W) |
|---|---|
| Socket | LGA1155 |
Storage
| eSATA Connectors | 1× eSATA2 (3.0 Gb/s) |
|---|---|
| SATA Connectors | 2× SATA2 (3.0 Gb/s) |
