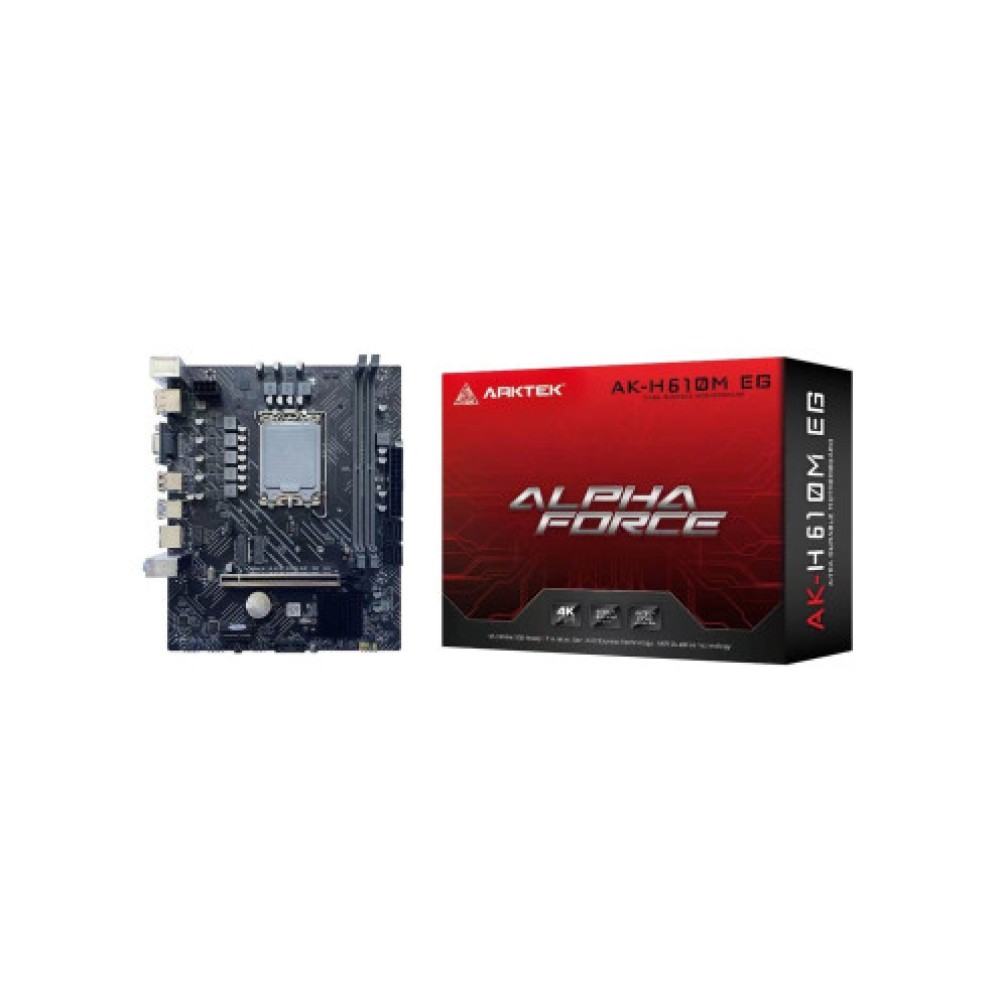

ARKTEK H610M EG VS Motherboard
₪292.00
ARKTEK H610M EG VS Motherboard
Specification
| ModelARKTEK H610M EG VS | DDR4 Slots2 | Memory TypeDDR4 |
| PCI-E x1 Slot1 | PCI-E x16 Slot1 | USB 3.02 |
| USB PortsUSB 2.0 / USB 3.0 | ChipsetIntel H610 | USB 2.02 |
Description

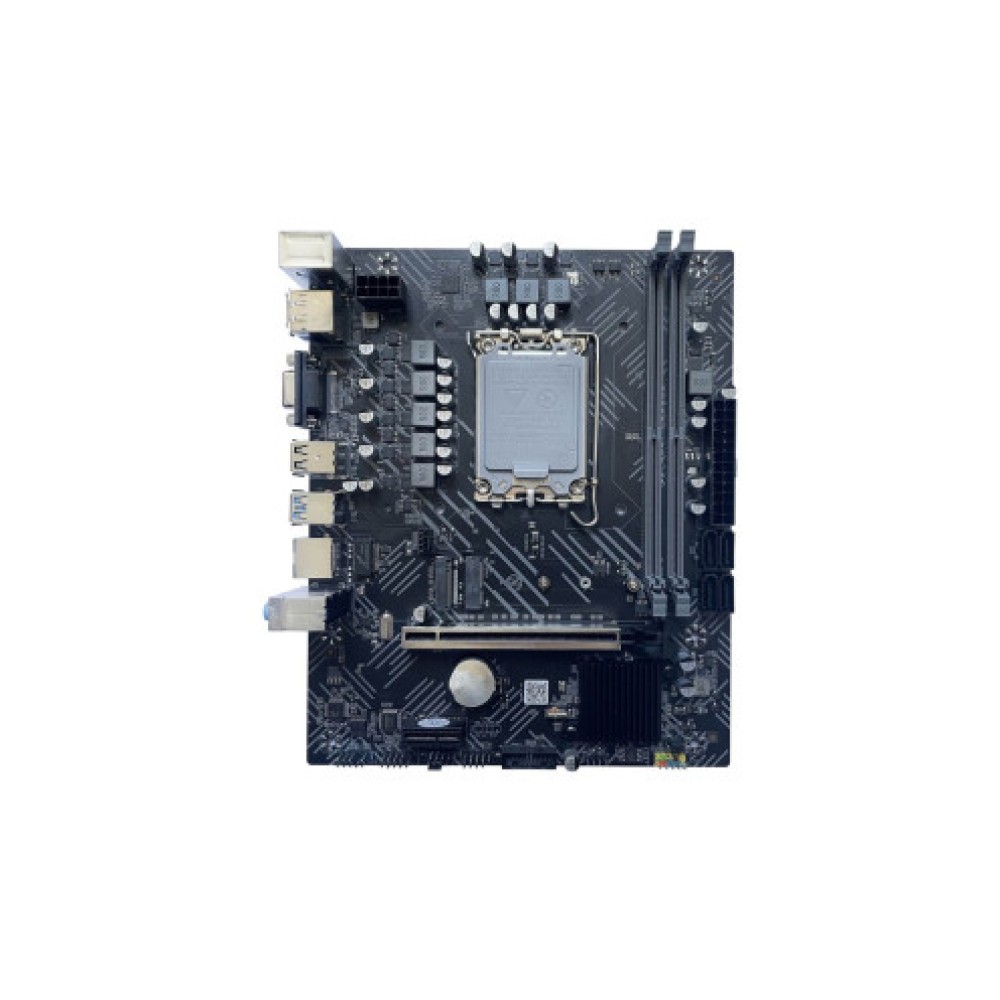

The ARKTEK H610M EG VS motherboard is equipped with an Intel H610 chipset and supports a 1700 CPU socket. The board comes in a Micro ATX form factor and offers a variety of graphic connections including VGA, HDMI, and DisplayPort. With an integrated sound card providing 3 ports, the board delivers quality audio solutions. The storage interface includes 4 SATA3 connections and one M.2 PCIe slot, allowing for fast drive connections. The board features PCIe 4.0 x16 and PCIe 3.0 x1 expansion slots, as well as 2 DDR4 memory slots. USB connections include 2 USB 2.0 ports and 2 USB 3.0 ports, ensuring great flexibility for connecting external devices.
Specifications ARKTEK H610M EG VS Motherboard
General
| Model | ARKTEK H610M EG VS |
|---|
Additional
| DDR4 Slots | 2 |
|---|---|
| Memory Type | DDR4 |
| PCI-E x1 Slot | 1 |
| PCI-E x16 Slot | 1 |
| USB 3.0 | 2 |
| USB Ports | USB 2.0 / USB 3.0 |
Chipset
| Chipset | Intel H610 |
|---|
Connections
| USB 2.0 | 2 |
|---|
Expansion
| Expansion Slots | PCIe 4.0 x16 / PCIe 3.0 x1 |
|---|
Graphics

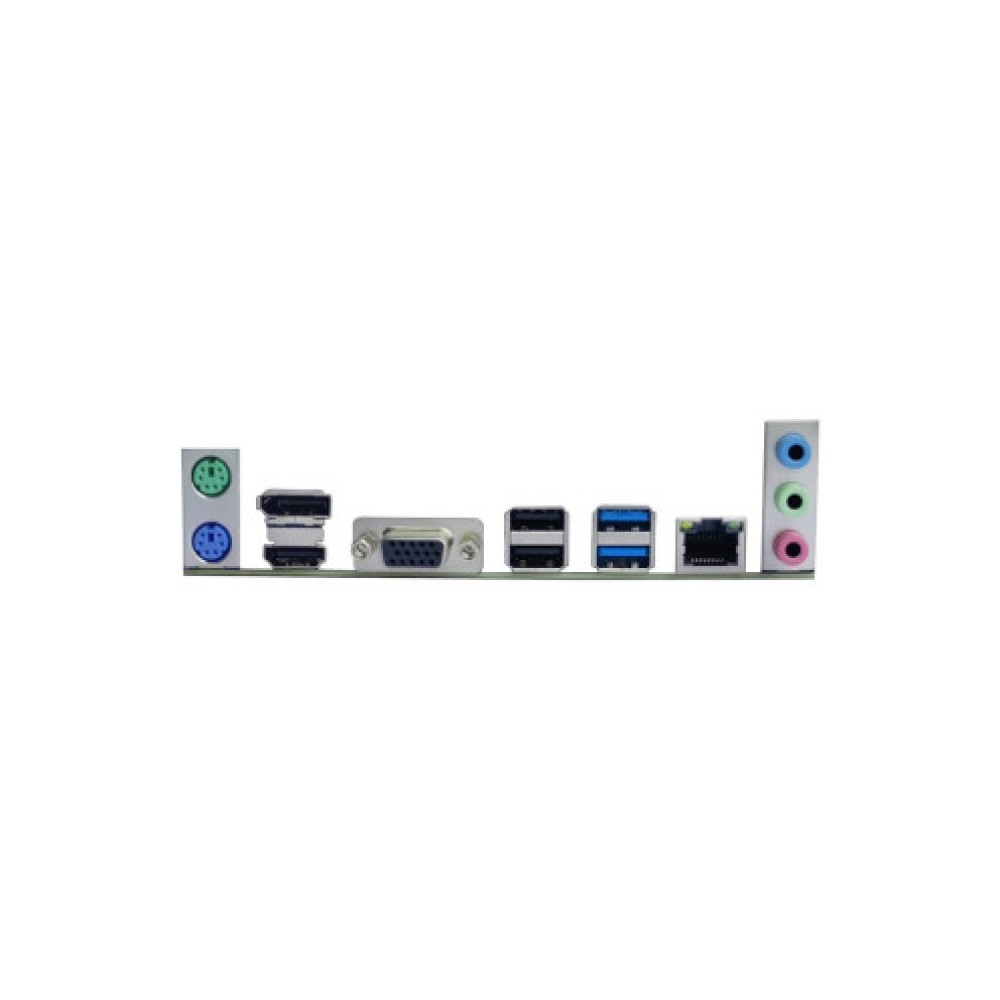

| Graphics Interface | VGA / HDMI / DisplayPort |
|---|
Structure
| Board Configuration | Micro ATX |
|---|
Audio
| Integrated Sound Card | 3 Ports |
|---|
Processor
| Processor Socket | 1700 |
|---|
Storage
| M.2 PCIe Connectors | 1 |
|---|---|
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 / M.2 PCIe |
