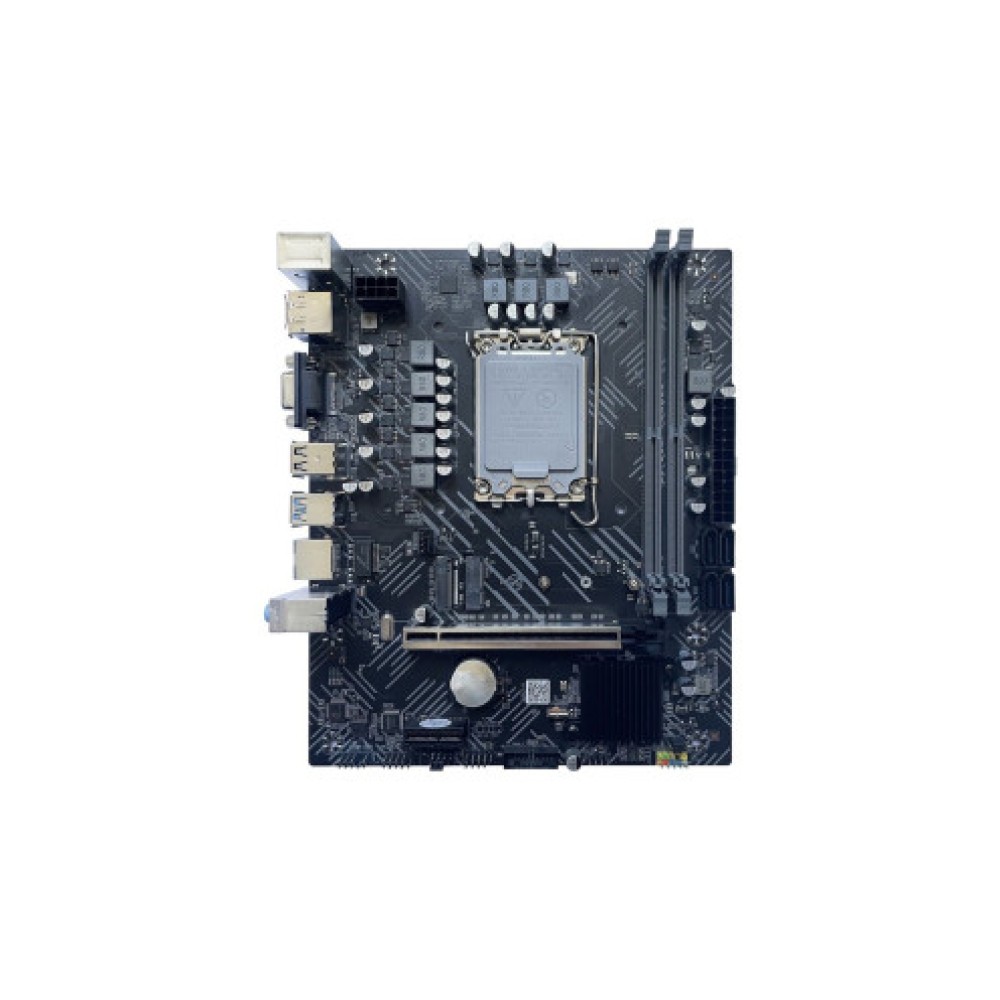

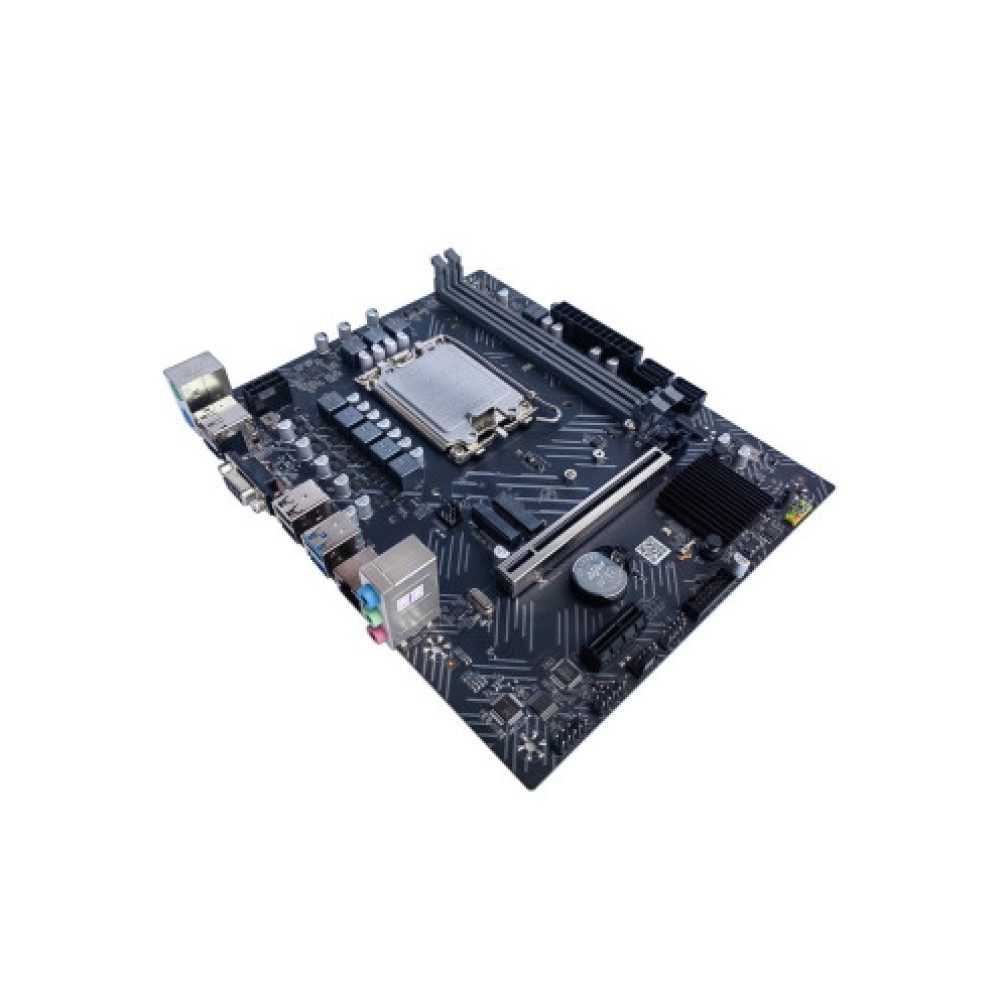

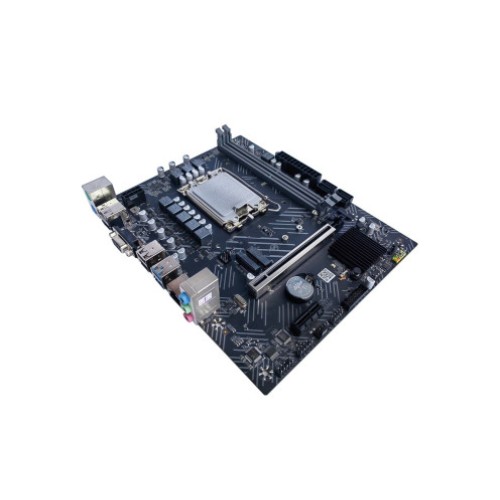

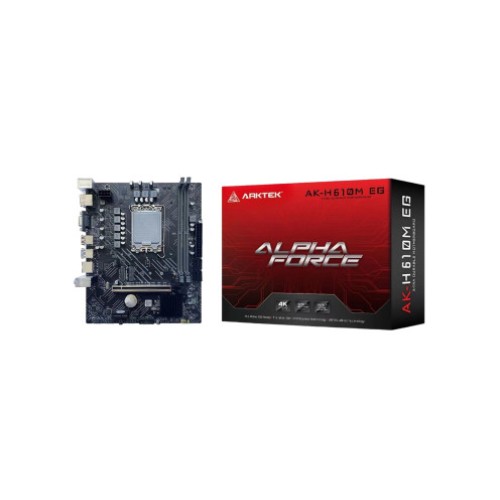

ARKTEK H610M EG Motherboard
₪292.00
ARKTEK H610M EG Motherboard
Specification
| ModelARKTEK H610M EG | DDR4 Slots2 | Memory TypeDDR4 |
| PCI-E x1 Slot1 | PCI-E x16 Slot1 | USB 3.03 |
| USB PortsUSB 2.0 \ USB 3.0 | ChipsetIntel H610 | USB 2.04 |
Description
The ARKTEK H610M EG motherboard offers high performance with the Intel H610 chipset and a 1700 CPU socket. The ATX-formatted board includes a variety of graphic connections with VGA, HDMI, and DisplayPort, and provides 1 Gigabit LAN connections. With an integrated 3-port audio card, the motherboard supports advanced storage interfaces including 4 SATA3 connections and 1 M.2 PCIe connection. The board is equipped with PCIe 4.0 x16 and PCIe 4.0 x1 expansion slots, and provides 4 USB 2.0 connections and 3 USB 3.0 connections. Supporting DDR4 memory with 2 slots, the motherboard offers an ideal solution for advanced computer systems.
Specifications ARKTEK H610M EG Motherboard
General
| Model | ARKTEK H610M EG |
|---|
Additional
| DDR4 Slots | 2 |
|---|---|
| Memory Type | DDR4 |
| PCI-E x1 Slot | 1 |
| PCI-E x16 Slot | 1 |
| USB 3.0 | 3 |
| USB Ports | USB 2.0 \ USB 3.0 |
Chipset
| Chipset | Intel H610 |
|---|
Connections
| USB 2.0 | 4 |
|---|
Expansion
| Expansion Slots | PCIe 4.0 x16 \ PCIe 4.0 x1 |
|---|
Graphics

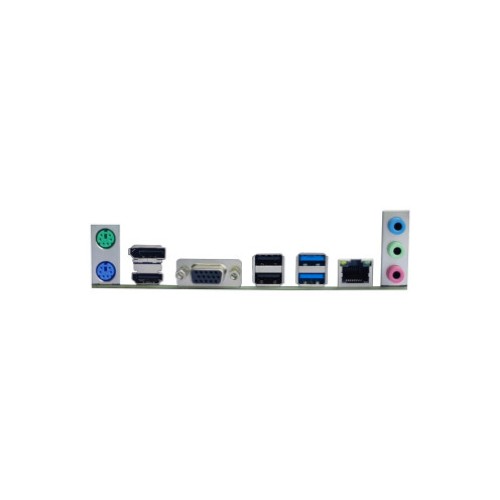

| Graphics Interface | VGA \ HDMI \ DisplayPort |
|---|
Network
| Communication Interfaces | LAN 1 Gigabit |
|---|
Structure
| Board Configuration | ATX |
|---|
Audio
| Integrated Sound Card | 3 ports |
|---|
Processor
| Processor Socket | 1700 |
|---|
Storage
| M.2 PCIe Connectors | 1 |
|---|---|
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 \ M.2 PCIe |
