ASUS Motherboard LGA1151 H110M-K
₪160.00
ASUS Motherboard LGA1151 H110M-K
Specification
| SocketLGA1151 | Supported ProcessorsIntel Core i3 / Core i5 / Core i7 / Celeron / Pentium | ManufacturerAsus |
| ModelH110M-K | Audio ControllerRealtek ALC887 | Audio System7.1 channels |
| ChipsetIntel H110 | PCI-E 16x1 | PCI-E 1x2 |
Description

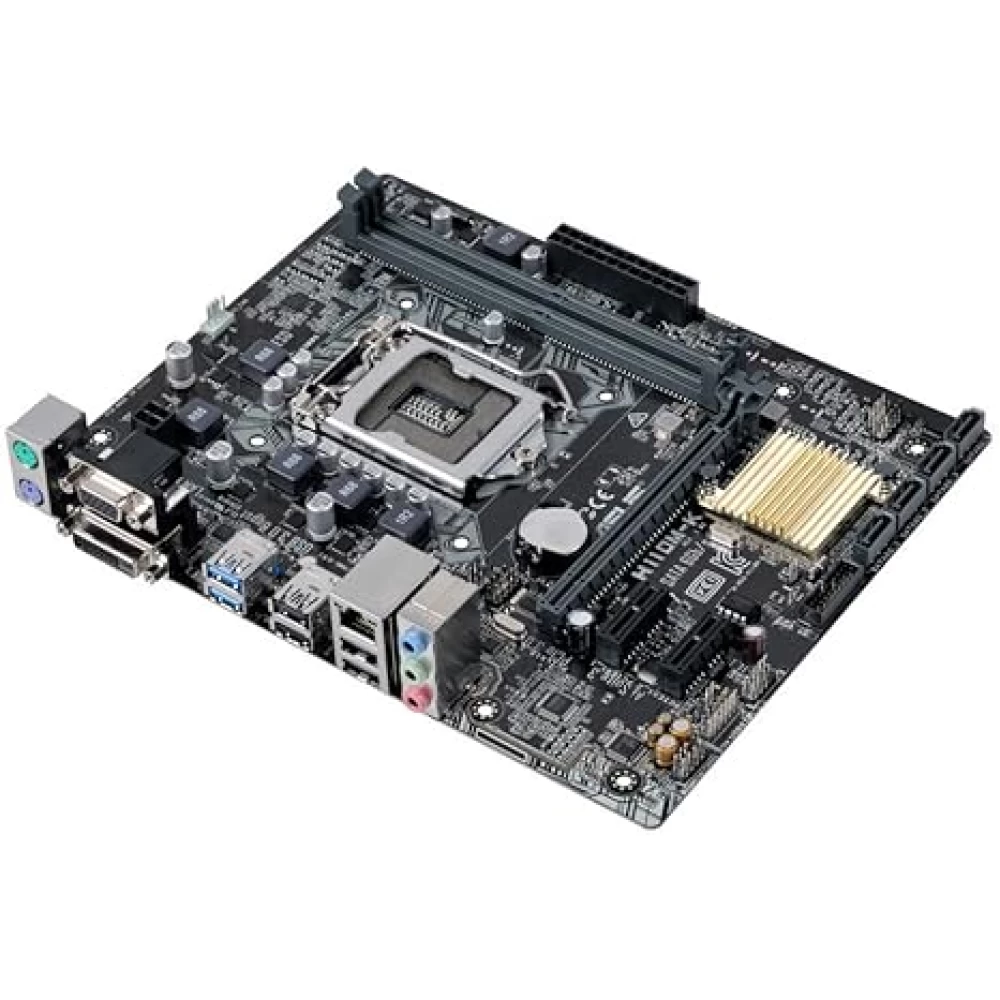

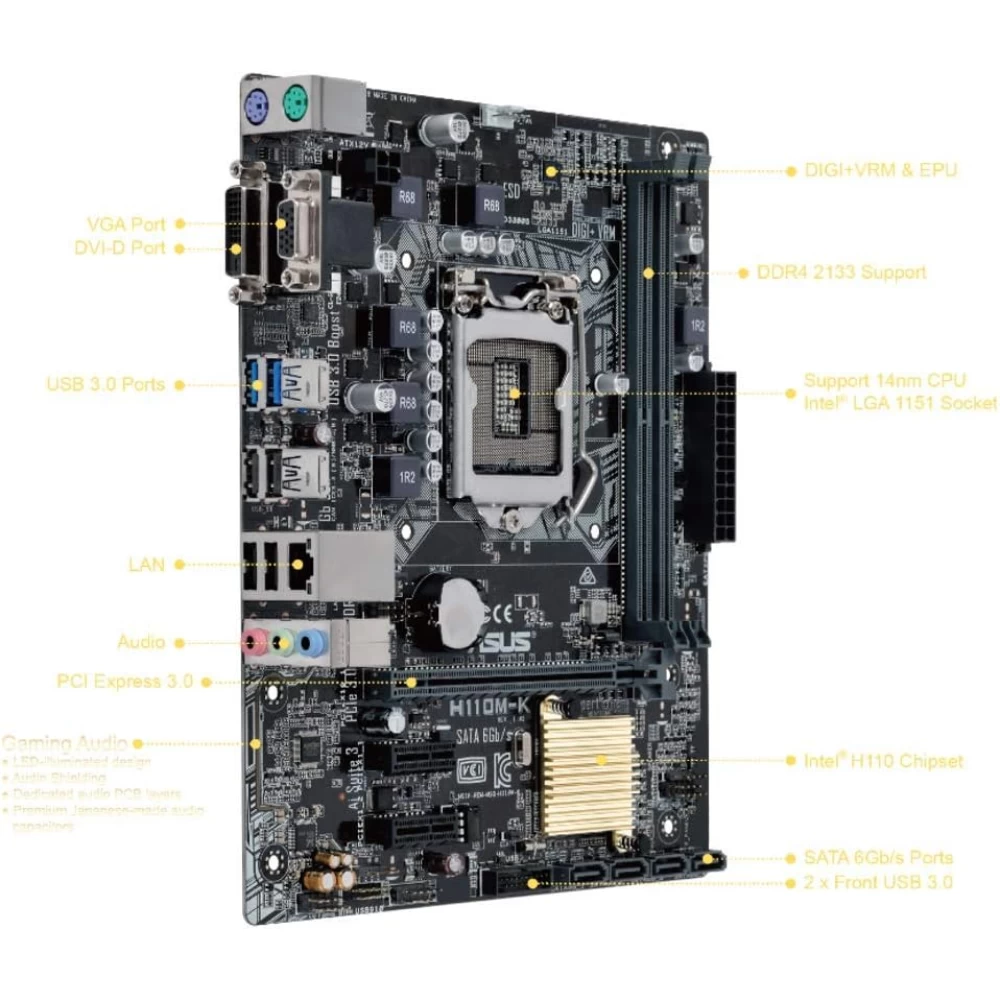

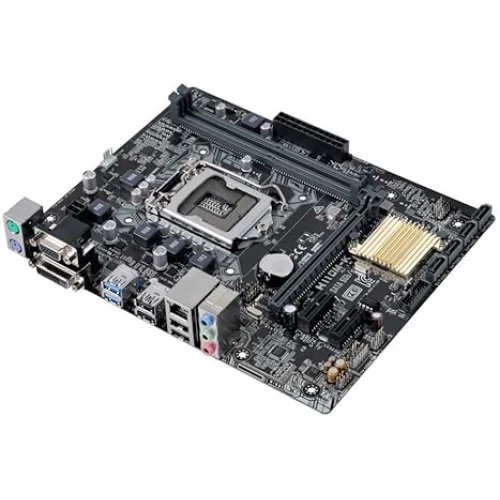

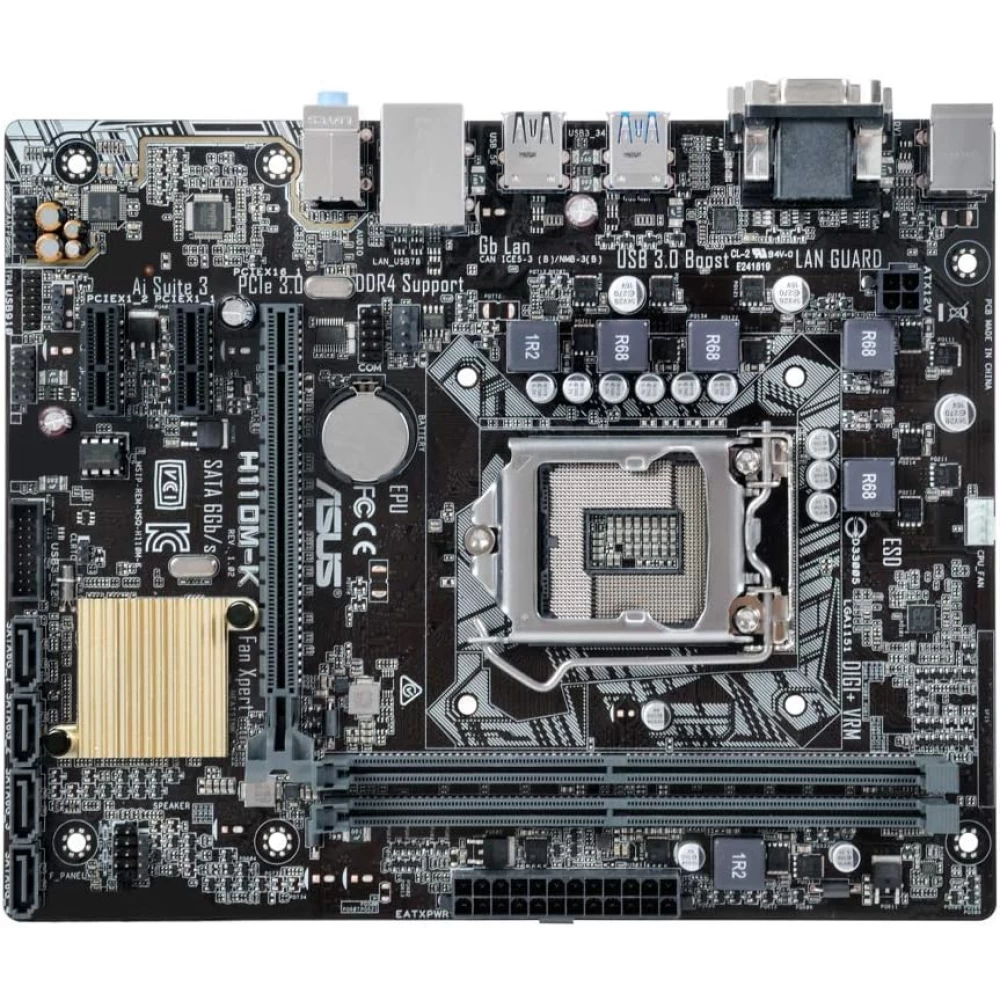

The Asus H110M-K motherboard with the Intel H110 chipset for the LGA1151 socket supports Intel Core i3/i5/i7, Celeron, and Pentium processors. It features 2 DDR4 DIMM memory slots running at 2133 MHz, with dual-channel support and a maximum capacity of 32 GB. It provides one PCI-E 16x expansion slot and two PCI-E 1x slots. The board includes 4 SATA 6Gb/s connectors for storage. It is equipped with a Realtek RTL8111H network card with a speed of 1 Gbps, a Realtek ALC887 7.1-channel audio card, and video outputs D-Sub and DVI (without HDMI). It comes with 4 USB 3.0 ports, 6 USB 2.0 ports, PS/2 connectors for a keyboard and mouse, and an RJ-45 LAN port. It requires a power supply with 24-pin and 4-pin connectors for the CPU. The board is offered in a MicroATX form factor with a one-year warranty.
Specifications ASUS Motherboard LGA1151 H110M-K
General
| Socket | LGA1151 |
|---|---|
| Supported Processors | Intel Core i3 / Core i5 / Core i7 / Celeron / Pentium |
| Manufacturer | Asus |
| Model | H110M-K |
Audio
| Audio Controller | Realtek ALC887 |
|---|---|
| Audio System | 7.1 channels |
Chipset
| Chipset | Intel H110 |
|---|
Expansion Slots
| PCI-E 16x | 1 |
|---|---|
| PCI-E 1x | 2 |
Form Factor
| Format | mATX |
|---|

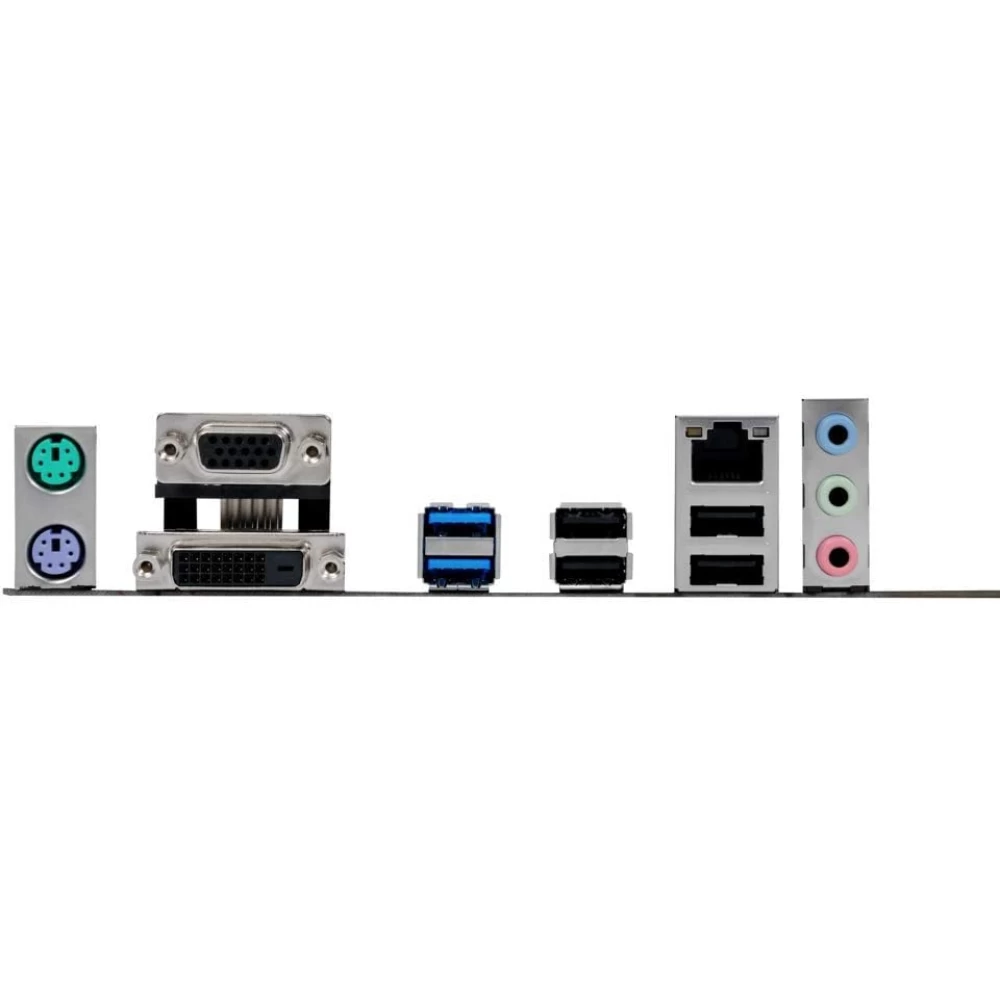

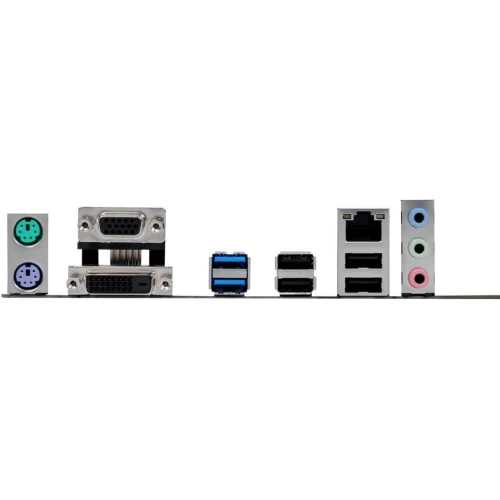

Interfaces
| DVI | Yes |
|---|---|
| HDMI | No |
| PS/2 (Keyboard) | Yes |
| PS/2 (Mouse) | Yes |
| RJ45 (LAN) | 1 |
| USB 2.0 | 6 |
| USB 3.0 | 4 |
| VGA (D-Sub) | Yes |
Network
| Network Adapter | Realtek RTL8111H, 1000Mbps |
|---|
Power
| Main Power Connector | 24-pin |
|---|---|
| Processor Power Connector | 4-pin |
Video
| Integrated Video Adapter | Yes |
|---|
Internal Memory
| Dual Channel Support | Yes |
|---|---|
| ECC Support | No |
| Maximum Memory Capacity | 32GB |
| Memory Frequency | 2133 MHz |
| Number of Memory Slots | 2 |
| Memory Type | DDR4 DIMM |
Storage
| SATA 6 Gb/s Connectors | 4 |
|---|
Warranty
| Warranty Period | One year |
|---|
