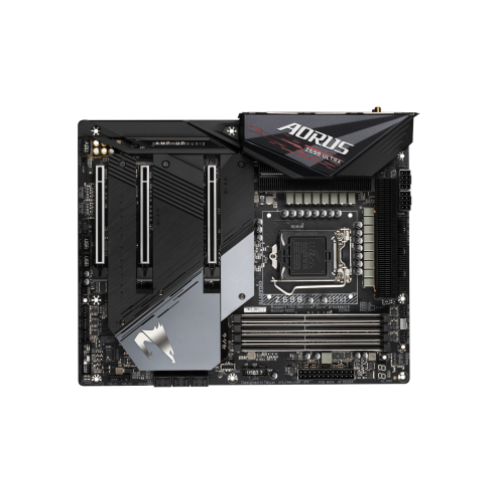

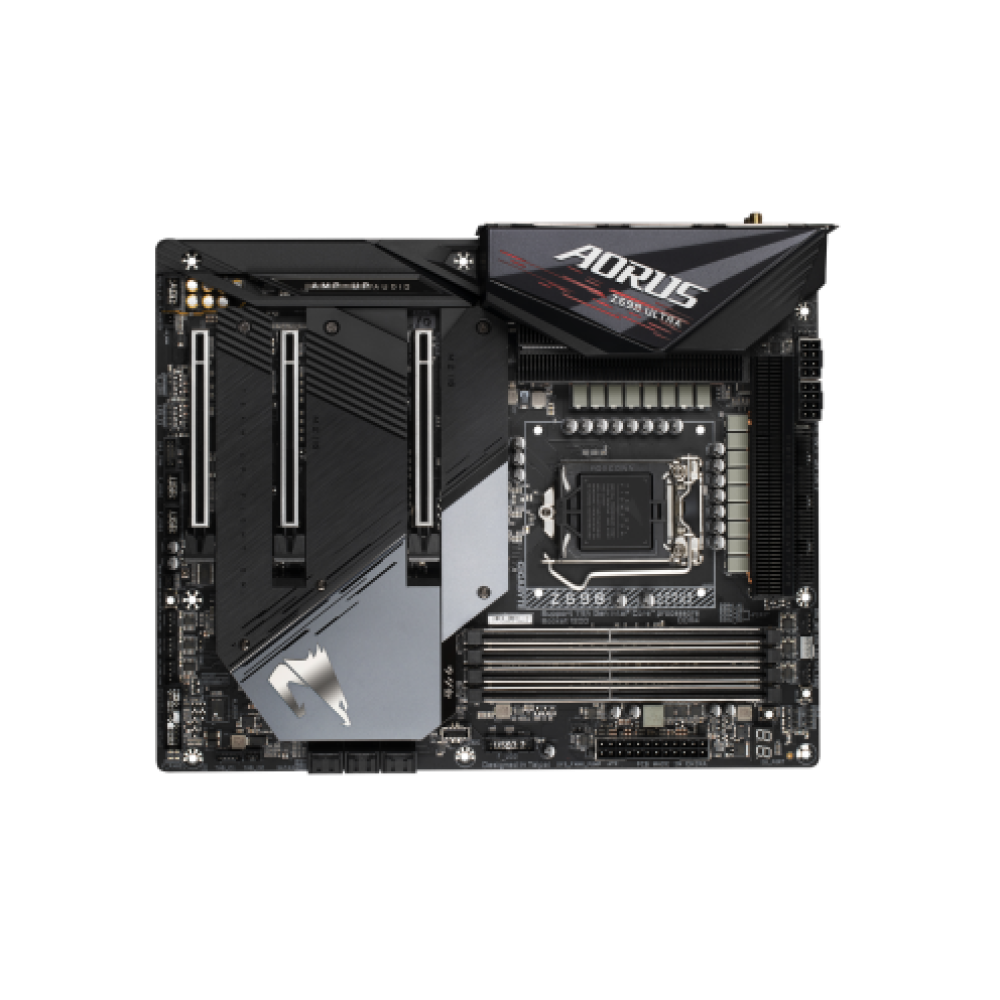

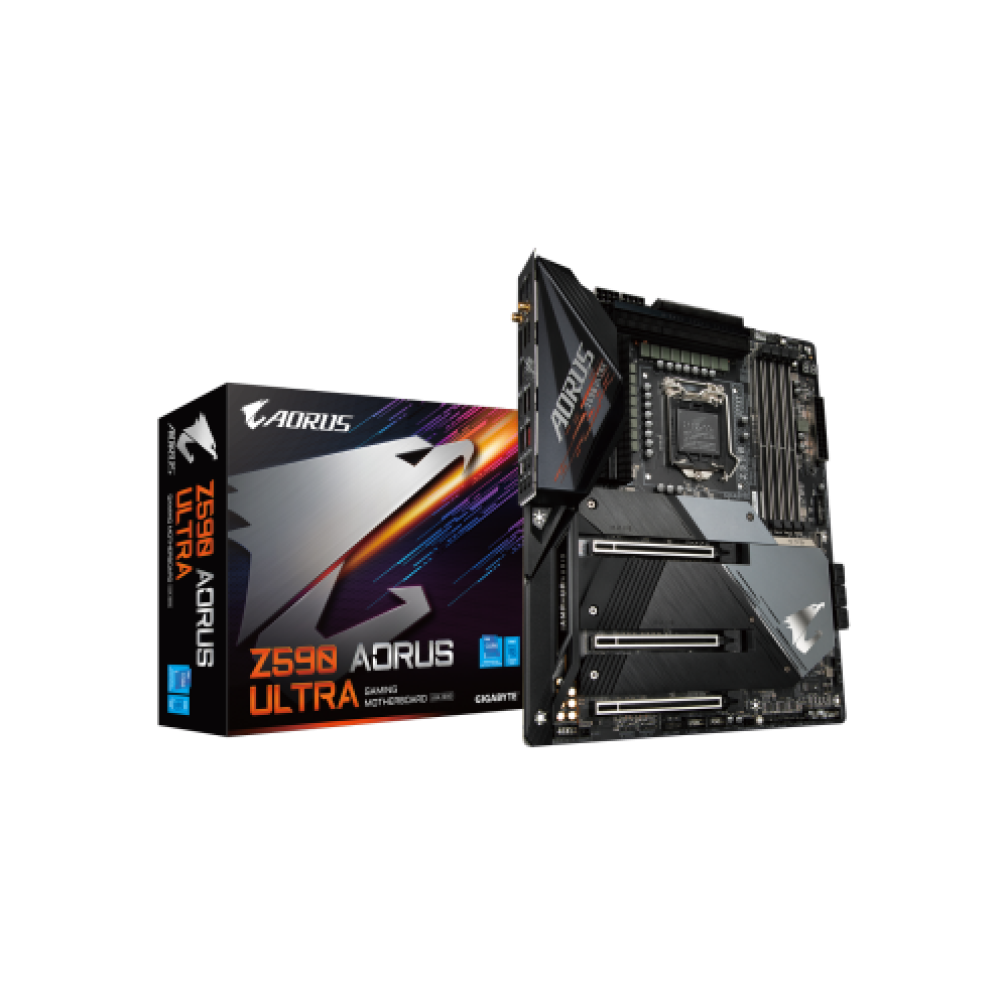

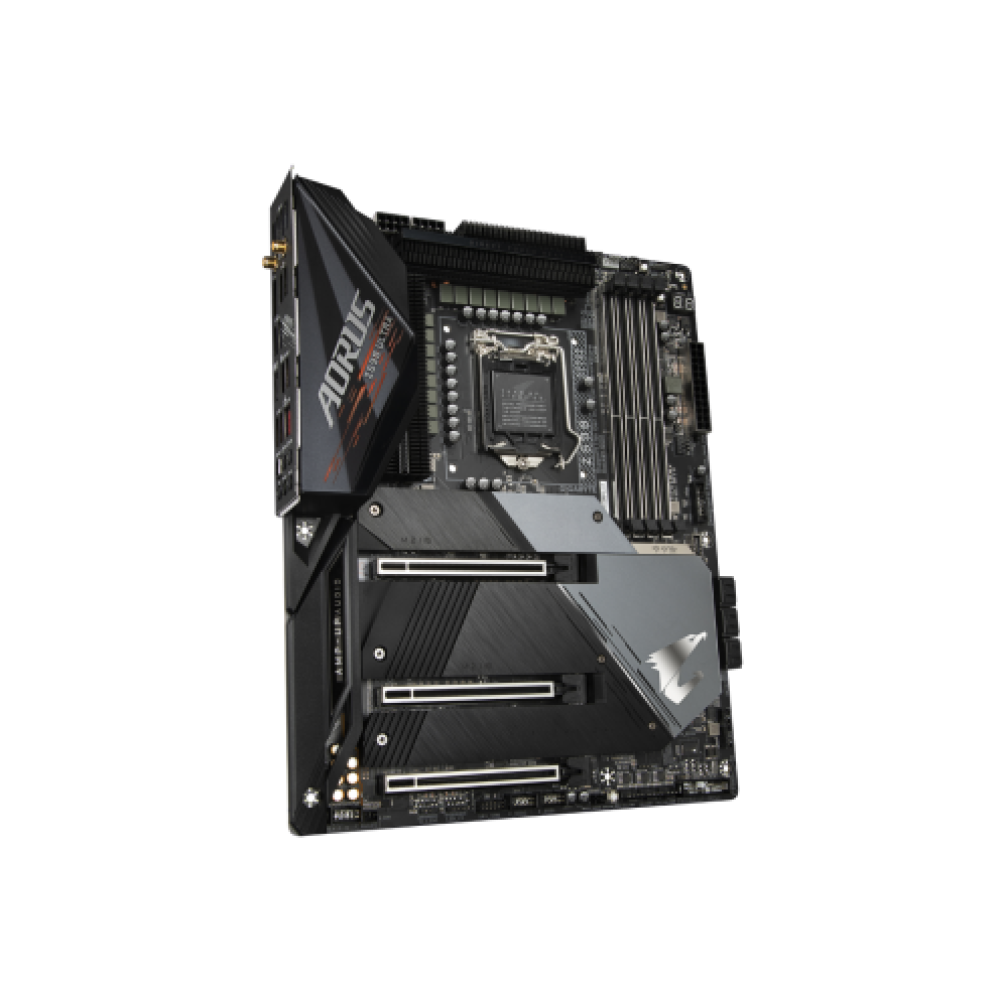

GIGABYTE Z590 AORUS ULTRA Motherboard
₪1187.00
GIGABYTE Z590 AORUS ULTRA Motherboard
Specification
| ModelGIGABYTE Z590 AORUS ULTRA | Warranty3 Years | DDR4 Slots4 |
| Memory TypeDDR4 | PackagingRetail - box | PCI-E x16 (x4) Slot1 |
| PCI-E x16 (x8) Slot1 | PCI-E x16 Slot1 | Thunderbolt2x Add-in card connectors |
Description
The GIGABYTE Z590 AORUS ULTRA motherboard offers high performance with the Intel Z590 chipset and LGA 1200 socket. The ATX form factor board includes a DisplayPort graphics connection and USB Type-C, providing advanced connectivity options such as Wi-Fi 6/6E (802.11ax), 2.5 Gigabit LAN, and Bluetooth 5.1. The integrated audio card supports 5 ports and S/PDIF. The storage interface includes 6 SATA3 connections and 2 + 1 M.2 PCIe connections, with support for RAID 0, 1, 5, and 10. The board is equipped with various expansion slots, including a Trusted Platform Module (TPM) and PCIe 4.0. With 4 DDR4 memory slots, 10 USB 3.2 ports, and 8 USB 2.0 ports, the board offers great flexibility. Additionally, it supports Thunderbolt connections with 2 add-in card connectors. The board comes in retail packaging with a 3-year warranty.
Specifications GIGABYTE Z590 AORUS ULTRA Motherboard
General
| Model | GIGABYTE Z590 AORUS ULTRA |
|---|---|
| Warranty | 3 Years |
Additional
| DDR4 Slots | 4 |
|---|---|
| Memory Type | DDR4 |
| Packaging | Retail - box |
| PCI-E x16 (x4) Slot | 1 |
| PCI-E x16 (x8) Slot | 1 |
| PCI-E x16 Slot | 1 |
| Thunderbolt | 2x Add-in card connectors |
| USB Ports | USB 2.0 \ USB 3.2 \ USB Type-C |
| USB Type-C Port | 2 |
| Wireless Network Card | Yes |
Chipset
| Chipset | Intel Z590 |
|---|
Connections
| USB 2.0 | 8 |
|---|---|
| USB 3.2 | 10 |
Expansion
| Expansion Slots | Trusted Platform Module (TPM) \ M.2 (CNVi / Wireless Module) \ PCIe 4.0 x16 \ PCIe 4.0 x16, mode x4 \ PCIe 4.0 x16, mode x8 |
|---|
Graphics
| Graphics Interface | DisplayPort \ USB Type-C |
|---|
Network
| Communication Interfaces | Wi-Fi 6/6E (802.11ax) \ LAN 2.5 Gigabit \ Bluetooth 5.1 |
|---|
Structure
| Board Configuration | ATX |
|---|
Audio
| Integrated Sound Card | 5 ports + S/PDIF |
|---|
Processor
| Processor Socket | 1200 |
|---|
Storage
| M.2 PCIe Connectors | 2 + 1 (SATA and PCIe SSD support) |
|---|---|
| RAID | 0,1,5,10 |
| SATA3 Connectors | 6 |
| Storage Interface | SATA3 \ M.2 PCIe \ M.2 SATA |
