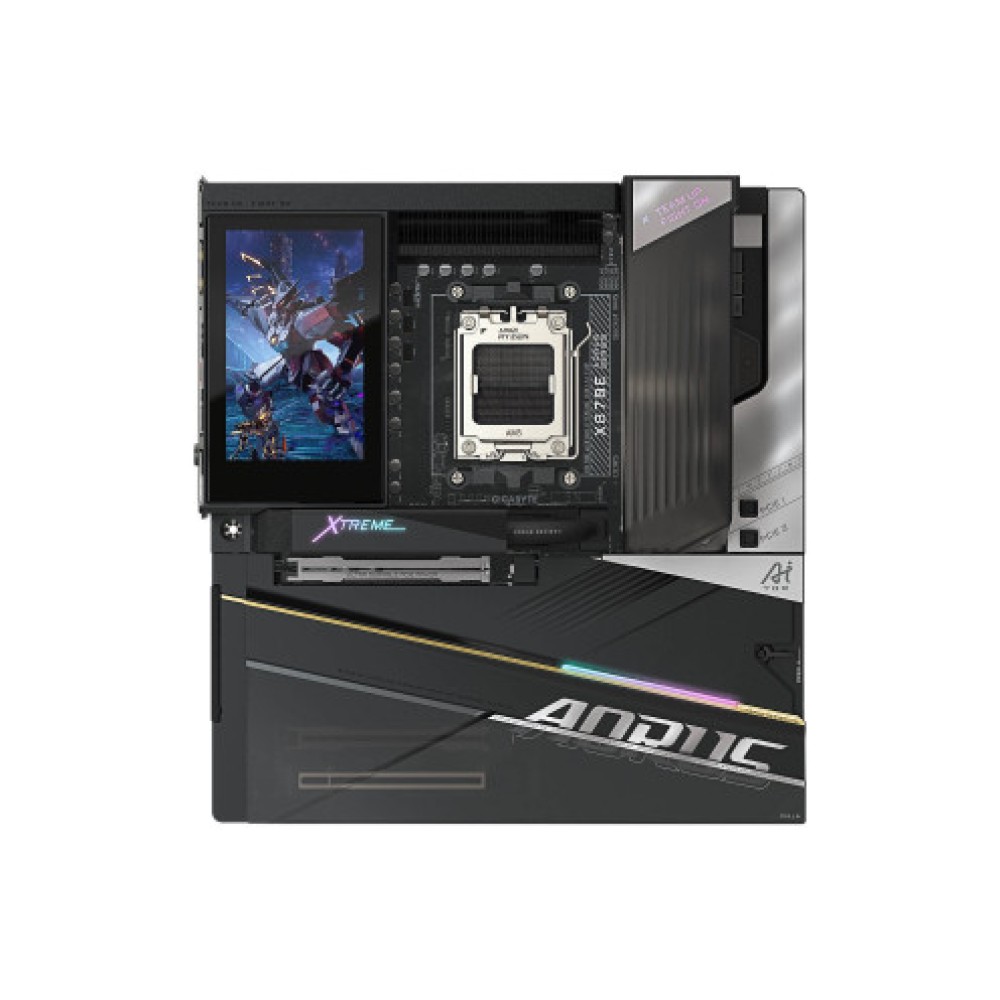

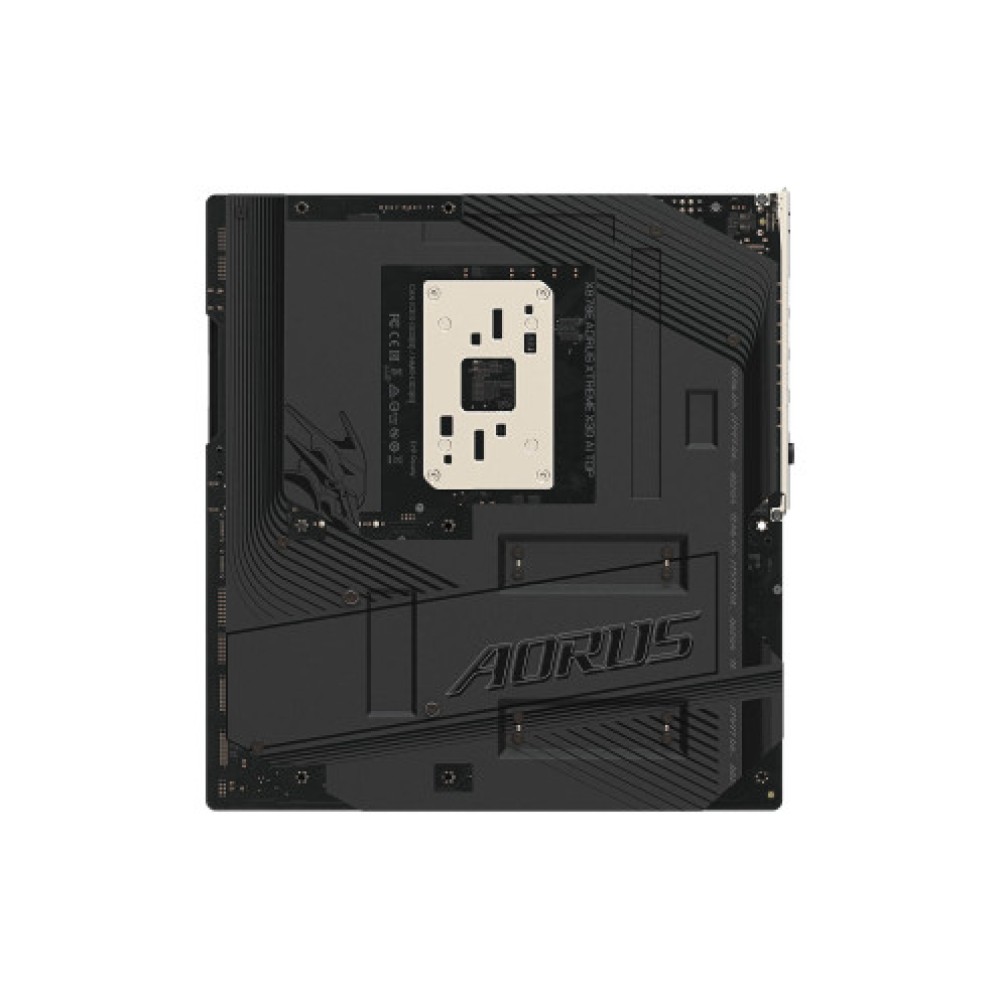

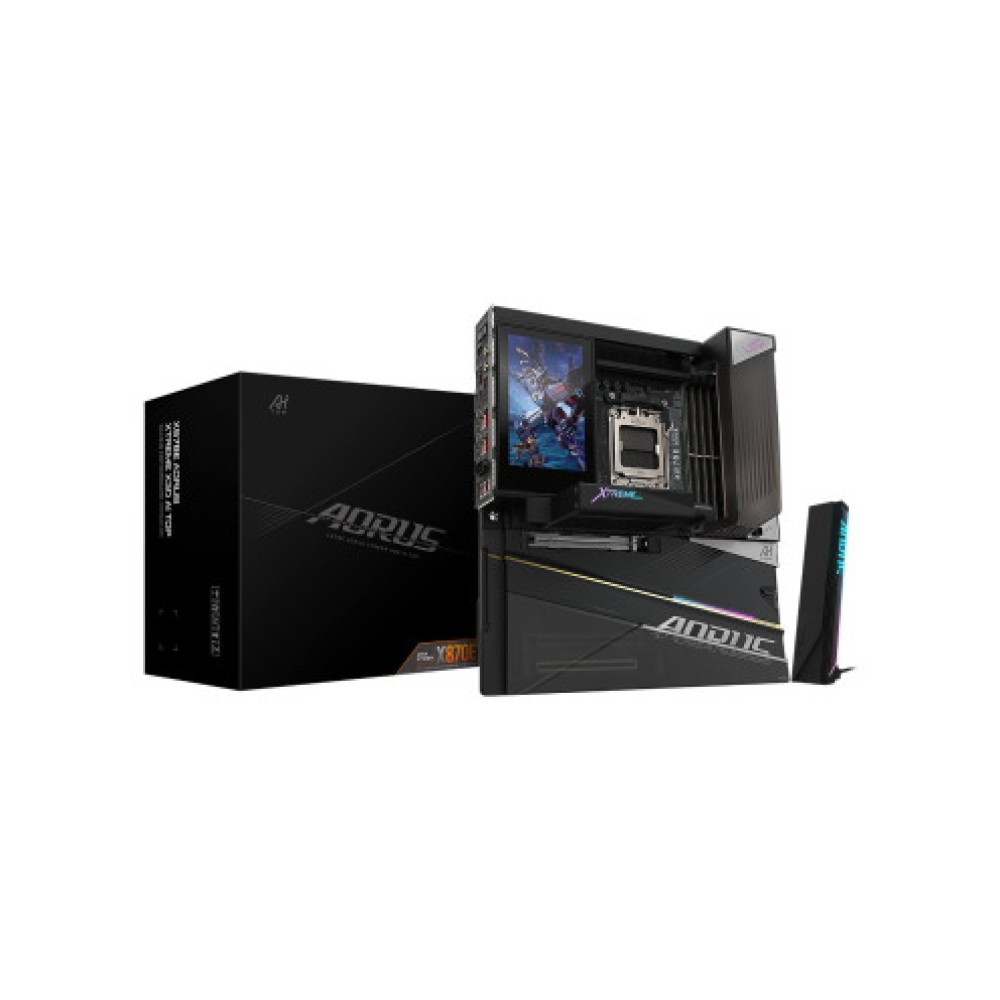

GIGABYTE X870E AORUS XTREME X3D AI TOP Motherboard
₪5598.00
GIGABYTE X870E AORUS XTREME X3D AI TOP Motherboard
Specification
| ModelGIGABYTE X870E AORUS XTREME X3D AI TOP | Warranty3 Years | DDR5 Slots4 |
| Memory TypeDDR5 | PCI-E x16 (x4) Slot1 | PCI-E x16 (x8) Slot1 |

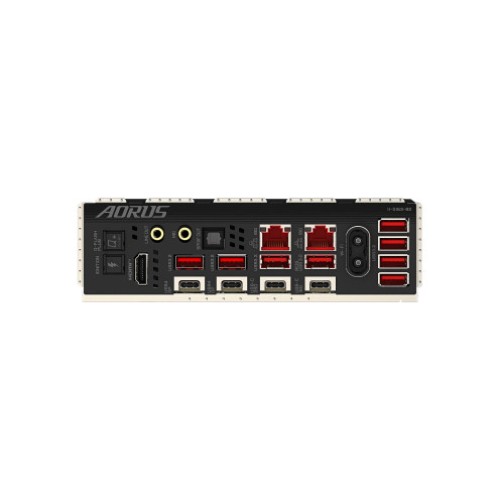

| PCI-E x16 Slot1 | USB PortsUSB 3.2 / USB Type-C | USB Type-C Port12 |
Description
The GIGABYTE X870E AORUS XTREME X3D AI TOP motherboard offers high performance with the AMD X870E chipset and AM5 CPU socket. Designed in ATX form factor, the motherboard includes an HDMI graphics connection and USB Type-C, providing advanced communication connections such as 10 Gigabit LAN, Wi-Fi 7 (802.11be), and Bluetooth 5.4. The integrated audio card supports 2 ports, and the motherboard offers a diverse storage interface with 2 SATA3 connections and 5 M.2 PCIe connections, including support for RAID 0, 1, 5, and 10. With PCIe 4.0 and 5.0 expansion slots, the motherboard supports DDR5 memory with 4 slots, and provides 6 USB 3.2 connections and 4 USB 2.0 connections. The motherboard comes with a 3-year warranty, ensuring reliability and performance over time.
Specifications GIGABYTE X870E AORUS XTREME X3D AI TOP Motherboard
General
| Model | GIGABYTE X870E AORUS XTREME X3D AI TOP |
|---|---|
| Warranty | 3 Years |
Additional
| DDR5 Slots | 4 |
|---|---|
| Memory Type | DDR5 |
| PCI-E x16 (x4) Slot | 1 |
| PCI-E x16 (x8) Slot | 1 |
| PCI-E x16 Slot | 1 |
| USB Ports | USB 3.2 / USB Type-C |
| USB Type-C Port | 12 |
| Wireless Network Card | Yes |
Chipset
| Chipset | AMD X870E |
|---|
Connections
| USB 2.0 | 4 |
|---|---|
| USB 3.2 | 6 |
Expansion
| Expansion Slots | PCIe 4.0 x16 (mode x4) / PCIe 5.0 x16 slot / PCIe 5.0 x16 (mode x8) |
|---|
Graphics
| Graphics Interface | HDMI / USB Type-C |
|---|
Network
| Communication Interfaces | LAN 10 Gigabit / Wi-Fi 7 (802.11be) / Bluetooth 5.4 |
|---|
Structure
| Board Configuration | ATX |
|---|
Audio
| Integrated Sound Card | 2 Ports |
|---|
Processor
| Processor Socket | AM5 |
|---|
Storage
| M.2 PCIe Connectors | 5 |
|---|---|
| RAID | 0,1,5,10 |
| SATA3 Connectors | 2 |
| Storage Interface | SATA3 / M.2 PCIe |
