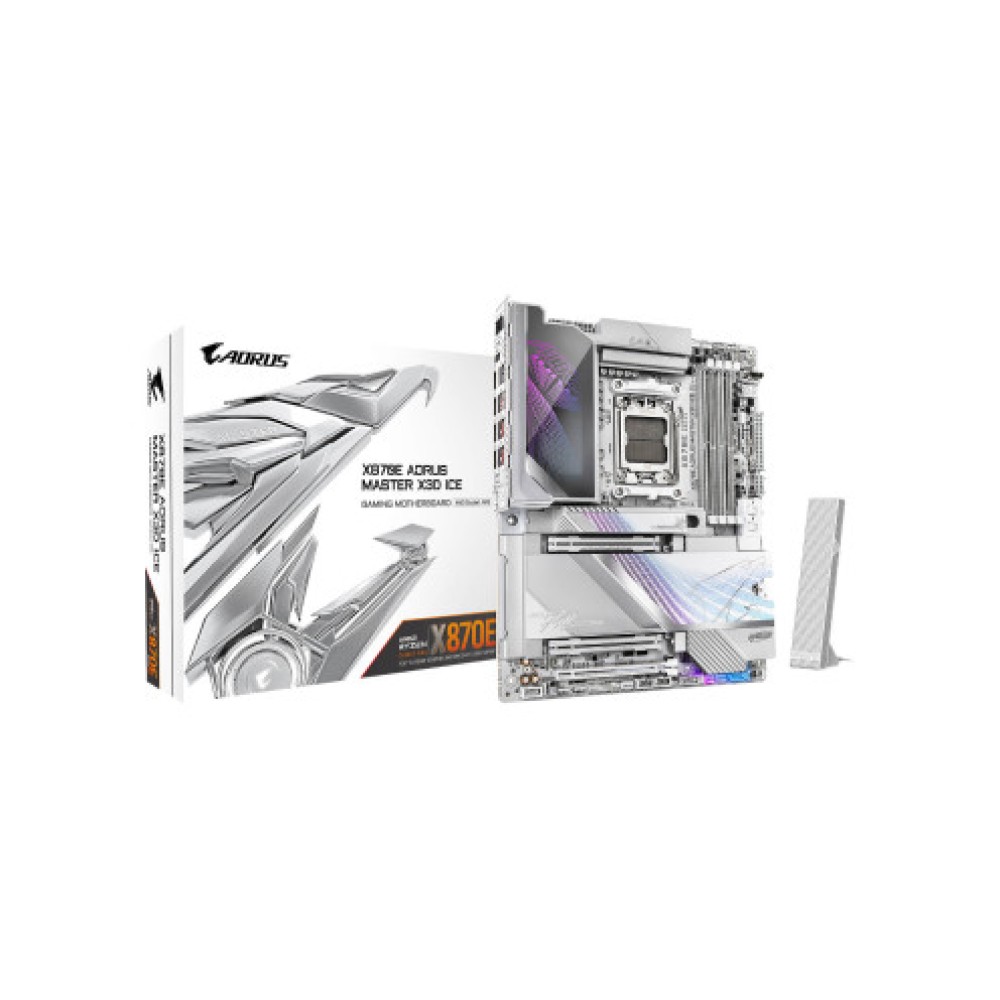

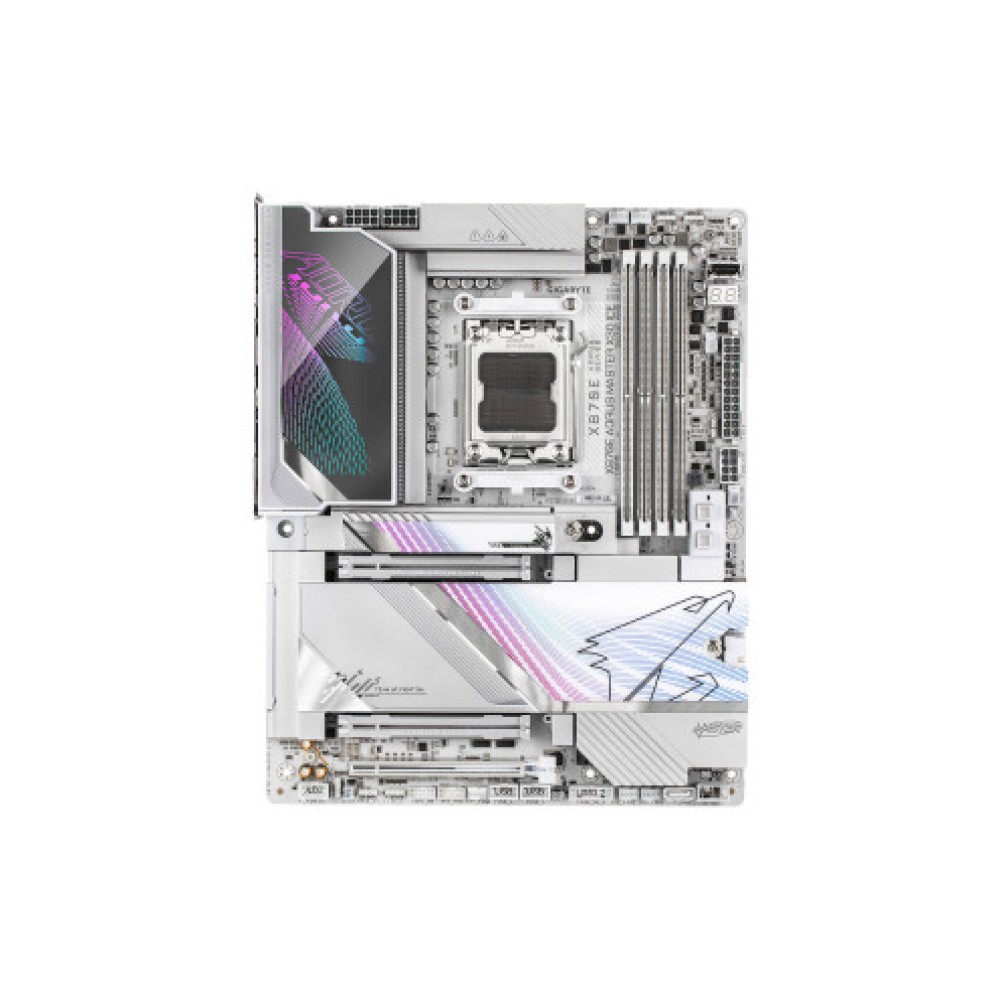

GIGABYTE X870E AORUS MASTER X3D ICE Motherboard
₪2575.00
GIGABYTE X870E AORUS MASTER X3D ICE Motherboard
Specification
| ModelGIGABYTE X870E AORUS MASTER X3D ICE | Warranty3 Years | DDR5 Slots4 |
| Memory TypeDDR5 | PCI-E x16 (x4) Slot1 | PCI-E x16 (x8) Slot1 |
| PCI-E x16 Slot1 | USB PortsUSB 2.0 / USB 3.2 / USB Type-C | USB Type-C Port5 |
Description
The GIGABYTE X870E AORUS MASTER X3D ICE motherboard offers high performance with the AMD X870E chipset and AM5 CPU socket. The board comes in an ATX form factor and provides graphical connectivity via HDMI and USB Type-C. Communication connections include 5 and 10 Gigabit LAN, Wi-Fi 7 (802.11be), and Bluetooth 5.4. The integrated sound card supports 2 ports and S/PDIF. The storage interface includes 2 SATA3 connections and 5 M.2 PCIe connections, with support for RAID 0, 1, 5, and 10. The board is equipped with expansion slots such as TPM, PCIe 4.0 x16, PCIe 5.0 x16, and an additional PCIe 5.0 x16 in x8 mode. With 11 USB 3.2 connections and 4 USB 2.0 connections, the board supports DDR5 memory with 4 slots.
Specifications GIGABYTE X870E AORUS MASTER X3D ICE Motherboard
General
| Model | GIGABYTE X870E AORUS MASTER X3D ICE |
|---|---|
| Warranty | 3 Years |
Additional
| DDR5 Slots | 4 |
|---|---|
| Memory Type | DDR5 |
| PCI-E x16 (x4) Slot | 1 |
| PCI-E x16 (x8) Slot | 1 |
| PCI-E x16 Slot | 1 |
| USB Ports | USB 2.0 / USB 3.2 / USB Type-C |
| USB Type-C Port | 5 |
| Wireless Network Card | Yes |
Chipset
| Chipset | AMD X870E |
|---|
Connections
| USB 2.0 | 4 |
|---|---|
| USB 3.2 | 11 |
Expansion
| Expansion Slots | Trusted Platform Module (TPM) / PCIe 4.0 x16 (mode x4) / PCIe 5.0 x16 slot / PCIe 5.0 x16 (mode x8) |
|---|
Graphics

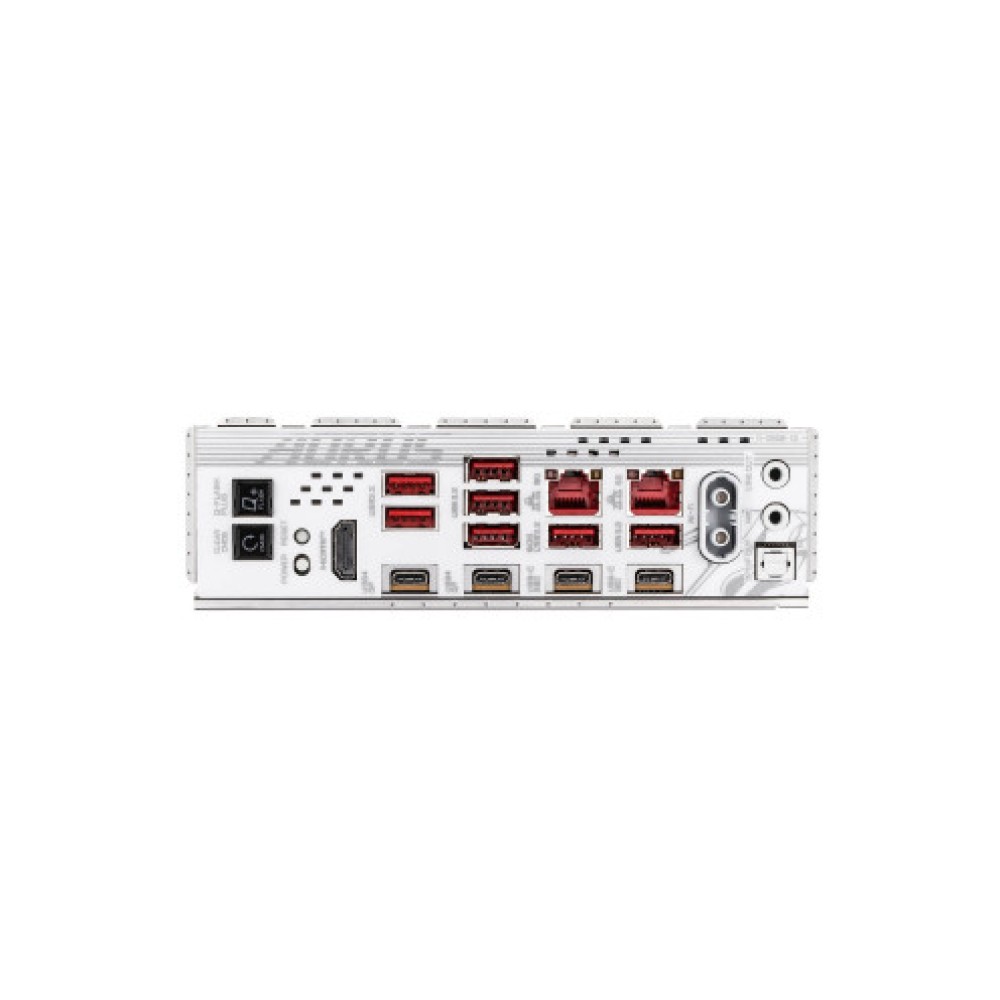

| Graphics Interface | HDMI / USB Type-C |
|---|
Network
| Communication Interfaces | LAN 5 Gigabit / LAN 10 Gigabit / Wi-Fi 7 (802.11be) / Bluetooth 5.4 |
|---|
Structure
| Board Configuration | ATX |
|---|
Audio
| Integrated Sound Card | 2 Ports + S/PDIF |
|---|
Processor
| Processor Socket | AM5 |
|---|
Storage
| M.2 PCIe Connectors | 5 |
|---|---|
| RAID | 0,1,5,10 |
| SATA3 Connectors | 2 |
| Storage Interface | SATA3 / M.2 PCIe |
