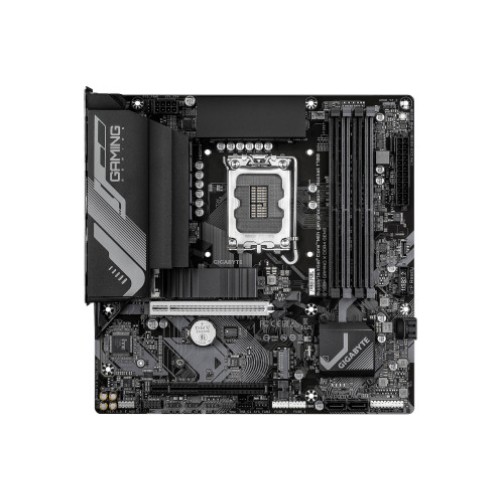

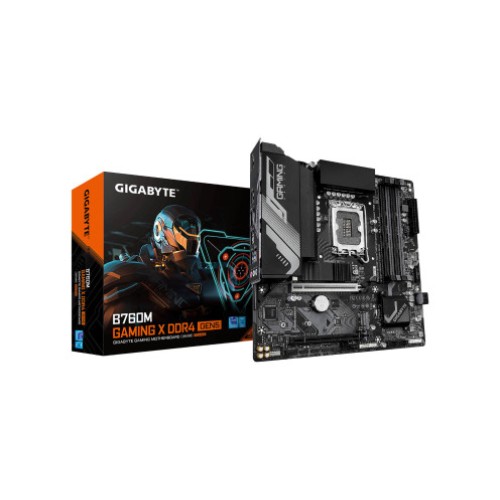

GIGABYTE B760M GAMING X DDR4 GEN5 Motherboard
₪592.00
GIGABYTE B760M GAMING X DDR4 GEN5 Motherboard
Specification
| ModelGIGABYTE B760M GAMING X DDR4 GEN5 | Warranty3 Years | DDR4 Slots4 |
| Memory TypeDDR4 | PCI-E x16 (x4) Slot1 | PCI-E x16 Slot1 |
| USB PortsUSB 2.0 / USB 3.2 / USB Type-C | USB Type-C Port1 | ChipsetB760 |
Description
The GIGABYTE B760M GAMING X DDR4 GEN5 motherboard offers high performance and advanced capabilities for gaming systems. With an Intel B760 chipset and a 1700 CPU socket, the motherboard supports DDR4 memory with 4 slots. The form factor is Micro ATX, allowing for easy installation in compact cases. The graphics connections include HDMI and DisplayPort, while the networking connections offer 2.5 Gigabit LAN. The motherboard features an integrated sound card with 3 ports, a diverse storage interface with 4 SATA3 connections and 2 M.2 PCIe connections, and support for RAID 0, 1, 5, 10 technology. Additionally, the board is equipped with expansion slots such as TPM, PCIe 5.0 x16, and PCIe 3.0 x16 (in x4 mode). USB connections include 5 USB 3.2 ports, 9 USB 2.0 ports, and one USB Type-C connection. With a 3-year warranty, the motherboard is an ideal solution for both gamers and professionals.
Specifications GIGABYTE B760M GAMING X DDR4 GEN5 Motherboard
General
| Model | GIGABYTE B760M GAMING X DDR4 GEN5 |
|---|---|
| Warranty | 3 Years |
Additional
| DDR4 Slots | 4 |
|---|---|
| Memory Type | DDR4 |
| PCI-E x16 (x4) Slot | 1 |
| PCI-E x16 Slot | 1 |
| USB Ports | USB 2.0 / USB 3.2 / USB Type-C |
| USB Type-C Port | 1 |
Chipset
| Chipset | B760 |
|---|
Connections
| USB 2.0 | 9 |
|---|---|
| USB 3.2 | 5 |
Expansion
| Expansion Slots | Trusted Platform Module (TPM) / PCIe 5.0 x16 slot / PCIe 3.0 x16 (mode x4) |
|---|
Graphics
| Graphics Interface | HDMI / DisplayPort |
|---|
Network
| Communication Interfaces | LAN 2.5 Gigabit |
|---|
Structure
| Board Configuration | Micro ATX |
|---|
Audio
| Integrated Sound Card | 3 Ports |
|---|
Processor
| Processor Socket | 1700 |
|---|
Storage
| M.2 PCIe Connectors | 2 |
|---|---|
| RAID | 0,1,5,10 |
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 / M.2 PCIe |
