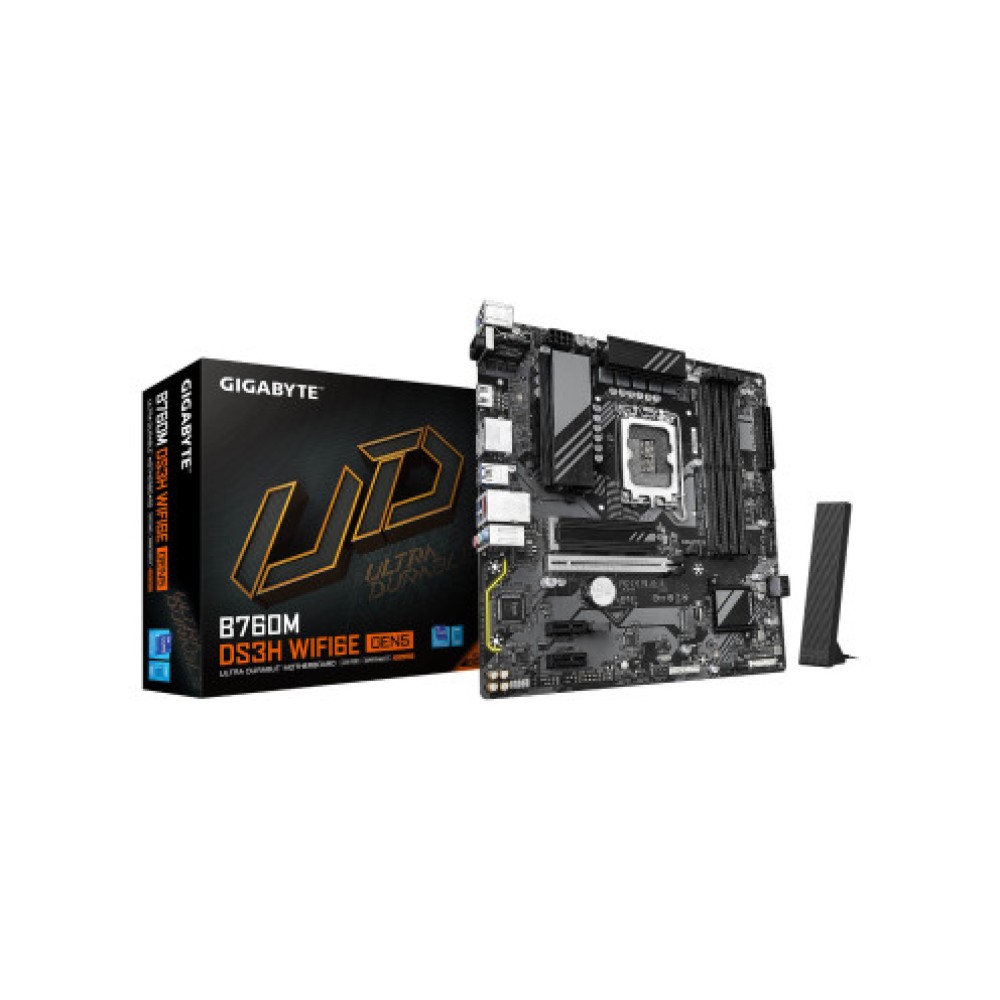

GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard
₪672.00
GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard
Specification
| ModelGIGABYTE B760M DS3H WIFI6E GEN5 | Warranty3 Years | DDR5 Slots4 |
| Memory TypeDDR5 | PCI-E x1 Slot2 | PCI-E x16 (x4) Slot1 |
| PCI-E x16 Slot1 | USB PortsUSB 2.0 / USB 3.2 / USB Type-C | USB Type-C Port1 |
Description

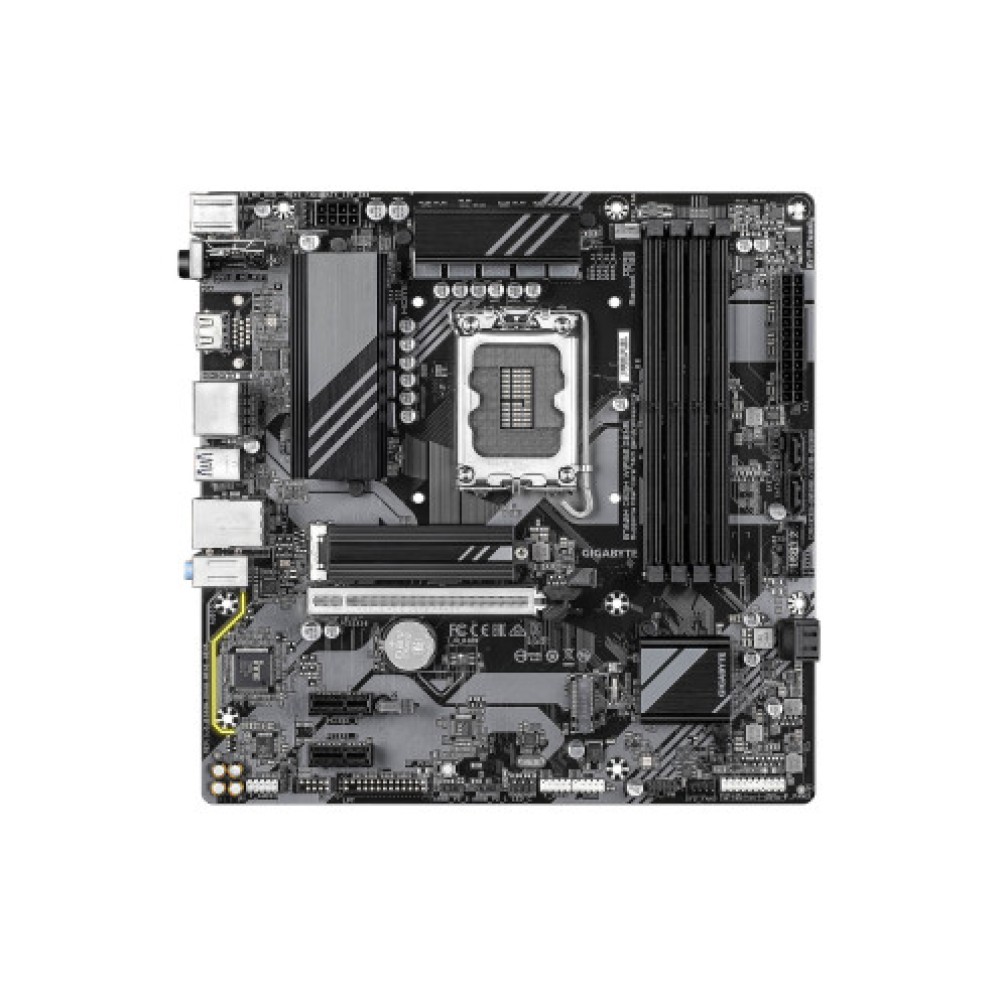

The GIGABYTE B760M DS3H WIFI6E GEN5 motherboard offers high performance and advanced expandability in a Micro ATX form factor. The board is based on the Intel B760 chipset and supports the LGA 1700 socket. It is equipped with HDMI and DisplayPort graphics connections, as well as advanced communication interfaces including Wi-Fi 6/6E (802.11ax), 2.5 Gigabit LAN, and Bluetooth 5.3. The board features an integrated audio card with 3 ports, a diverse storage interface with 4 SATA3 connections and 2 M.2 PCIe connections, and supports RAID 0, 1, 5, and 10 technologies. Additionally, there are expansion slots for TPM, PCIe 3.0 x1, and PCIe 5.0 x16. The board supports DDR5 memory with 4 slots and provides 5 USB 3.2 connections, 6 USB 2.0 connections, and a USB Type-C connection. With a 3-year warranty, the board is an ideal solution for building an advanced system.
Specifications GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard
General
| Model | GIGABYTE B760M DS3H WIFI6E GEN5 |
|---|---|
| Warranty | 3 Years |
Additional
| DDR5 Slots | 4 |
|---|---|
| Memory Type | DDR5 |
| PCI-E x1 Slot | 2 |
| PCI-E x16 (x4) Slot | 1 |
| PCI-E x16 Slot | 1 |
| USB Ports | USB 2.0 / USB 3.2 / USB Type-C |
| USB Type-C Port | 1 |
| Wireless Network Card | Yes |
Chipset
| Chipset | B760 |
|---|
Connections
| USB 2.0 | 6 |
|---|---|
| USB 3.2 | 5 |
Expansion
| Expansion Slots | Trusted Platform Module (TPM) / PCIe 3.0 x1 / PCIe 5.0 x16 slot |
|---|
Graphics

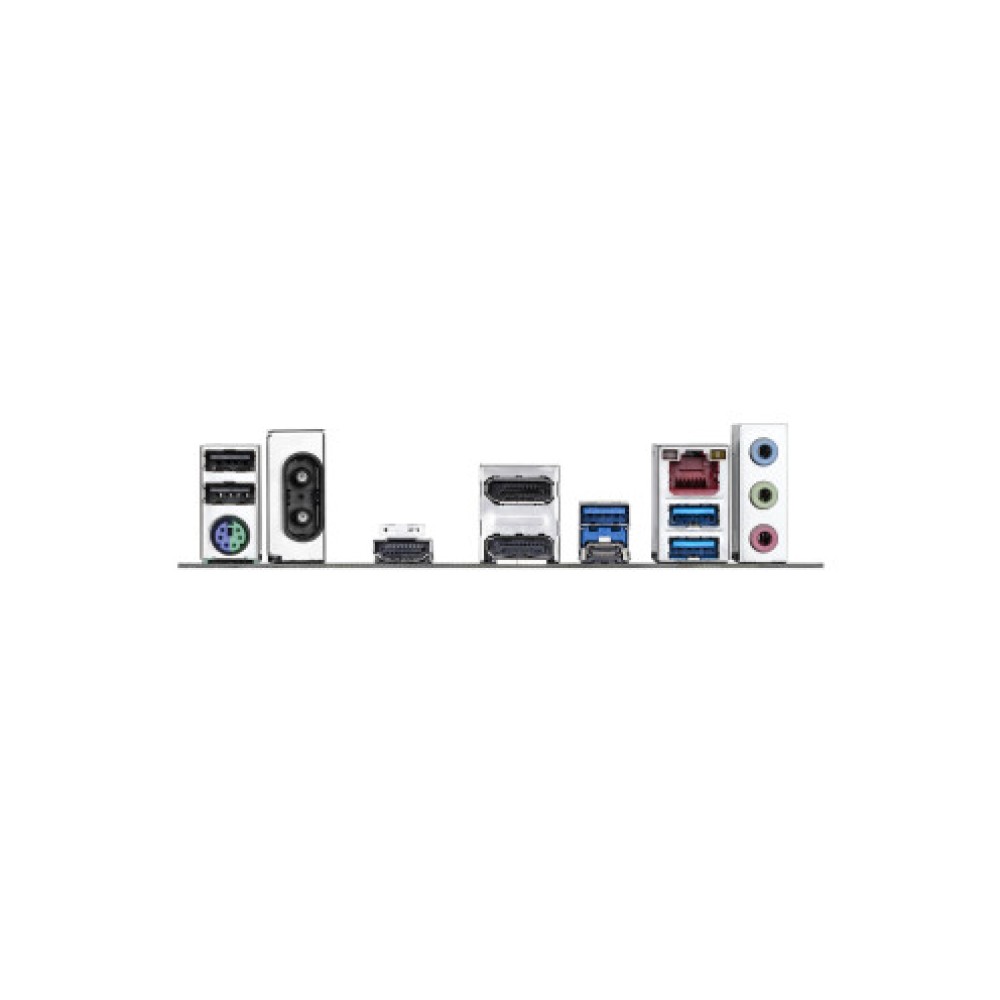

| Graphics Interface | HDMI / DisplayPort |
|---|
Network
| Communication Interfaces | Wi-Fi 6/6E (802.11ax) / LAN 2.5 Gigabit / Bluetooth 5.3 |
|---|
Structure
| Board Configuration | Micro ATX |
|---|
Audio
| Integrated Sound Card | 3 Ports |
|---|
Processor
| Processor Socket | 1700 |
|---|
Storage
| M.2 PCIe Connectors | 2 |
|---|---|
| RAID | 0,1,5,10 |
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 / M.2 PCIe |
