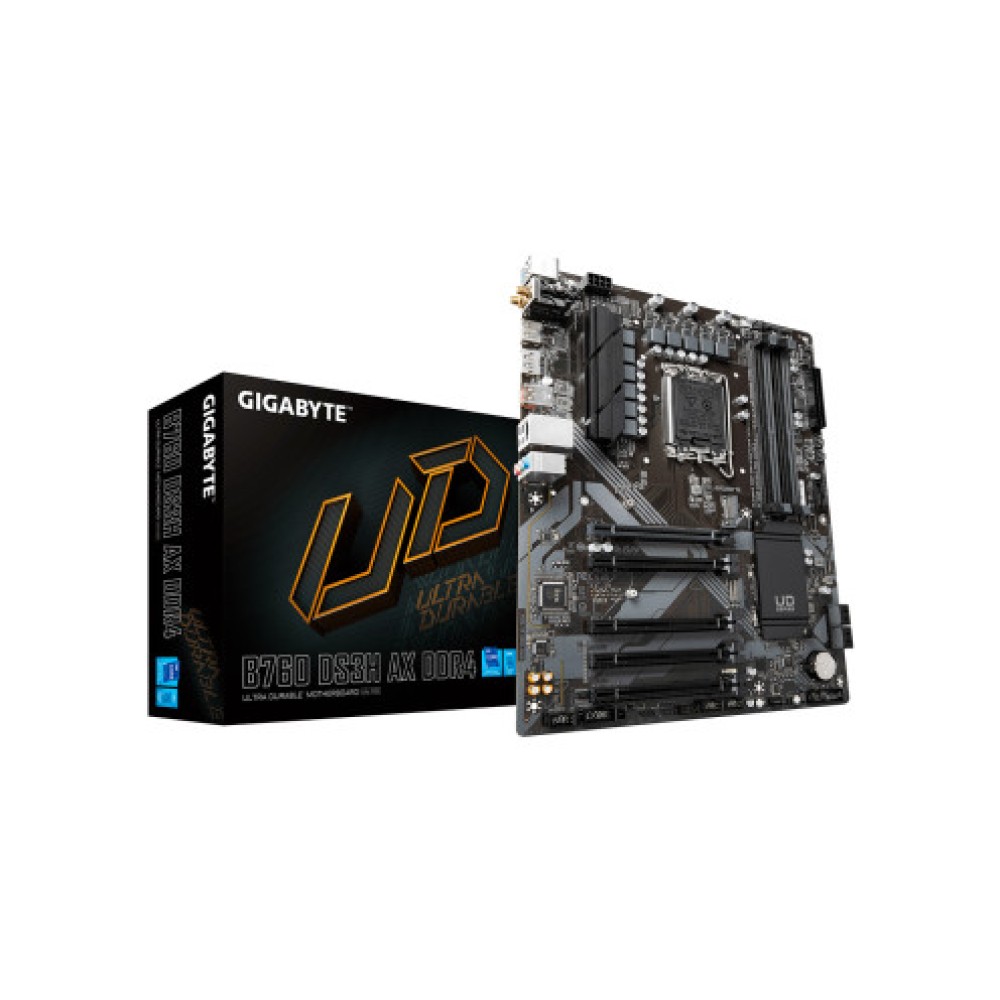

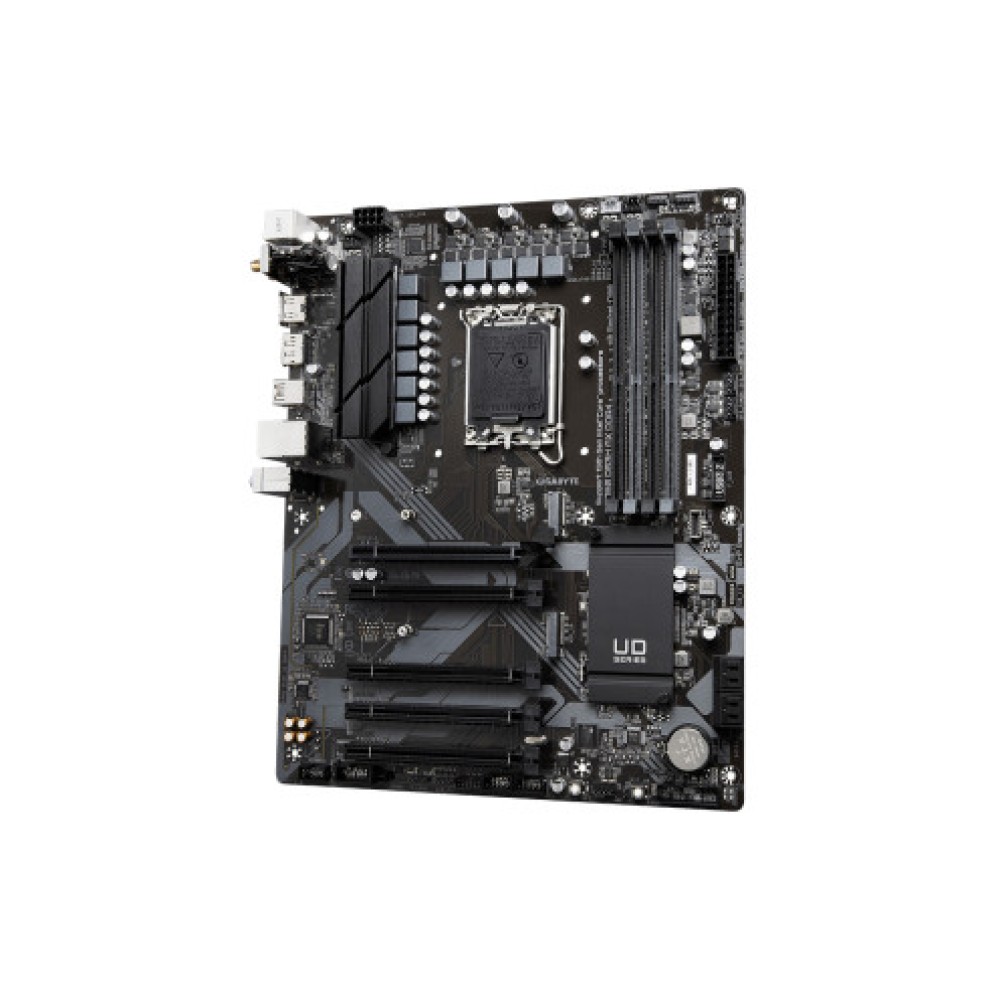

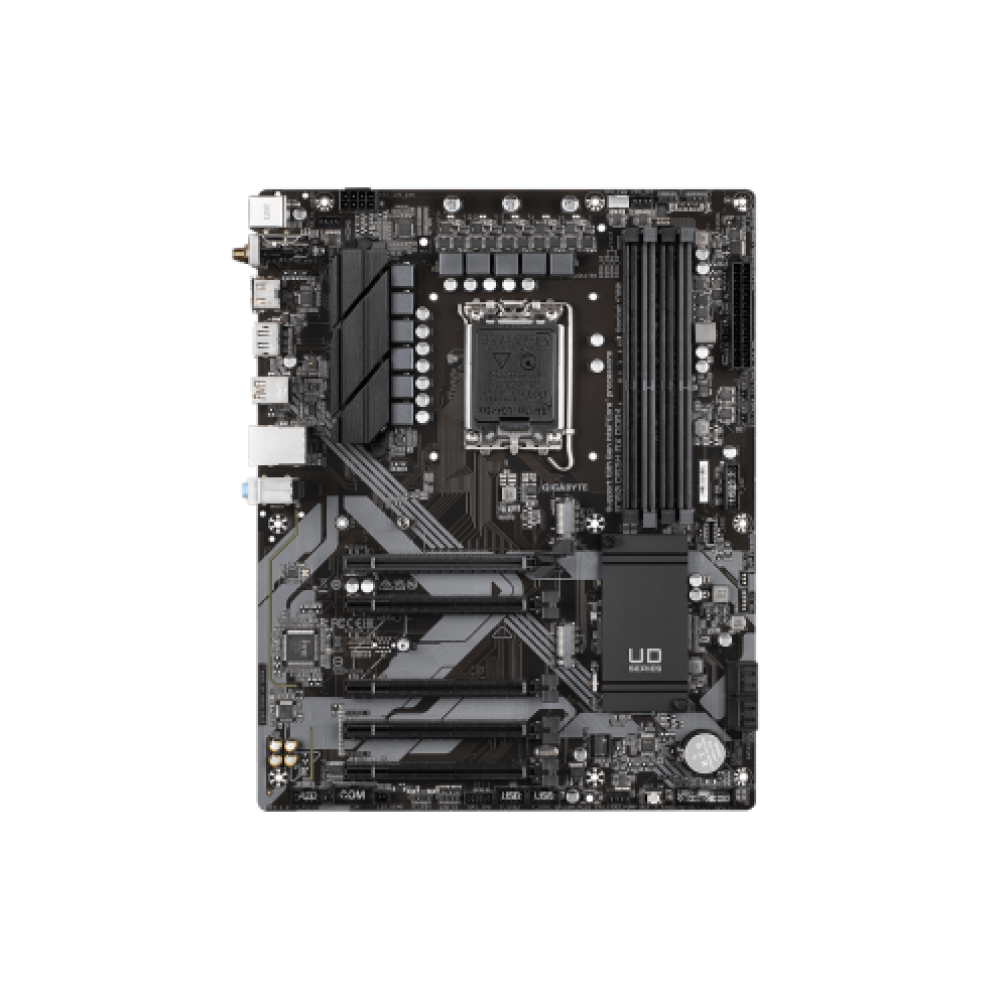

GIGABYTE B760 DS3H AX DDR4 Motherboard

GIGABYTE B760 DS3H AX DDR4 Motherboard ₪650.00

In stock Product code: GB760DS3HAXDDR4

Gigabyte Brand

₪650.00

Price without VAT: ₪555.56

Specification

ModelGIGABYTE B760 DS3H AX DDR4	Warranty3 Years	DDR4 Slots4
Memory TypeDDR4	PackagingRetail - box	PCI-E x1 Slot4
PCI-E x16 Slot1	USB PortsUSB 2.0 \ USB 3.2 \ USB Type-C	USB Type-C Port2

All Attributes

Description

The GIGABYTE B760 DS3H AX DDR4 motherboard offers high performance with the Intel B760 chipset and LGA 1700 socket. The board comes in an ATX form factor and provides graphical connectivity via HDMI and DisplayPort. It includes advanced communication interfaces such as 1 Gigabit LAN, Wi-Fi 6/6E (802.11ax), and Bluetooth 5.2. With an integrated audio card featuring 3 ports, a diverse storage interface including 4 SATA3 connections and 2 M.2 PCIe slots, the motherboard supports RAID 0, 1, 5, and 10 technologies. The board is equipped with expansion slots including TPM, PCIe 4.0 x16, and PCIe 3.0 x16, and provides USB 3.2 and USB 2.0 connections, including 2 USB Type-C ports. With 4 DDR4 memory slots, the board ensures flexibility and high performance. It comes with a 3-year warranty in retail packaging.

Specifications GIGABYTE B760 DS3H AX DDR4 Motherboard

General

Model	GIGABYTE B760 DS3H AX DDR4
Warranty	3 Years

Additional

DDR4 Slots	4
Memory Type	DDR4
Packaging	Retail - box
PCI-E x1 Slot	4
PCI-E x16 Slot	1
USB Ports	USB 2.0 \ USB 3.2 \ USB Type-C
USB Type-C Port	2
Wireless Network Card	Yes

Chipset

Chipset	B760

Connections

USB 2.0	8
USB 3.2	3

Expansion

Expansion Slots	Trusted Platform Module (TPM) \ PCIe 4.0 x16 \ PCIe 3.0 x16, mode x1

Graphics

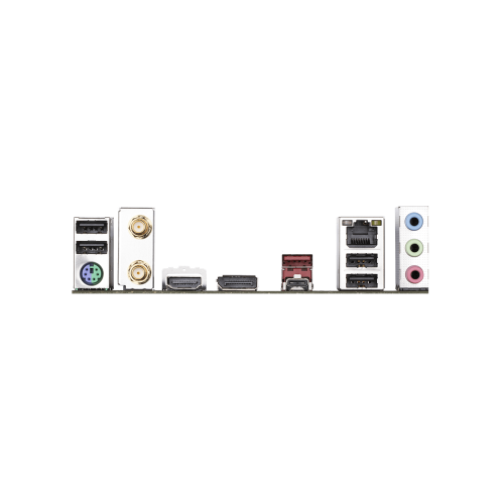

Graphics Interface	HDMI \ DisplayPort

Network

Communication Interfaces	LAN 1 Gigabit \ Wi-Fi 6/6E (802.11ax) \ Bluetooth 5.2

Structure

Board Configuration	ATX

Audio

Integrated Sound Card	3 ports

Processor

Processor Socket	1700

Storage

M.2 PCIe Connectors	2
RAID	0,1,5,10
SATA3 Connectors	4
Storage Interface	SATA3 \ M.2 PCIe
