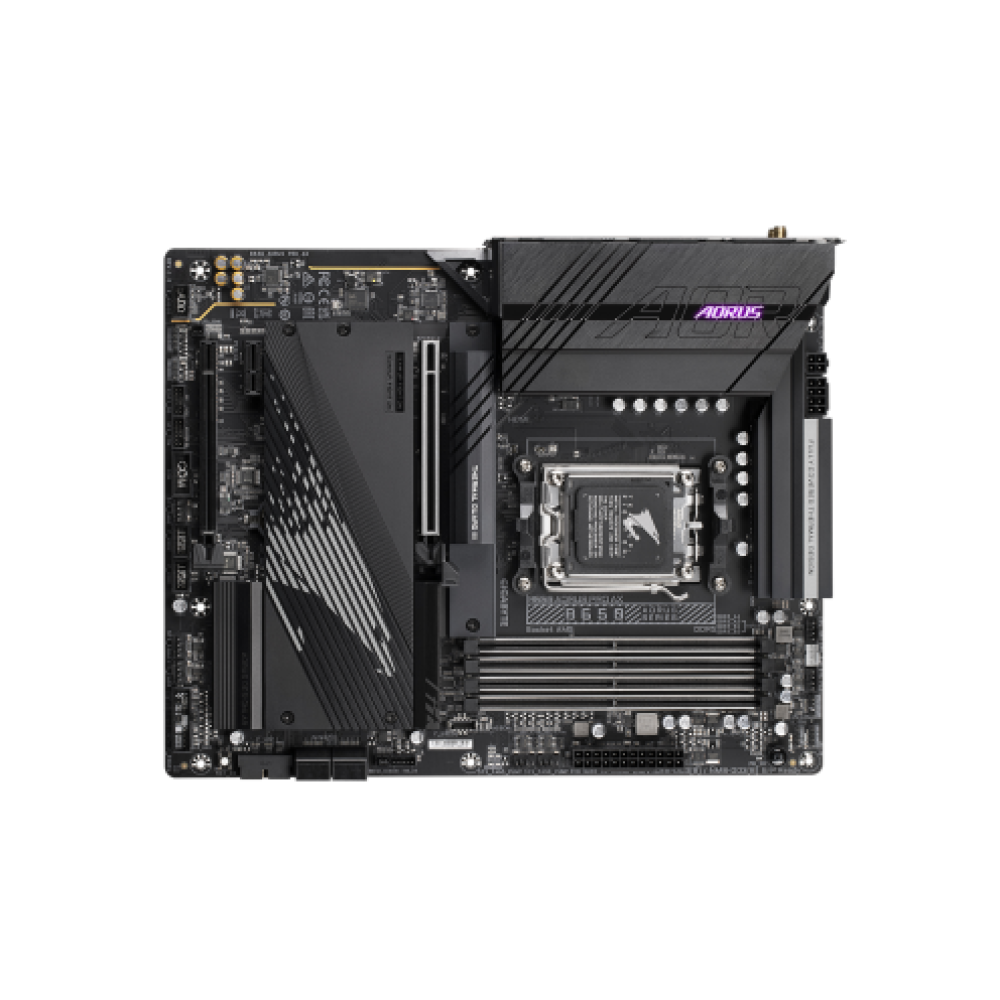

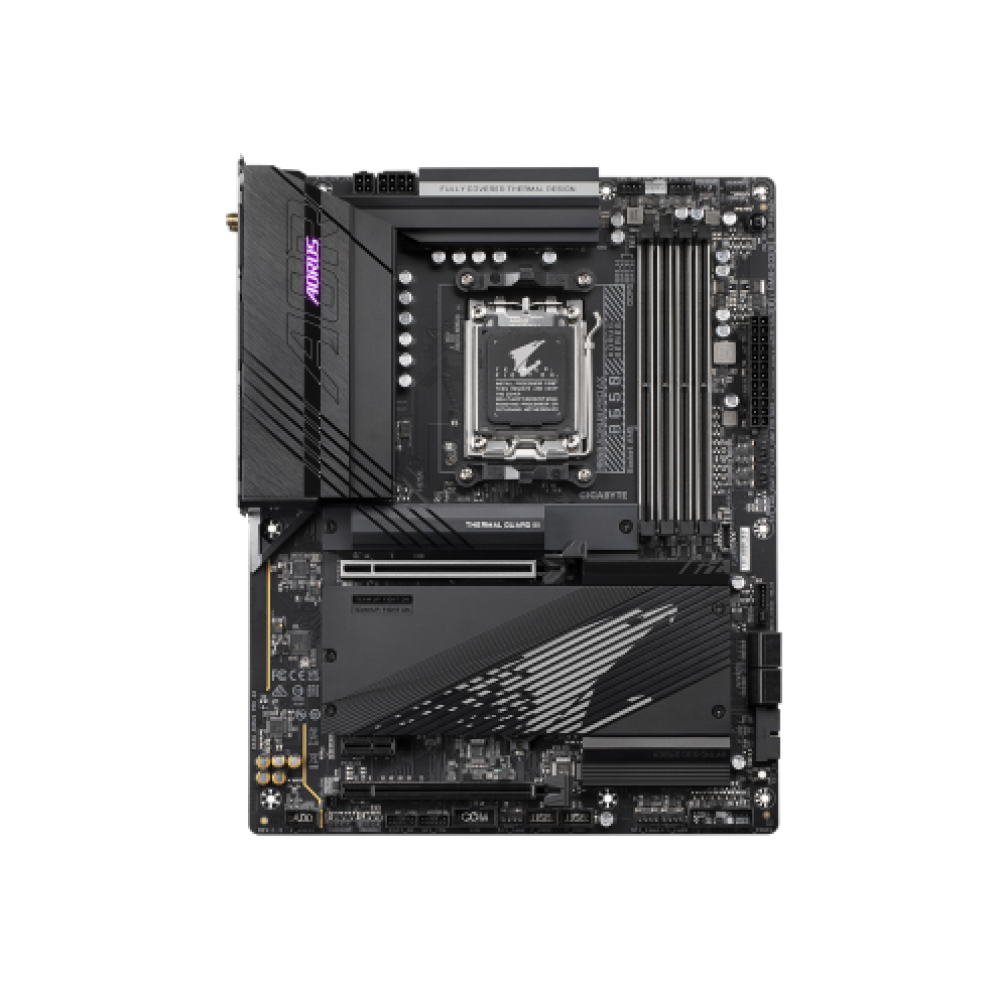

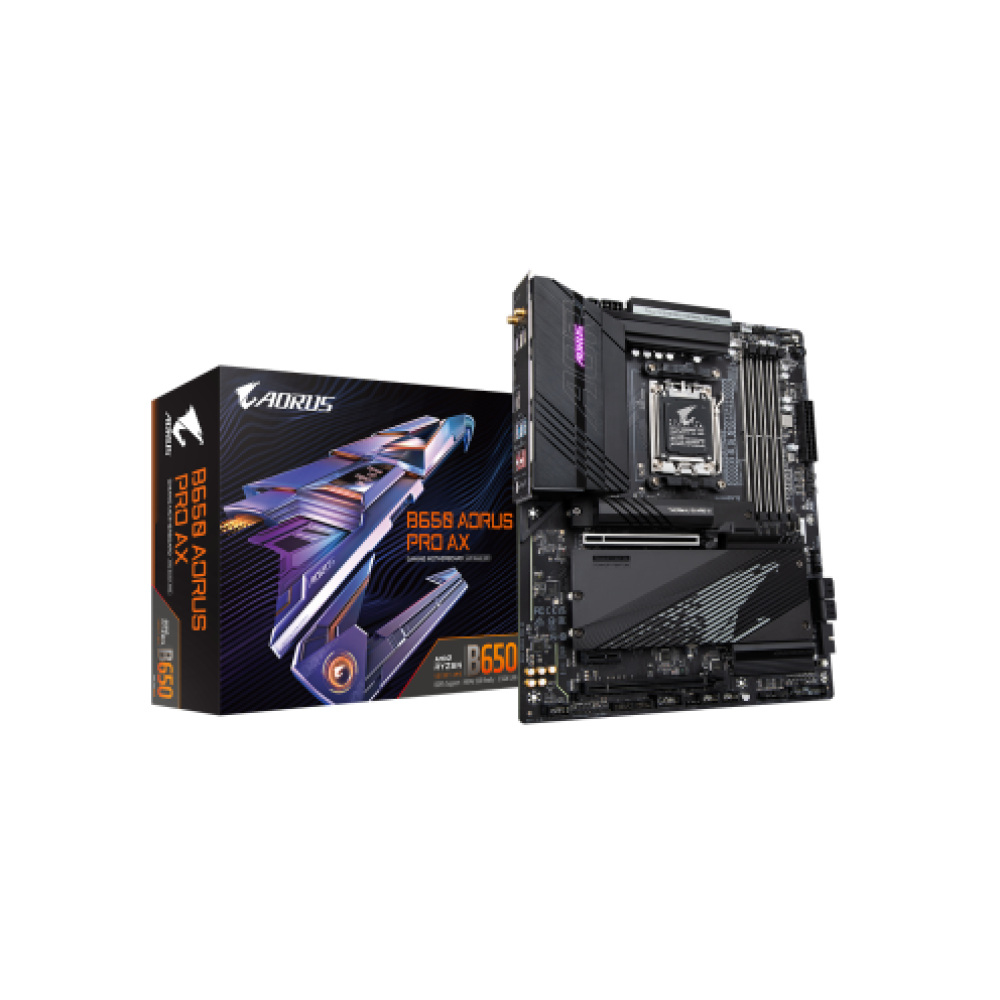

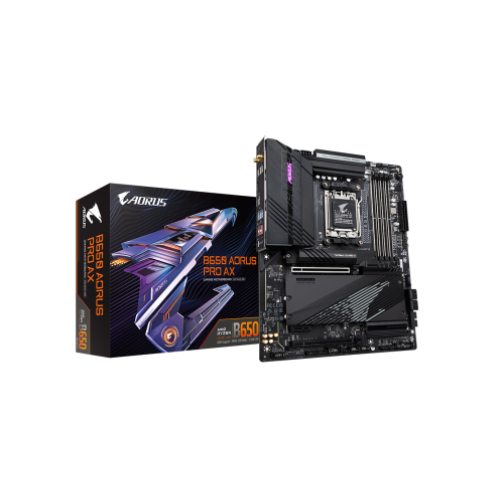

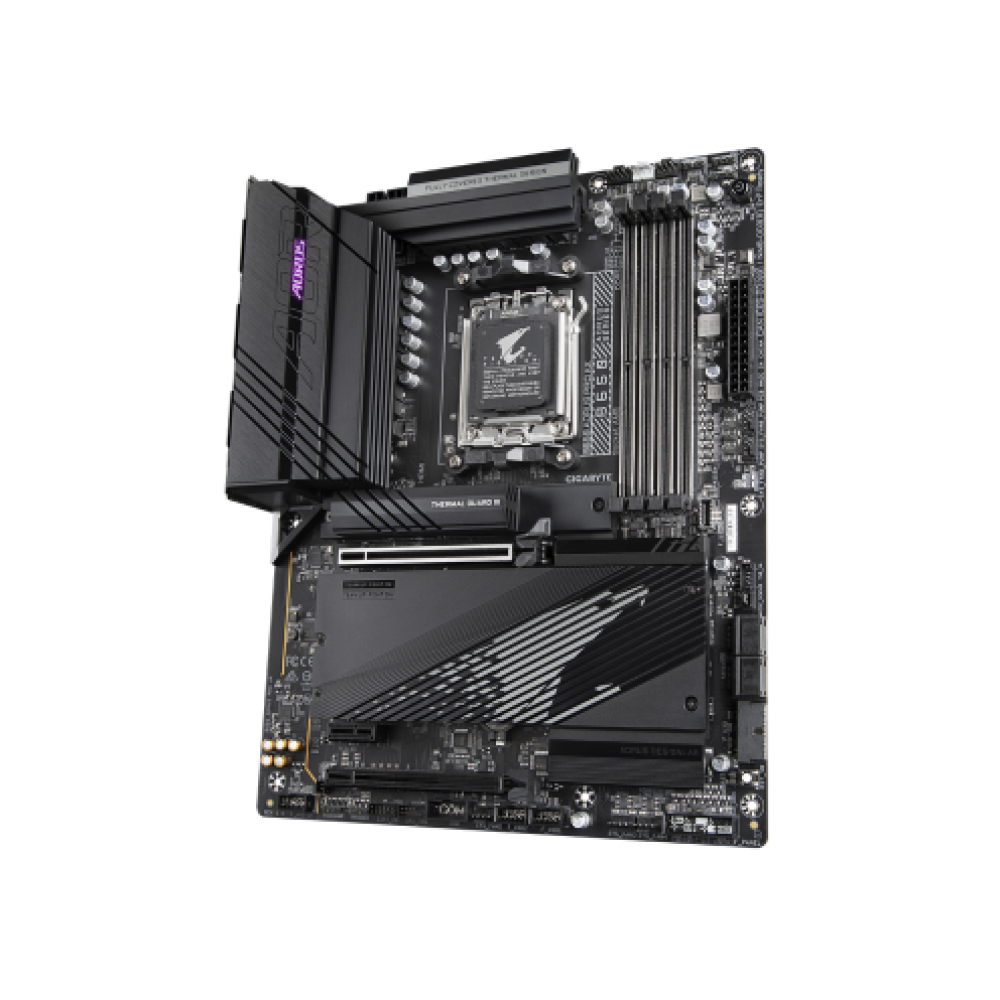

GIGABYTE B650 AORUS PRO AX Motherboard
₪1411.00
GIGABYTE B650 AORUS PRO AX Motherboard
Specification
| ModelGIGABYTE B650 AORUS PRO AX | Warranty3 Years | DDR5 Slots4 |
| Memory TypeDDR5 | PackagingRetail - box | PCI-E x1 Slot1 |
| PCI-E x16 (x4) Slot1 | PCI-E x16 Slot1 | Thunderbolt1x Add-in card connector |
Description
The GIGABYTE B650 AORUS PRO AX motherboard offers an advanced solution for AMD-based systems with the B650 chipset and AM5 socket. Designed in ATX format, the motherboard includes an HDMI graphics connection, advanced communication ports featuring Wi-Fi 6/6E (802.11ax), 2.5 Gigabit LAN, and Bluetooth 5.2. The integrated audio card supports 2 ports and S/PDIF, while the storage interface includes 4 SATA3 connections and 3 M.2 PCIe connections with support for RAID 0, 1, 10. The motherboard is equipped with 4 DDR5 memory slots, 9 USB 3.2 ports, and 8 USB 2.0 ports, including 2 USB Type-C connections. Additionally, the motherboard features expansion slots for TPM, PCIe 4.0 x16, PCIe 4.0 x16 in x4 mode, and PCIe 3.0 x1, as well as a Thunderbolt connection for expansion cards. With a 3-year warranty, the motherboard comes in Retail packaging.
Specifications GIGABYTE B650 AORUS PRO AX Motherboard
General
| Model | GIGABYTE B650 AORUS PRO AX |
|---|---|
| Warranty | 3 Years |
Additional
| DDR5 Slots | 4 |
|---|---|
| Memory Type | DDR5 |
| Packaging | Retail - box |
| PCI-E x1 Slot | 1 |
| PCI-E x16 (x4) Slot | 1 |
| PCI-E x16 Slot | 1 |
| Thunderbolt | 1x Add-in card connector |
| USB Ports | USB 2.0 \ USB 3.2 \ USB Type-C |
| USB Type-C Port | 2 |
| Wireless Network Card | Yes |
Chipset
| Chipset | B650 |
|---|
Connections
| USB 2.0 | 8 |
|---|---|
| USB 3.2 | 9 |
Expansion
| Expansion Slots | Trusted Platform Module (TPM) \ PCIe 4.0 x16 \ PCIe 4.0 x16, mode x4 \ PCIe 3.0 x1 |
|---|
Graphics
| Graphics Interface | HDMI |
|---|
Network
| Communication Interfaces | Wi-Fi 6/6E (802.11ax) \ LAN 2.5 Gigabit \ Bluetooth 5.2 |
|---|
Structure
| Board Configuration | ATX |
|---|
Audio
| Integrated Sound Card | 2 ports + S/PDIF |
|---|
Processor
| Processor Socket | AM5 |
|---|
Storage
| M.2 PCIe Connectors | 3 |
|---|---|
| RAID | 2000,1,10 |
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 \ M.2 PCIe |
