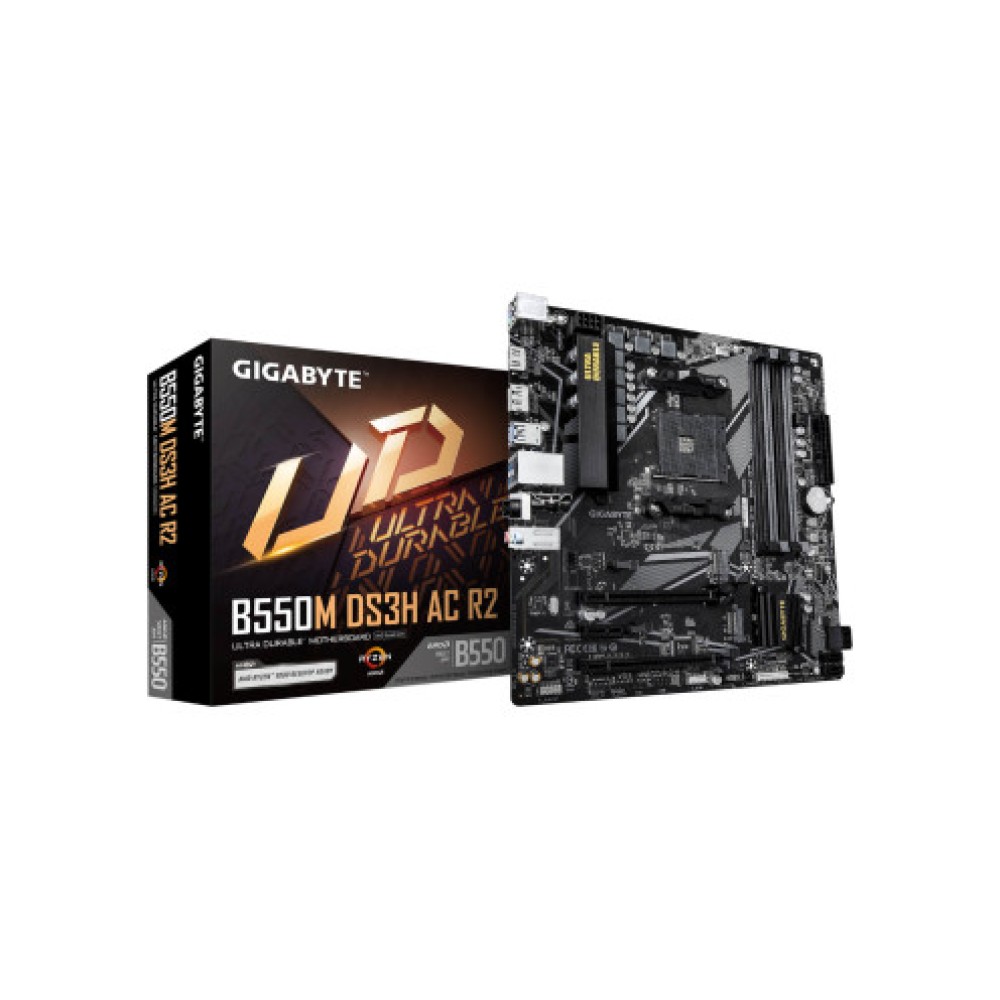

GIGABYTE B550M DS3H AC R2 Motherboard
₪510.00
GIGABYTE B550M DS3H AC R2 Motherboard
Specification
| ModelGIGABYTE B550M DS3H AC R2 | Warranty3 Years | DDR4 Slots4 |
| Memory TypeDDR4 | PCI-E x1 Slot1 | PCI-E x16 (x4) Slot1 |
| PCI-E x16 Slot1 | USB PortsUSB 2.0 / USB 3.2 / USB Type-C | USB Type-C Port1 |
Description

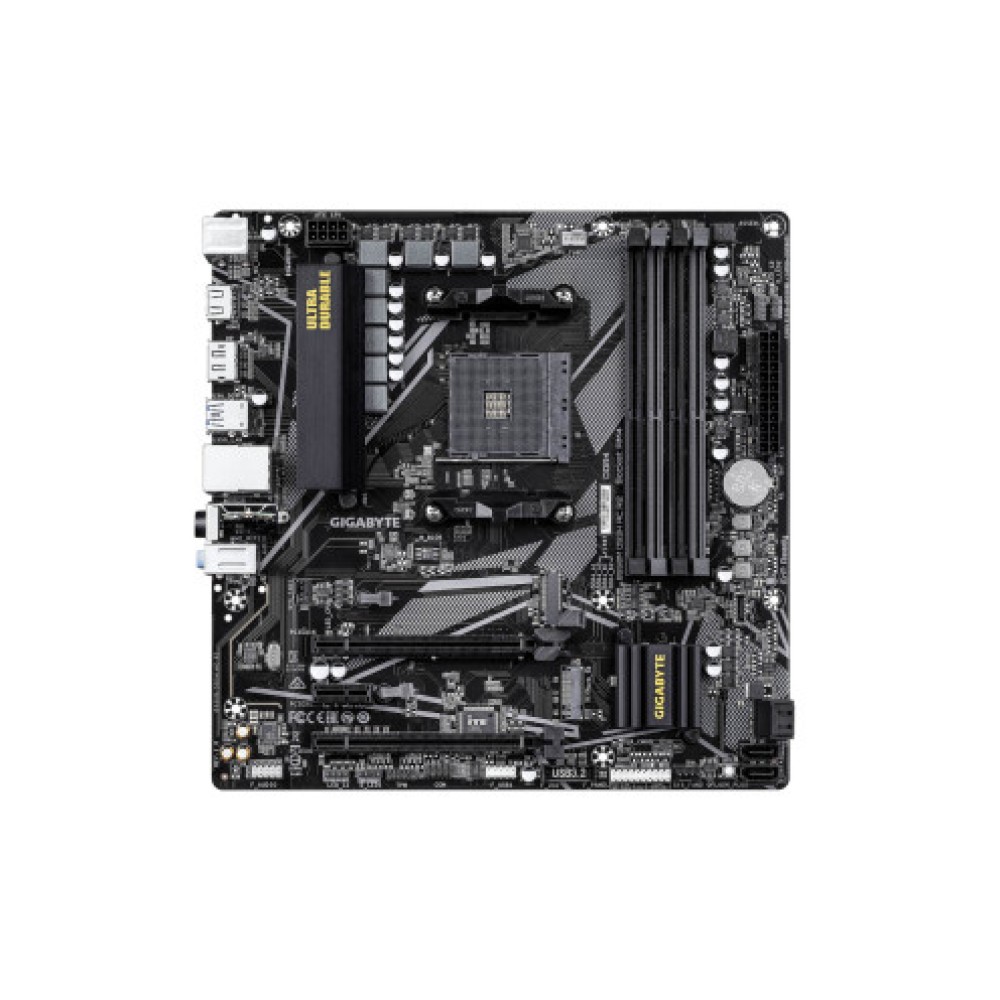

The GIGABYTE B550M DS3H AC R2 motherboard offers an excellent solution for building compact computers with a Micro ATX form factor. The board is based on the AMD B550 chipset and supports the AM4 CPU socket. It includes HDMI and DisplayPort graphics connections, as well as advanced communication interfaces such as 1 Gigabit LAN, Wi-Fi 5 (802.11ac), and Bluetooth 5.0. The board is equipped with an integrated sound card featuring 3 ports and provides diverse storage interfaces including 4 SATA3 connections and 2 M.2 PCIe connections, with support for RAID 0, 1, and 10. Additionally, there are expansion slots for TPM, PCIe 4.0 x16, PCIe 3.0 x1, and PCIe 3.0 x16 in x4 mode. The board includes 6 USB 3.2 ports and 4 USB 2.0 ports, as well as a USB Type-C connection. With 4 DDR4 memory slots, the board supports fast and advanced memory, making it an ideal choice for users seeking high performance and advanced features. The board comes with a 3-year warranty.
Specifications GIGABYTE B550M DS3H AC R2 Motherboard
General
| Model | GIGABYTE B550M DS3H AC R2 |
|---|---|
| Warranty | 3 Years |
Additional
| DDR4 Slots | 4 |
|---|---|
| Memory Type | DDR4 |
| PCI-E x1 Slot | 1 |
| PCI-E x16 (x4) Slot | 1 |
| PCI-E x16 Slot | 1 |
| USB Ports | USB 2.0 / USB 3.2 / USB Type-C |
| USB Type-C Port | 1 |
| Wireless Network Card | Yes |
Chipset
| Chipset | AMD B550 |
|---|
Connections
| USB 2.0 | 4 |
|---|---|
| USB 3.2 | 6 |
Expansion
| Expansion Slots | Trusted Platform Module (TPM) / PCIe 4.0 x16 / PCIe 3.0 x1 / PCIe 3.0 x16 (mode x4) |
|---|
Graphics

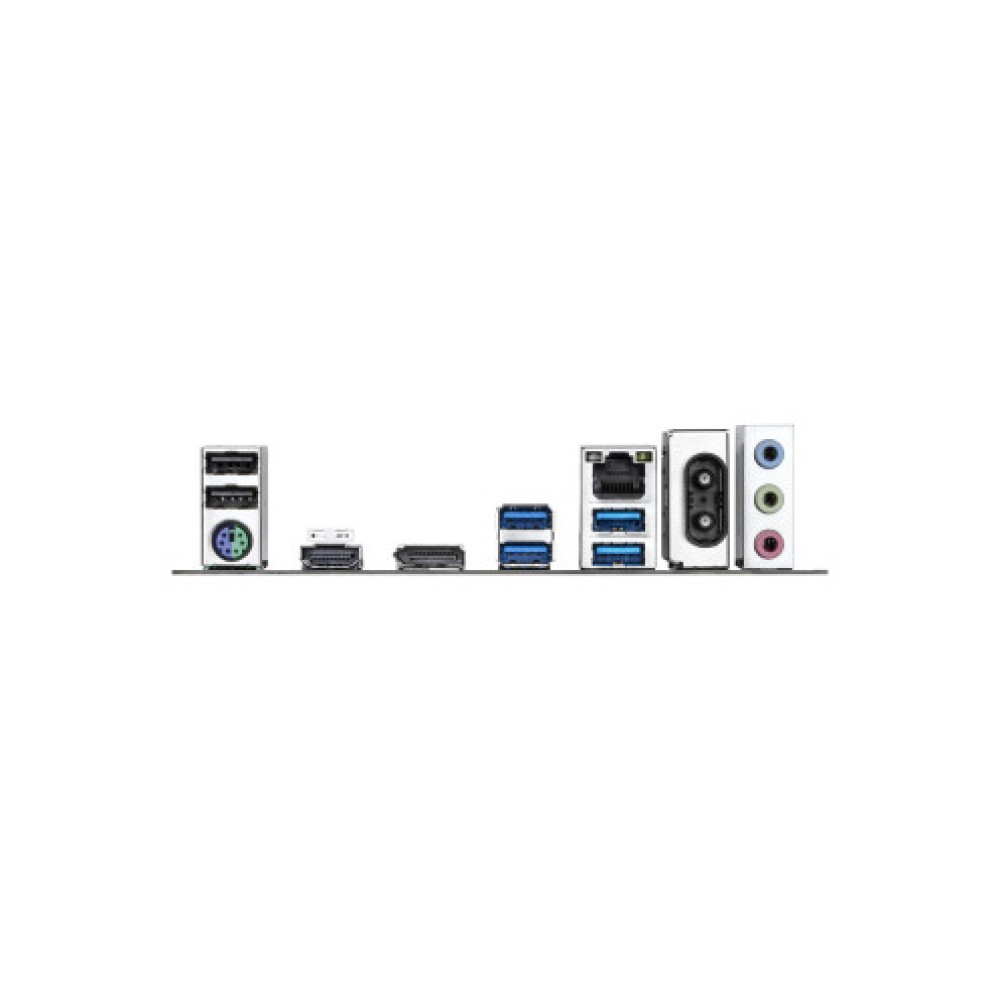

| Graphics Interface | HDMI / DisplayPort |
|---|
Network
| Communication Interfaces | LAN 1 Gigabit / Wi-Fi 5 (802.11ac) / Bluetooth 5.0 |
|---|
Structure
| Board Configuration | Micro ATX |
|---|
Audio
| Integrated Sound Card | 3 Ports |
|---|
Processor
| Processor Socket | AM4 |
|---|
Storage
| M.2 PCIe Connectors | 2 |
|---|---|
| RAID | 2000,1,10 |
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 / M.2 PCIe |
