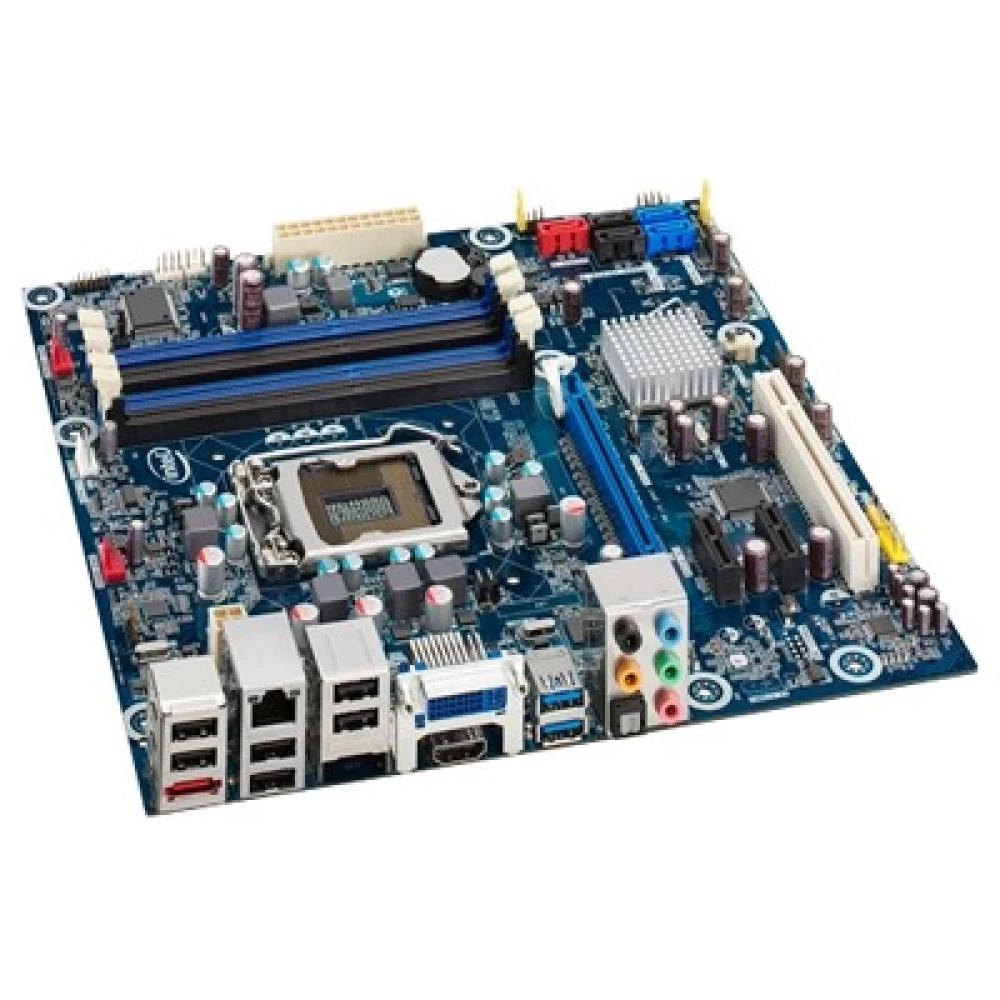

Intel LGA1155 DH67BL Motherboard
₪350.00
Intel LGA1155 DH67BL Motherboard
Specification
| PurposeDesktop Computer | ManufacturerIntel | ModelDH67BL |
| Product TypeMotherboard for Desktop Computer | Motherboard ChipsetIntel H67 | Cooling System Noise Reduction TechnologiesIntel Quiet System Technology |
| Maximum PCIe VersionPCI-E 2.0 | PCI Express 16x Slots1 PCI-E 2.0 x16 slot | PCI Express 1x Slots2 PCI-E 2.0 x1 slots |
Description
The Intel DH67BL motherboard in MicroATX format (244 x 244 mm) with Intel H67 chipset supports Intel Core i7/i5/i3, Pentium 6xx, and Pentium 8xx processors (Sandy Bridge generation), with a bus speed of 5000 MHz and Hyper-Threading support. It includes 4 DDR3 DIMM slots, supporting up to 16GB of memory with XMP support. The storage system supports RAID 0, 1, 10, 5 via SATA, with 2 SATA 6Gb/s channels and 4 SATA-II channels. Gigabit network controller with Intel 82579V controller. USB ports include 2 USB 3.0 ports and 6 USB 2.0 ports. Video outputs include DVI-I and HDMI. 8-channel Realtek ALC892 audio codec with S/PDIF-out, Line-in, Mic-in, Front-out, rear-out, sub/center-out audio outputs. Cooling with Intel Quiet System Technology for noise reduction. Requires a power supply with a 24+4-pin connector.
Specifications Intel LGA1155 DH67BL Motherboard
General
| Purpose | Desktop Computer |
|---|---|
| Manufacturer | Intel |
| Model | DH67BL |
| Product Type | Motherboard for Desktop Computer |
Chipset
| Motherboard Chipset | Intel H67 |
|---|
Cooling
| Cooling System Noise Reduction Technologies | Intel Quiet System Technology |
|---|
Expansion Slots
| Maximum PCIe Version | PCI-E 2.0 |
|---|---|
| PCI Express 16x Slots | 1 PCI-E 2.0 x16 slot |
| PCI Express 1x Slots | 2 PCI-E 2.0 x1 slots |
| PCI Slots | 1 slot (ITE it8892E controller) |
Form Factor
| Motherboard Form Factor | MicroATX (244 x 244 mm) |
|---|
Graphics Card
| Motherboard Video | Uses integrated graphics in the processor |
|---|---|
| Rear Panel Video Outputs | DVI-I, HDMI |
Outputs
| Keyboard/Mouse | USB |
|---|---|
| Outputs | 1 eSATA port |
Power
| Power Block Requirements | Only supports power supplies with 24+4-pin |
|---|
Sound Card
| Audio Codec | 8-channel HDA by Realtek ALC892 |
|---|---|
| Rear Panel Audio Outputs | 1 Optical S/PDIF-out, Line-in, Mic-in, Front-out, Rear-out, Sub/Center-out |
Storage
| Maximum Memory Capacity | 16GB |
|---|---|
| Number of DDR3 Slots | 4 (dual-channel memory controller, supports Extreme Memory Profile - XMP) |
| Number of DIMM Slots | 4 |
| Supported Memory Type | LV DDR3, DDR3 |
USB
| Rear Panel USB Ports | 2 USB 3.0 (USB 3.1 Gen1) ports, 6 USB 2.0 ports |
|---|---|
| USB Controller | NEC µPD720200 with support for 2 USB 3.0 ports on the rear panel |
Communication
| Network | Intel 82579V Network Controller, 1Gbps speed |
|---|
Processor
| Appropriate Cooling | Per manufacturer instructions |
|---|---|
| Bus Frequency | 5000MHz |
| Hyper Threading Support | Yes |
| Maximum Processors on Motherboard | 1 |
| Processor Core Support | Sandy Bridge |
| Processor Slot | Socket LGA1155 |
| Supported Processor Types | Intel Core i7-2xxx, Core i5-2xxx, Core i3-2xxx, Pentium 6xx, Pentium 8xx |
Storage
| FDD Connector Slot | No |
|---|---|
| RAID | RAID 0, 1, 10, 5 supported from SATA devices |
| SATA 6Gb/s | 2 channels |
| SATA-II | 4 channels |
