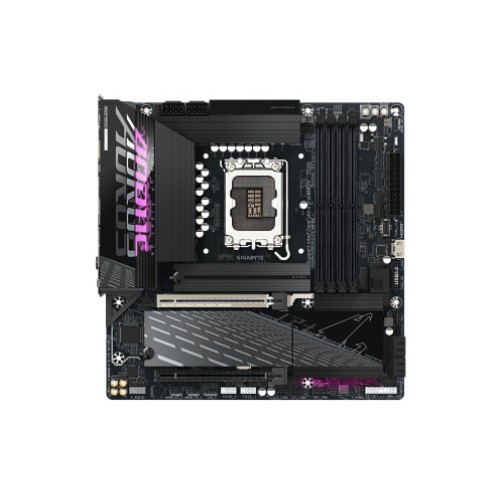

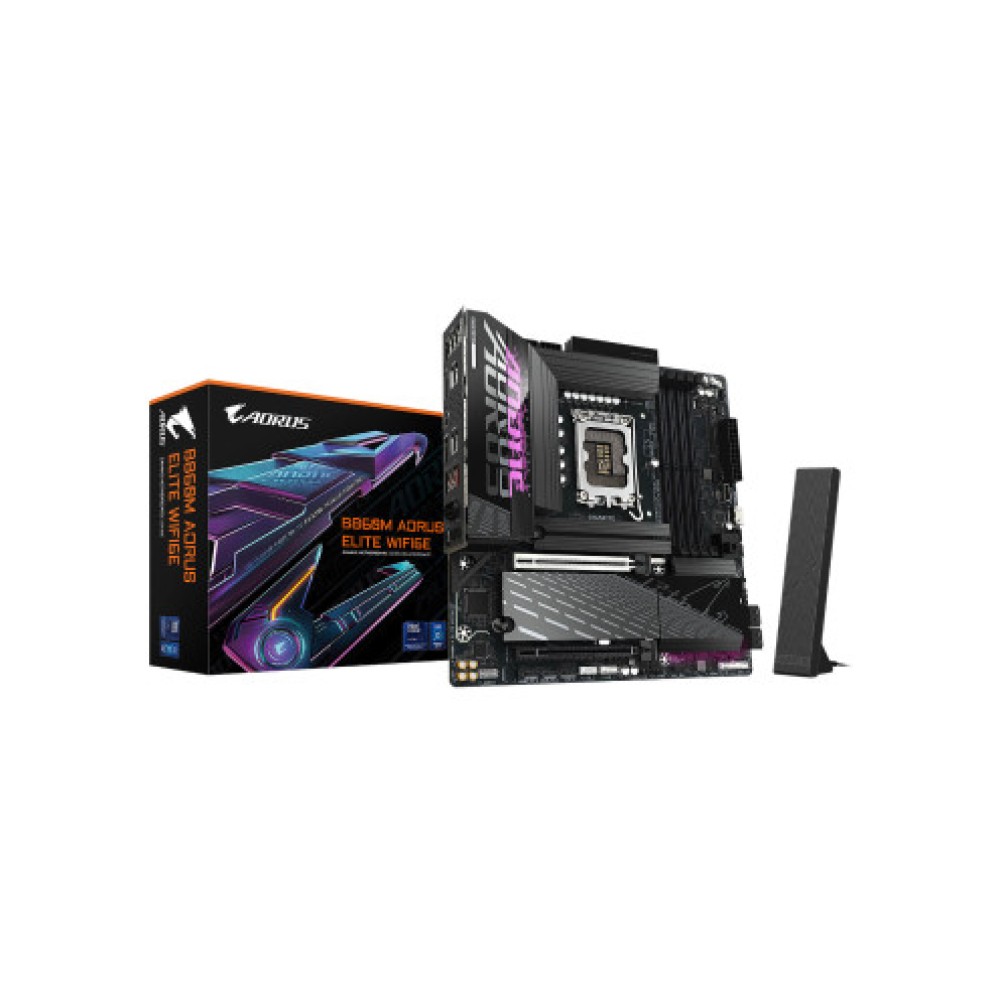

GIGABYTE B860M AORUS ELITE WIFI6E Motherboard
₪972.00
GIGABYTE B860M AORUS ELITE WIFI6E Motherboard
Specification
| ModelGIGABYTE B860M AORUS ELITE WIFI6E | Warranty3 Years | DDR5 Slots4 |
| Memory TypeDDR5 | PCI-E x16 (x4) Slot1 | PCI-E x16 Slot1 |
| Thunderbolt2 | USB PortsUSB 2.0 / USB 3.2 / USB Type-C | USB Type-C Port2 |
Description
The GIGABYTE B860M AORUS ELITE WIFI6E motherboard offers high performance and impressive expandability, featuring an Intel B860 chipset and an LGA 1851 socket. The Micro ATX form factor board includes HDMI, DisplayPort, and USB Type-C graphics connections, and provides advanced communication interfaces with Wi-Fi 6/6E (802.11ax), 2.5 Gigabit LAN, and Bluetooth 5.3. The integrated audio card supports 2 ports and S/PDIF, and the board is equipped with SATA3 and M.2 PCIe storage interfaces, featuring 4 SATA3 connections and 3 M.2 PCIe connections. The board supports RAID 0, 1, 5, and 10 technologies and provides expansion slots including TPM, PCIe 4.0 x16, and PCIe 5.0 x16. With 8 USB 3.2 ports and 8 USB 2.0 ports, the board supports DDR5 memory with 4 slots and offers Thunderbolt and USB Type-C connections. A 3-year warranty ensures peace of mind for users.
Specifications GIGABYTE B860M AORUS ELITE WIFI6E Motherboard
General
| Model | GIGABYTE B860M AORUS ELITE WIFI6E |
|---|---|
| Warranty | 3 Years |
Additional
| DDR5 Slots | 4 |
|---|---|
| Memory Type | DDR5 |
| PCI-E x16 (x4) Slot | 1 |
| PCI-E x16 Slot | 1 |
| Thunderbolt | 2 |
| USB Ports | USB 2.0 / USB 3.2 / USB Type-C |
| USB Type-C Port | 2 |
| Wireless Network Card | Yes |
Chipset
| Chipset | Intel B860 |
|---|
Connections
| USB 2.0 | 8 |
|---|---|
| USB 3.2 | 8 |
Expansion
| Expansion Slots | Trusted Platform Module (TPM) / PCIe 4.0 x16 (mode x4) / PCIe 5.0 x16 slot |
|---|
Graphics
| Graphics Interface | HDMI / DisplayPort / USB Type-C |
|---|
Network
| Communication Interfaces | Wi-Fi 6/6E (802.11ax) / LAN 2.5 Gigabit / Bluetooth 5.3 |
|---|
Structure
| Board Configuration | Micro ATX |
|---|
Audio
| Integrated Sound Card | 2 ports + S/PDIF |
|---|
Processor
| Processor Socket | 1851 |
|---|
Storage
| M.2 PCIe Connectors | 3 |
|---|---|
| RAID | 0,1,5,10 |
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 / M.2 PCIe |
