GIGABYTE B850 EAGLE WIFI6E Motherboard
₪882.00
GIGABYTE B850 EAGLE WIFI6E Motherboard
Specification
| ModelGIGABYTE B850 EAGLE WIFI6E | Warranty3 Years | DDR5 Slots4 |
| Memory TypeDDR5 | PCI-E x16 (x4) Slot3 | PCI-E x16 Slot1 |
| USB PortsUSB 2.0 / USB 3.2 / USB Type-C | USB Type-C Port2 | Wireless Network CardYes |
Description
The GIGABYTE B850 EAGLE WIFI6E motherboard offers high performance with the AMD B850 chipset and AM5 CPU socket. The board is in ATX form factor and provides graphical connectivity via HDMI and DisplayPort. Communication connections include 1 Gigabit LAN, Wi-Fi 6/6E (802.11ax), and Bluetooth 5.3. It is equipped with an integrated sound card with 3 ports and a storage interface that combines SATA3 and M.2 PCIe, with 4 SATA3 connections and 3 M.2 PCIe connections. The board supports RAID levels 0, 1, 5, and 10. Additionally, there are expansion slots for a Trusted Platform Module (TPM), PCIe 5.0 x16, and PCIe 3.0 x16 in x1 mode. The board includes 6 USB 3.2 connections and 8 USB 2.0 connections, as well as 4 DDR5 memory slots. The USB connections also include USB Type-C with 2 ports. This motherboard includes a wireless network card, ensuring advanced connectivity. The product comes with a 3-year warranty.
Specifications GIGABYTE B850 EAGLE WIFI6E Motherboard
General
| Model | GIGABYTE B850 EAGLE WIFI6E |
|---|---|
| Warranty | 3 Years |
Additional
| DDR5 Slots | 4 |
|---|---|
| Memory Type | DDR5 |
| PCI-E x16 (x4) Slot | 3 |
| PCI-E x16 Slot | 1 |
| USB Ports | USB 2.0 / USB 3.2 / USB Type-C |
| USB Type-C Port | 2 |
| Wireless Network Card | Yes |
Chipset
| Chipset | AMD B850 |
|---|
Connections
| USB 2.0 | 8 |
|---|---|
| USB 3.2 | 6 |
Expansion
| Expansion Slots | Trusted Platform Module (TPM) / PCIe 5.0 x16 slot / PCIe 3.0 x16 (mode x1) |
|---|
Graphics

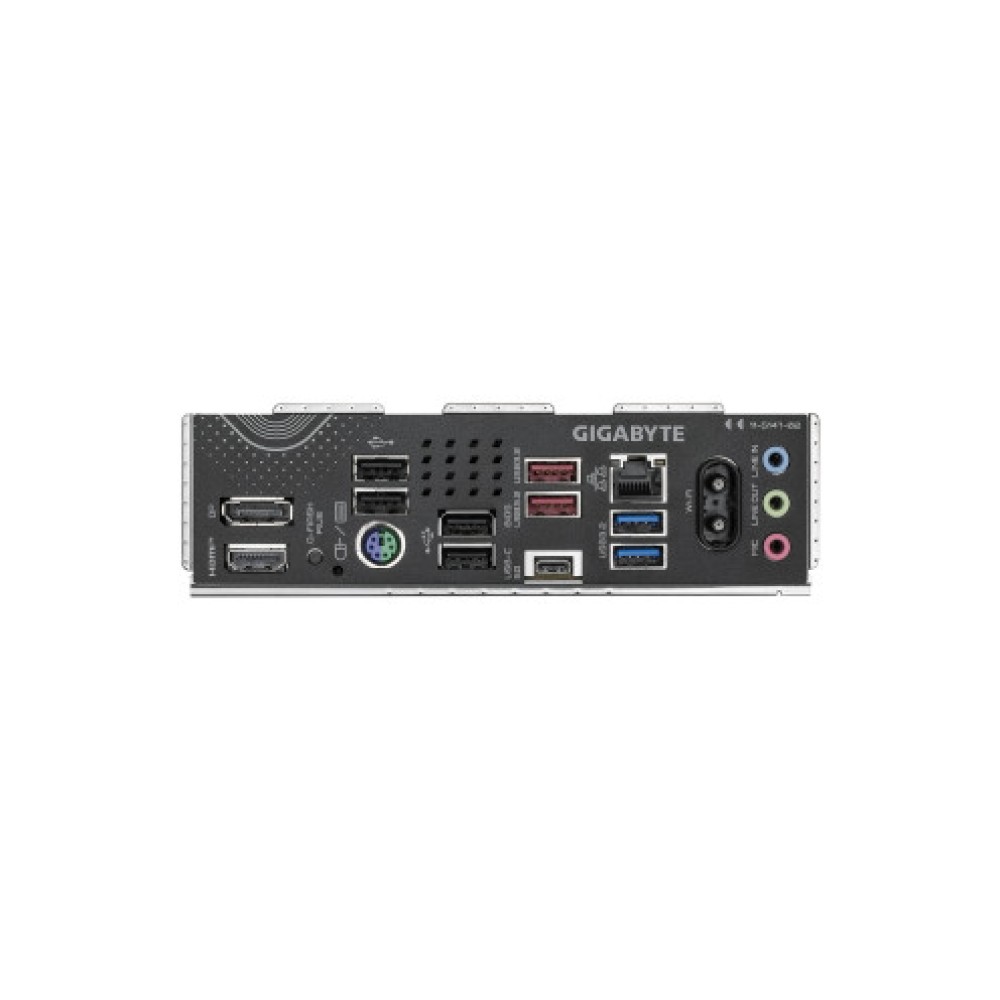

| Graphics Interface | HDMI / DisplayPort |
|---|
Network
| Communication Interfaces | LAN 1 Gigabit / Wi-Fi 6/6E (802.11ax) / Bluetooth 5.3 |
|---|
Structure
| Board Configuration | ATX |
|---|
Audio
| Integrated Sound Card | 3 ports |
|---|
Processor
| Processor Socket | AM5 |
|---|
Storage
| M.2 PCIe Connectors | 3 |
|---|---|
| RAID | 0,1,5,10 |
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 / M.2 PCIe |
