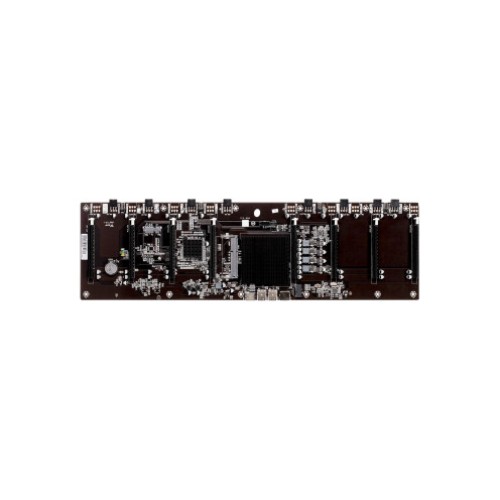

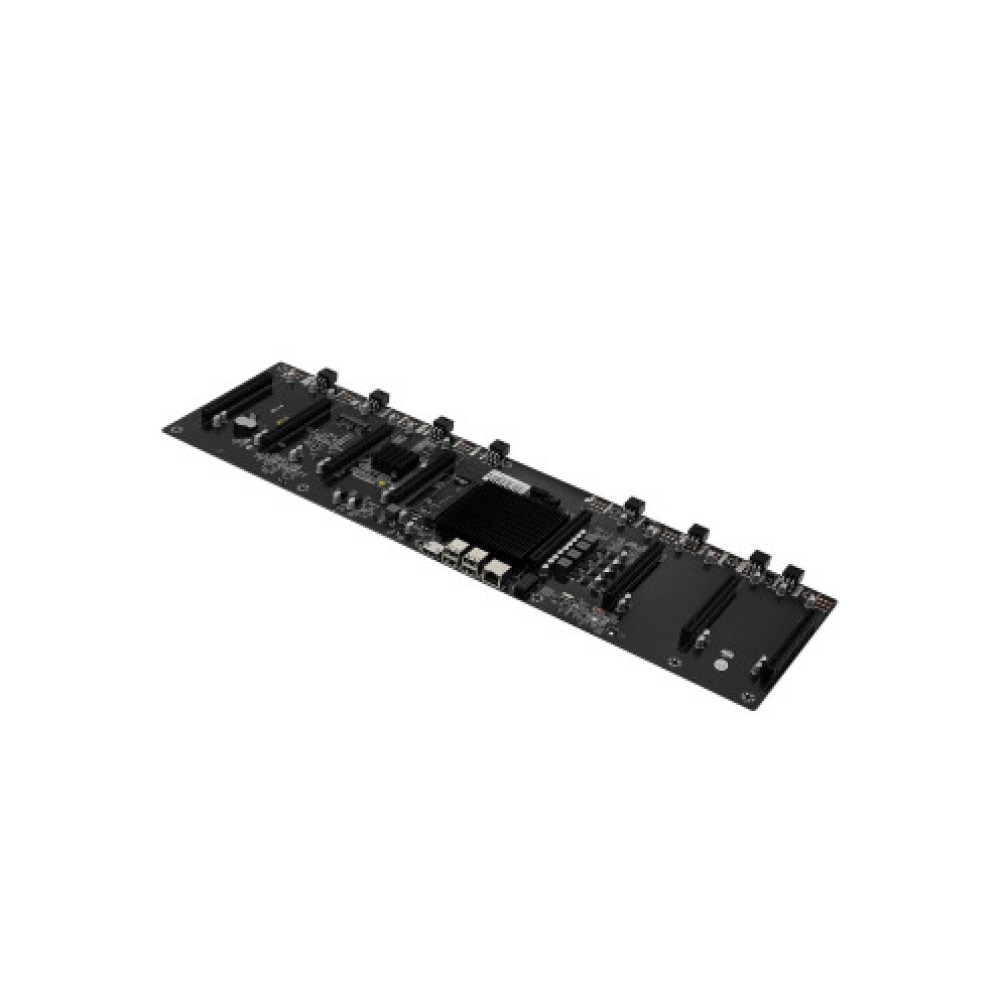

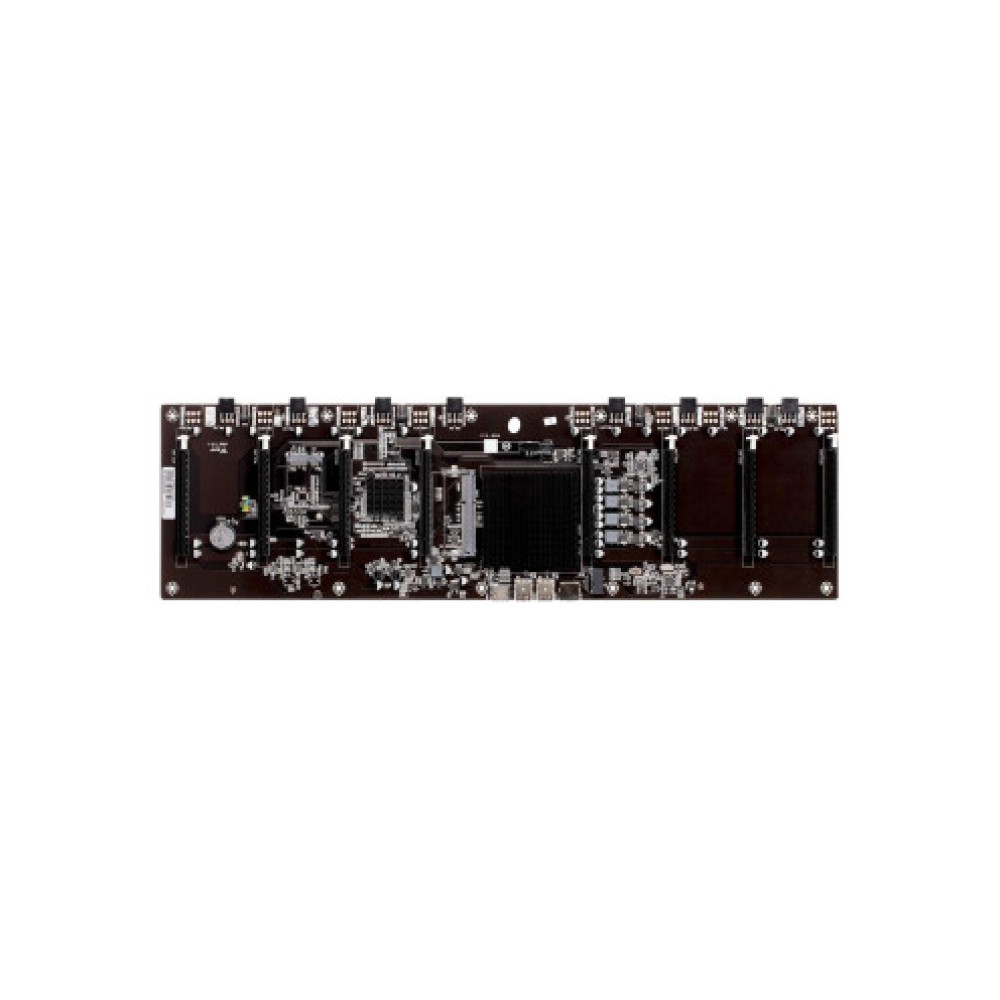

AFOX AFHM65-ETH8EX MINING MOTHERBOARD Motherboard
₪793.00
AFOX AFHM65-ETH8EX MINING MOTHERBOARD Motherboard
Specification
| ModelAFOX AFHM65-ETH8EX MINING MOTHERBOARD | DDR3 slots1x SO-DIMM DDR3L (max. up to 8GB) | Memory TypeDDR3 SODIMM |
| mSATA connectors1 | PackagingRetail - box | PCI-E x16 Slot8 |
| SATA2 connectors1 | USB PortsUSB 2.0 | ChipsetIntel HM65 |
Description
The AFOX AFHM65-ETH8EX MINING MOTHERBOARD is equipped with an Intel HM65 chipset and is specifically designed for mining applications. The board features a SoC CPU socket with an integrated Intel Celeron Sandy Bridge/Ivy Bridge processor. Graphics connectivity is provided via HDMI, and network communication is enabled through a 1 Gigabit LAN connection. The board supports SATA2 storage interface and mSATA connection, with PCIe 3.0 x16 expansion slots allowing for the connection of up to 8 expansion cards. There are 4 USB 2.0 ports and one DDR3 SO-DIMM memory slot that supports up to 8GB of memory. The board comes in Retail packaging.
Specifications AFOX AFHM65-ETH8EX MINING MOTHERBOARD Motherboard
General
| Model | AFOX AFHM65-ETH8EX MINING MOTHERBOARD |
|---|
Additional
| DDR3 slots | 1x SO-DIMM DDR3L (max. up to 8GB) |
|---|---|
| Memory Type | DDR3 SODIMM |
| mSATA connectors | 1 |
| Packaging | Retail - box |
| PCI-E x16 Slot | 8 |
| SATA2 connectors | 1 |
| USB Ports | USB 2.0 |
Chipset
| Chipset | Intel HM65 |
|---|
Connections
| USB 2.0 | 4 |
|---|
Expansion
| Expansion Slots | PCIe 3.0 x16 |
|---|
Graphics
| Graphics Interface | HDMI |
|---|
Network
| Communication Interfaces | LAN 1 Gigabit |
|---|
Processor
| Processor Socket | SoC (onboard) |
|---|
Storage
| Storage Interface | SATA2 \ mSATA |
|---|
