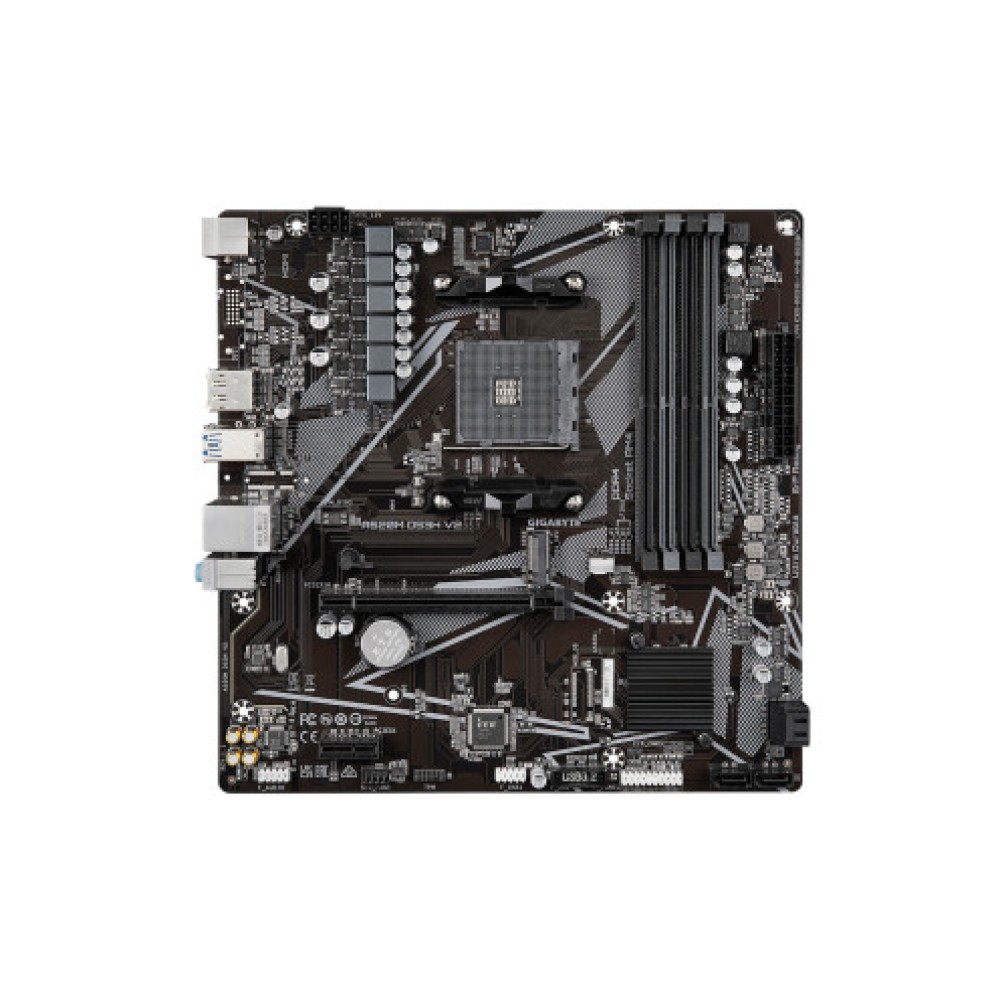

GIGABYTE A520M DS3H V2 Motherboard
₪318.00
GIGABYTE A520M DS3H V2 Motherboard
Specification
| ModelGIGABYTE A520M DS3H V2 | Warranty3 Years | DDR4 Slots4 |
| Memory TypeDDR4 | PCI-E x1 Slot1 | PCI-E x16 Slot1 |
| USB PortsUSB 2.0 / USB 3.2 | ChipsetAMD A520 | USB 2.06 |
Description
The GIGABYTE A520M DS3H V2 motherboard offers a Micro ATX configuration with an AMD A520 chipset and an AM4 processor socket. The board includes HDMI and DisplayPort graphics connections, a 1 Gigabit LAN connection, and an integrated audio card with 3 outputs. The storage interface supports SATA3 and M.2 PCIe, with 4 SATA3 connections and 1 M.2 PCIe connection. The board supports RAID levels 0, 1, and 10. Additionally, it is equipped with expansion slots including a Trusted Platform Module (TPM), PCIe 3.0 x1, and PCIe 3.0 x16. In terms of connectivity, the board features 6 USB 3.2 connections and 6 USB 2.0 connections. It supports DDR4 memory with 4 slots.
Specifications GIGABYTE A520M DS3H V2 Motherboard
General
| Model | GIGABYTE A520M DS3H V2 |
|---|---|
| Warranty | 3 Years |
Additional
| DDR4 Slots | 4 |
|---|---|
| Memory Type | DDR4 |
| PCI-E x1 Slot | 1 |
| PCI-E x16 Slot | 1 |
| USB Ports | USB 2.0 / USB 3.2 |
Chipset
| Chipset | AMD A520 |
|---|
Connections
| USB 2.0 | 6 |
|---|---|
| USB 3.2 | 6 |
Expansion
| Expansion Slots | Trusted Platform Module (TPM) / PCIe 3.0 x1 / PCIe 3.0 x16 |
|---|
Graphics
| Graphics Interface | HDMI / DisplayPort |
|---|
Network
| Communication Interfaces | LAN 1 Gigabit |
|---|
Structure
| Board Configuration | Micro ATX |
|---|
Audio
| Integrated Sound Card | 3 ports |
|---|
Processor
| Processor Socket | AM4 |
|---|
Storage
| M.2 PCIe Connectors | 1 |
|---|---|
| RAID | 2000,1,10 |
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 / M.2 PCIe |
