ASUS PROART B760-CREATOR Motherboard
₪1044.00

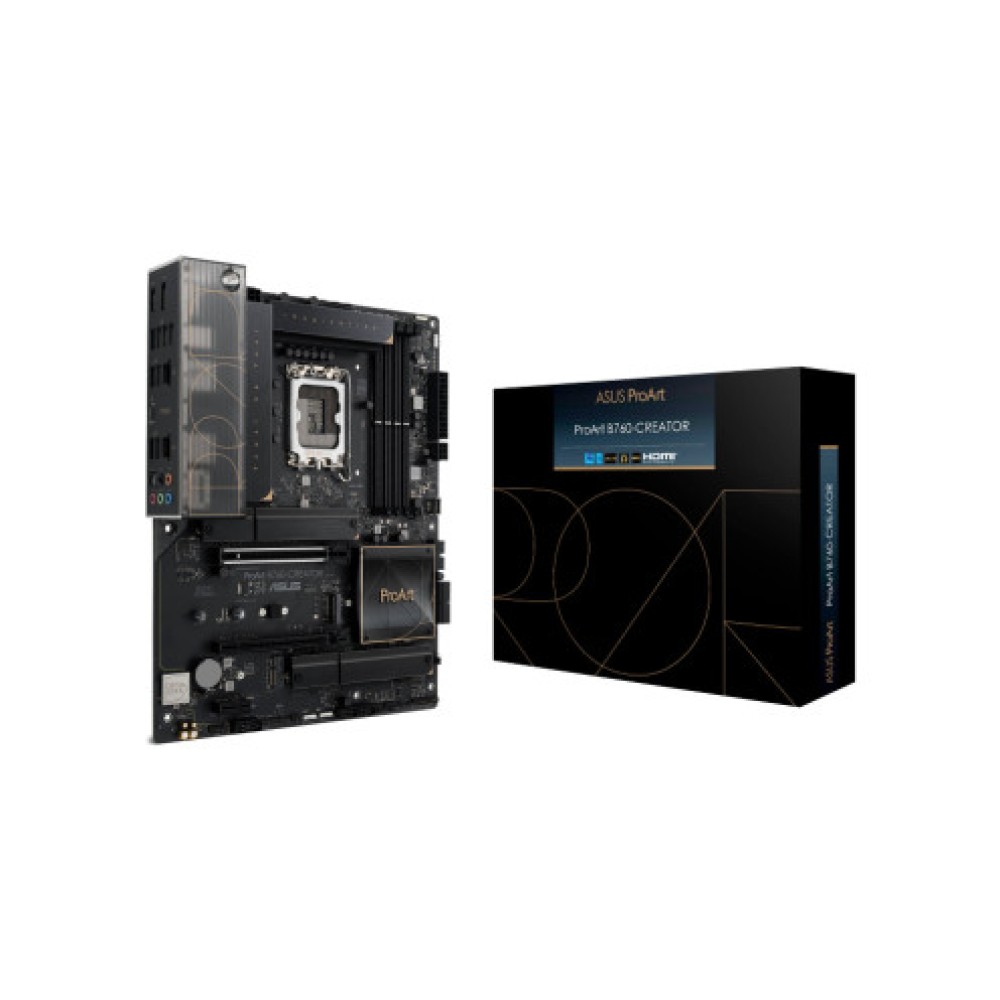

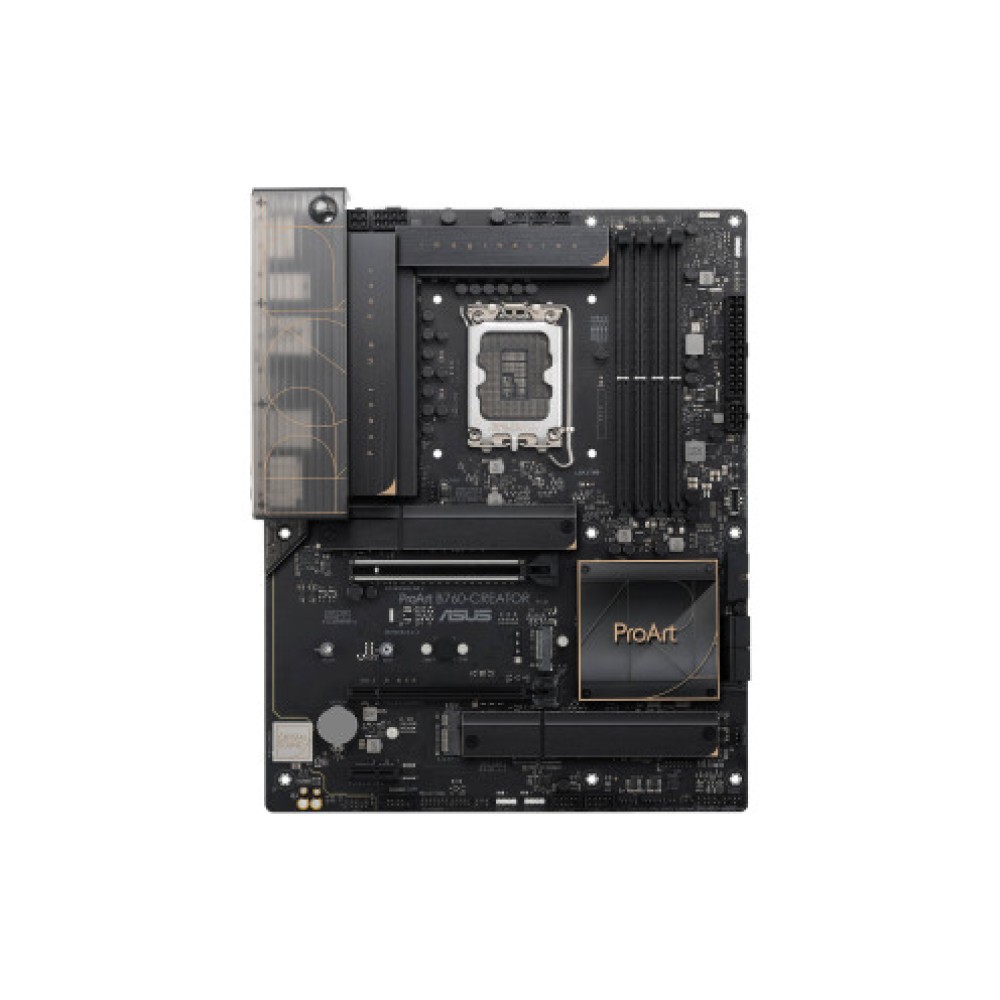

ASUS PROART B760-CREATOR Motherboard
Specification
| ModelASUS PROART B760-CREATOR | Warranty3 Years | DDR5 Slots4 |
| Memory TypeDDR5 | PCI-E x1 Slot1 | PCI-E x16 (x4) Slot1 |
| PCI-E x16 Slot1 | Thunderbolt1 | USB PortsUSB 2.0 / USB 3.2 / USB Type-C |
Description
The ASUS PROART B760-CREATOR motherboard offers high performance with the Intel B760 chipset and LGA 1700 socket. The ATX-formatted board includes HDMI and DisplayPort graphics connections, as well as 2.5 Gigabit LAN communication ports. The integrated audio card supports 5 ports and S/PDIF. The board is equipped with a diverse storage interface that includes 4 SATA3 connections and 3 M.2 PCIe connections, with support for RAID 0, 1, 5, and 10 technologies. Expansion slots include a Trusted Platform Module (TPM), M.2 (CNVi/Wireless Module), PCIe 4.0 x16 (mode x4), PCIe 3.0 x1, and PCIe 5.0 x16. The board supports DDR5 memory with 4 slots and includes 5 USB 3.2 ports and 6 USB 2.0 ports, in addition to 2 USB Type-C and Thunderbolt connections. With a 3-year warranty, the ASUS PROART B760-CREATOR is an ideal solution for professionals in the creative field.
Specifications ASUS PROART B760-CREATOR Motherboard
General
| Model | ASUS PROART B760-CREATOR |
|---|---|
| Warranty | 3 Years |
Additional
| DDR5 Slots | 4 |
|---|---|
| Memory Type | DDR5 |
| PCI-E x1 Slot | 1 |
| PCI-E x16 (x4) Slot | 1 |
| PCI-E x16 Slot | 1 |
| Thunderbolt | 1 |
| USB Ports | USB 2.0 / USB 3.2 / USB Type-C |
| USB Type-C Port | 2 |
Chipset
| Chipset | B760 |
|---|
Connections
| USB 2.0 | 6 |
|---|---|
| USB 3.2 | 5 |
Expansion
| Expansion Slots | Trusted Platform Module (TPM) / M.2 (CNVi / Wireless Module) / PCIe 4.0 x16 (mode x4) / PCIe 3.0 x1 / PCIe 5.0 x16 slot |
|---|
Graphics
| Graphics Interface | HDMI / DisplayPort |
|---|
Network
| Communication Interfaces | LAN 2.5 Gigabit |
|---|
Structure
| Board Configuration | ATX |
|---|
Audio
| Integrated Sound Card | 5 Ports + S/PDIF |
|---|
Processor
| Processor Socket | 1700 |
|---|
Storage
| M.2 PCIe Connectors | 3 |
|---|---|
| RAID | 0,1,5,10 |
| SATA3 Connectors | 4 |
| Storage Interface | SATA3 / M.2 PCIe |
