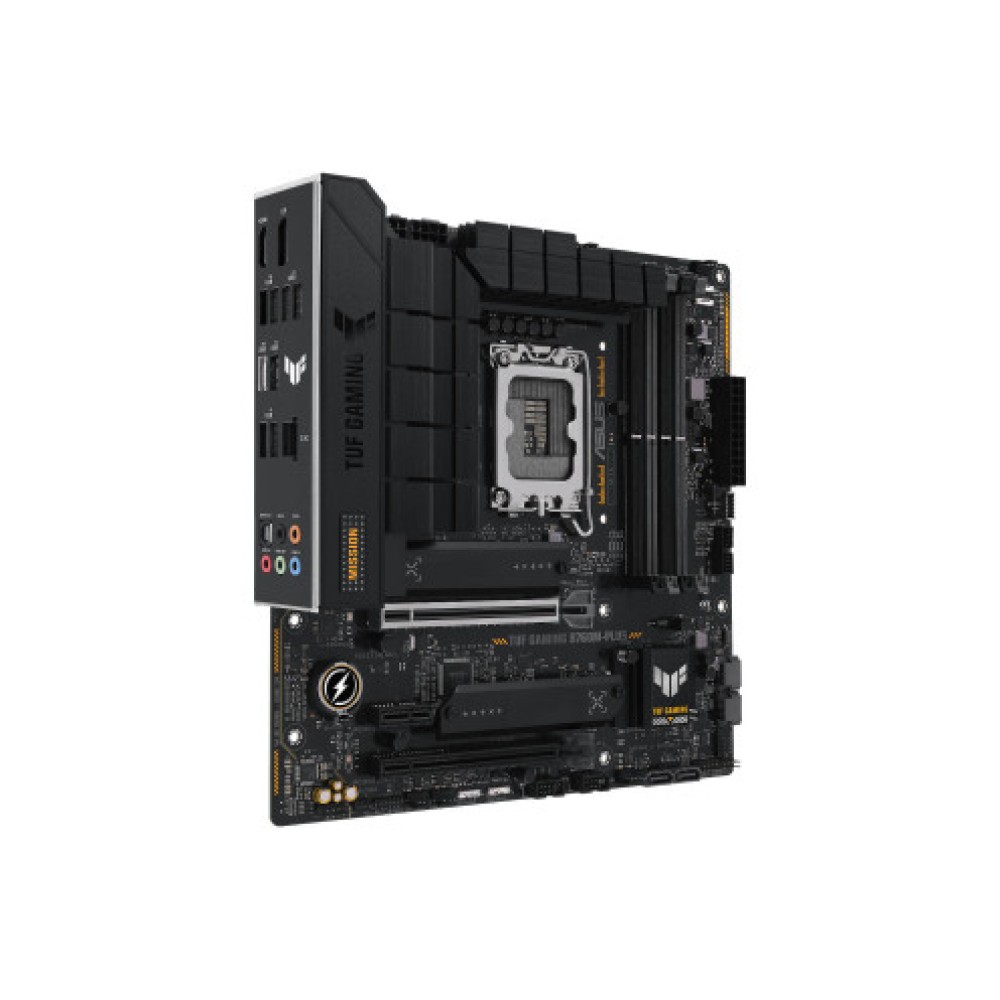

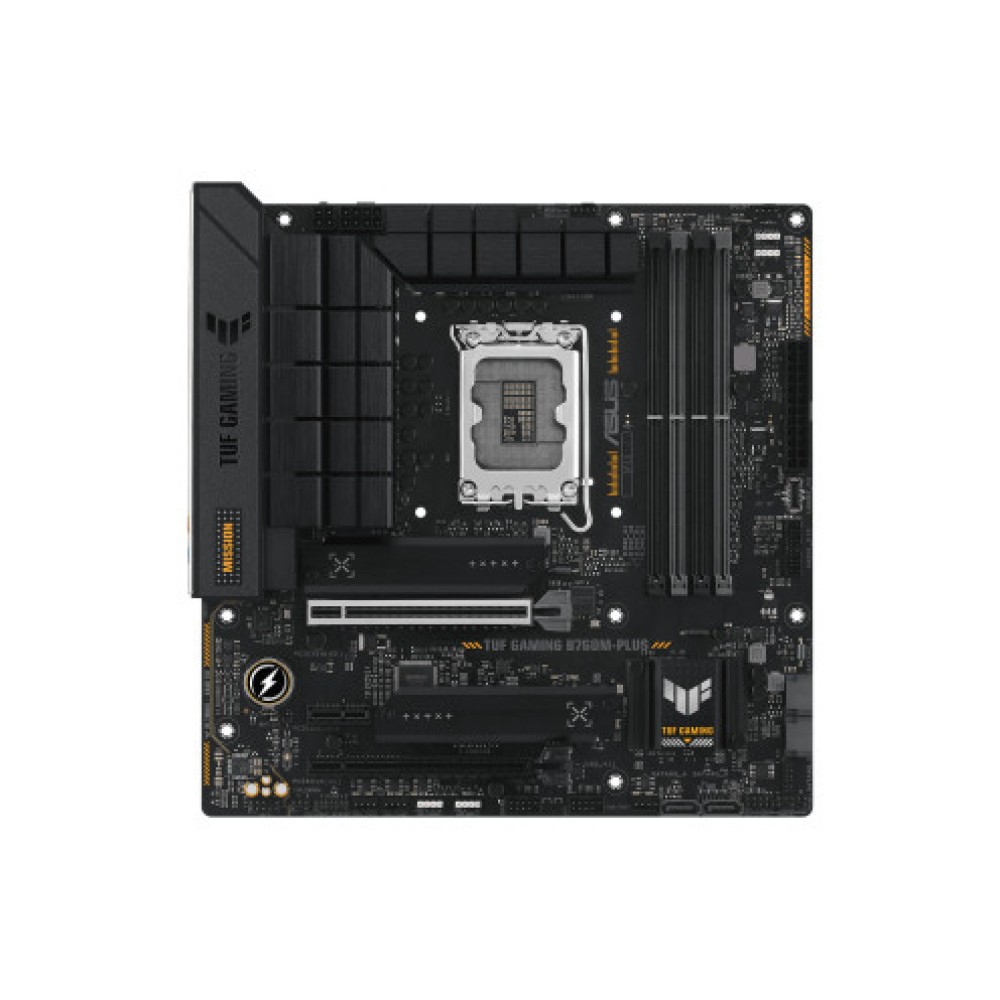

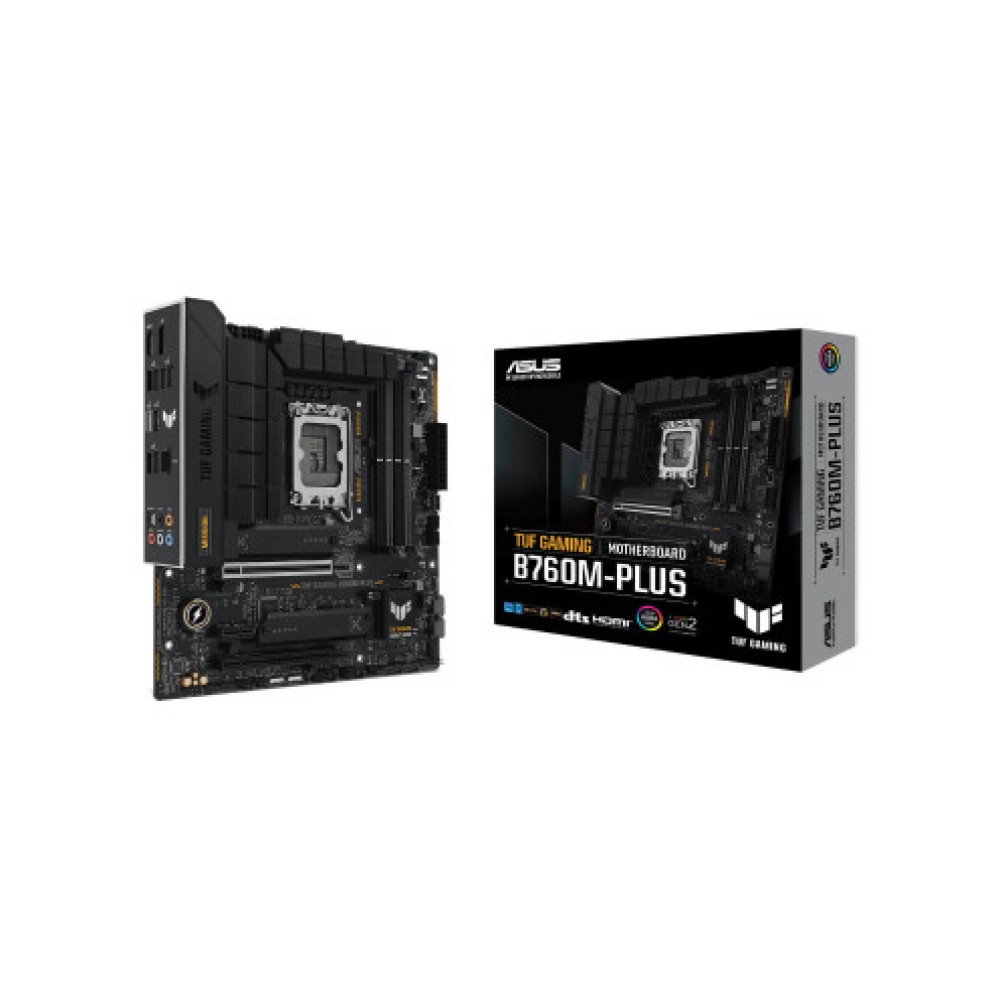

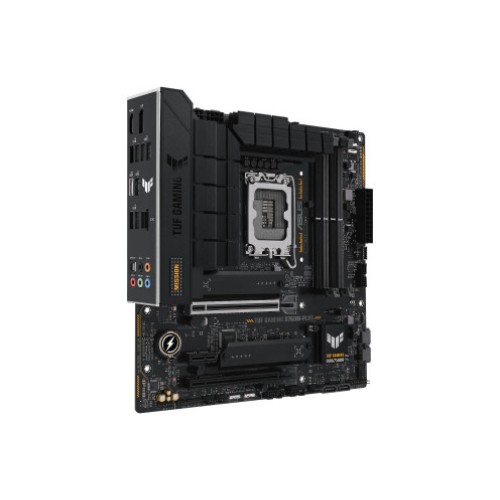

ASUS TUF GAMING B760M-PLUS Motherboard
₪896.00
ASUS TUF GAMING B760M-PLUS Motherboard
Specification
| ModelASUS TUF GAMING B760M-PLUS | Warranty3 Years | DDR5 Slots4 |
| Memory TypeDDR5 | PCI-E x1 Slot1 | PCI-E x16 (x4) Slot1 |
| PCI-E x16 Slot1 | Thunderbolt1 | USB PortsUSB 2.0 \ USB 3.2 \ USB Type-C |
Description
The ASUS TUF GAMING B760M-PLUS motherboard offers high performance and reliability for advanced gaming systems. The board is based on the Intel B760 chipset and supports the LGA 1700 socket, allowing the use of the latest generation processors. The motherboard configuration is Micro ATX, providing flexibility in case selection. Graphics connectivity includes HDMI and DisplayPort, while the networking connections offer 2.5 Gigabit LAN. The board features an integrated sound card with 5 ports and S/PDIF, and provides advanced storage interfaces with 2 M.2 PCIe connections and 4 SATA3 connections, supporting RAID levels 0, 1, 5, and 10. Expansion slots include PCIe 4.0 x16, PCIe 5.0 x16, and PCIe 4.0 x1, with support for USB 3.2, USB 2.0, and USB Type-C. The board supports DDR5 memory with 4 slots and provides advanced connectivity solutions including Thunderbolt. The product comes with a 3-year warranty.
Specifications ASUS TUF GAMING B760M-PLUS Motherboard
General
| Model | ASUS TUF GAMING B760M-PLUS |
|---|---|
| Warranty | 3 Years |
Additional
| DDR5 Slots | 4 |
|---|---|
| Memory Type | DDR5 |
| PCI-E x1 Slot | 1 |
| PCI-E x16 (x4) Slot | 1 |
| PCI-E x16 Slot | 1 |
| Thunderbolt | 1 |
| USB Ports | USB 2.0 \ USB 3.2 \ USB Type-C |
| USB Type-C Port | 2 |
Chipset
| Chipset | B760 |
|---|
Connections
| USB 2.0 | 2 |
|---|---|
| USB 3.2 | 5 |
Expansion
| Expansion Slots | PCIe 4.0 x16, mode x4 \ PCIe 5.0 x16 slot \ PCIe 4.0 x1 |
|---|
Graphics

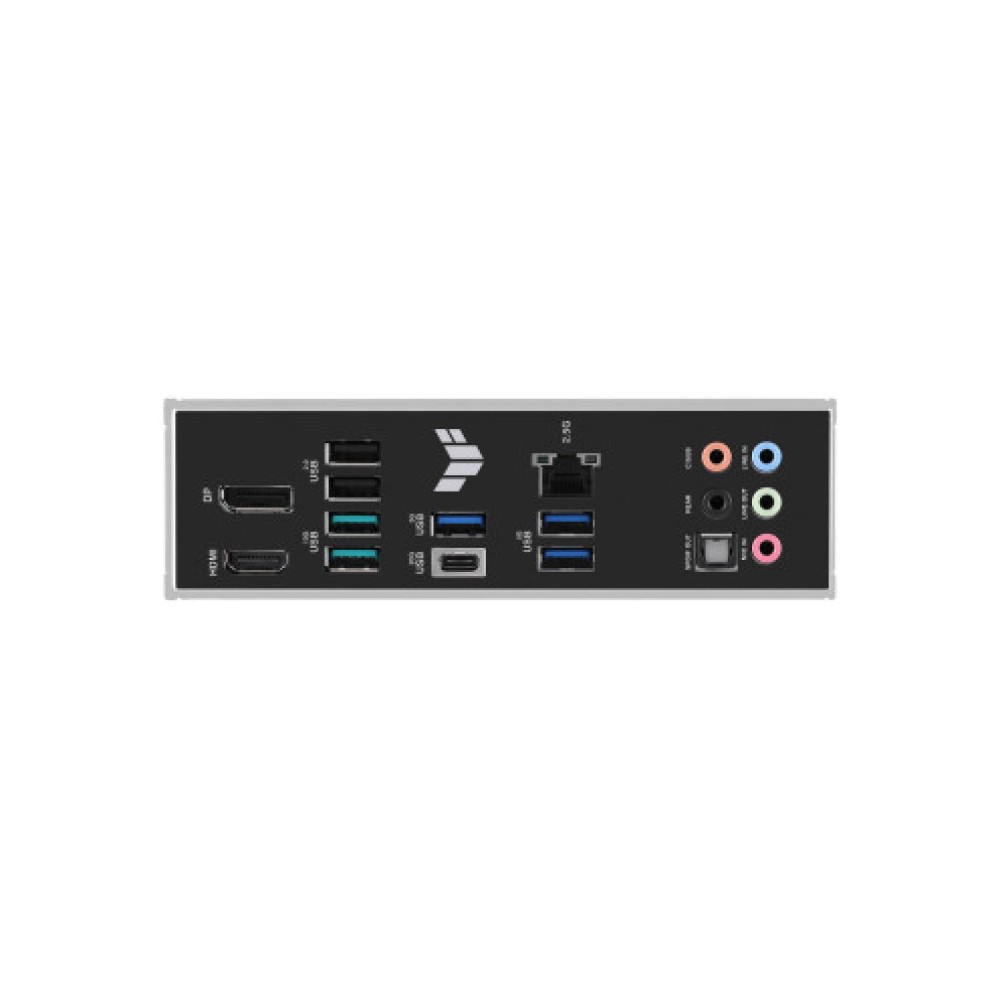

| Graphics Interface | HDMI \ DisplayPort |
|---|
Network
| Communication Interfaces | LAN 2.5 Gigabit |
|---|
Structure
| Board Configuration | Micro ATX |
|---|
Audio
| Integrated Sound Card | 5 ports + S/PDIF |
|---|
Processor
| Processor Socket | 1700 |
|---|
Storage
| M.2 PCIe Connectors | 2 |
|---|---|
| RAID | 0,1,5,10 |
| SATA3 Connectors | 4 |
| Storage Interface | M.2 PCIe |
